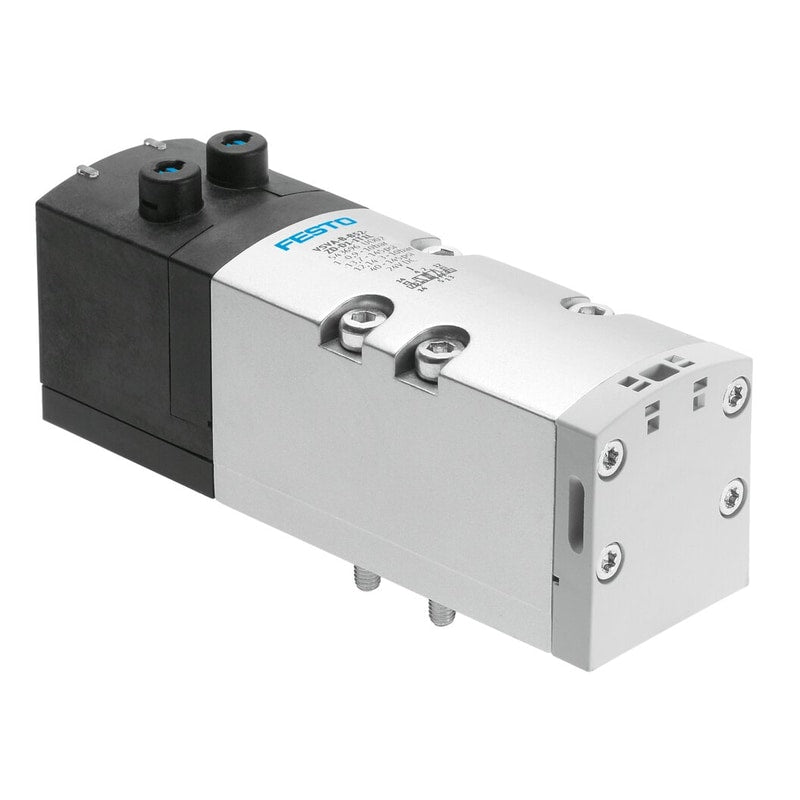

Air solenoid valve
VSVA-B-B52-Z-D1-1T1L
8034836
GTIN 4052568284107
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic connection 1
- Sub-base, size 1 as per ISO 5599-2
- Actuation type
- Electrical
Regular price
$259.76
Unit price
VSVA-B-B52-Z-D1-1T1L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-B52-Z-D1-1T1L
Regular price
$259.76
Unit price
VSVA-B-B52-Z-D1-1T1L is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, bistable |
|---|---|
| Actuation type | Electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1300 l/min |
| Pneumatic working port | G3/8Sub-base, size 1 as per ISO 5599-2 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Degree of protection | NEMA 4IP65 |
| Certification | CSA (OL)c UL us - Recognized (OL) |
| Type code | VSVA |
| Exhaust air function | Via individual sub-baseVia throttle plateWith flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Covered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Any |
| Symbol | 992990 |
| Signal status display | LED |
| Pilot pressure | 3 bar ... 10 bar |
| Flow rate of pneumatic valve | 1800 l/min |
| Flow rate of pneumatic valve on individual sub-base | 1500 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1300 l/min |
| Changeover time | 16 ms |
| Max. positive test pulse with 0 signal | 1400 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.6 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Relative air humidity | 0 - 90 % |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 439 g |
| Electrical connection | as per ISO 5599-2Plug-in |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 1 as per ISO 5599-2 |
| Pilot exhaust air port 82/84 | Not ducted as per standardOptionally:Ducted |
| Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-2 |
| Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-2 |
| Note on materials | RoHS-compliant |
| Seals material | FPMNBRHNBR |
| Housing material | Die-cast aluminumPA |
| Material of screws | Steel, galvanized |
