Sub-base
VMPAL-AP-20-T135-RV
8034564
GTIN 4052568283698
Vendor Festo
Regular price
$33.63
Unit price
VMPAL-AP-20-T135-RV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-AP-20-T135-RV
Regular price
$33.63
Unit price
VMPAL-AP-20-T135-RV is backordered and will ship as soon as it is back in stock.

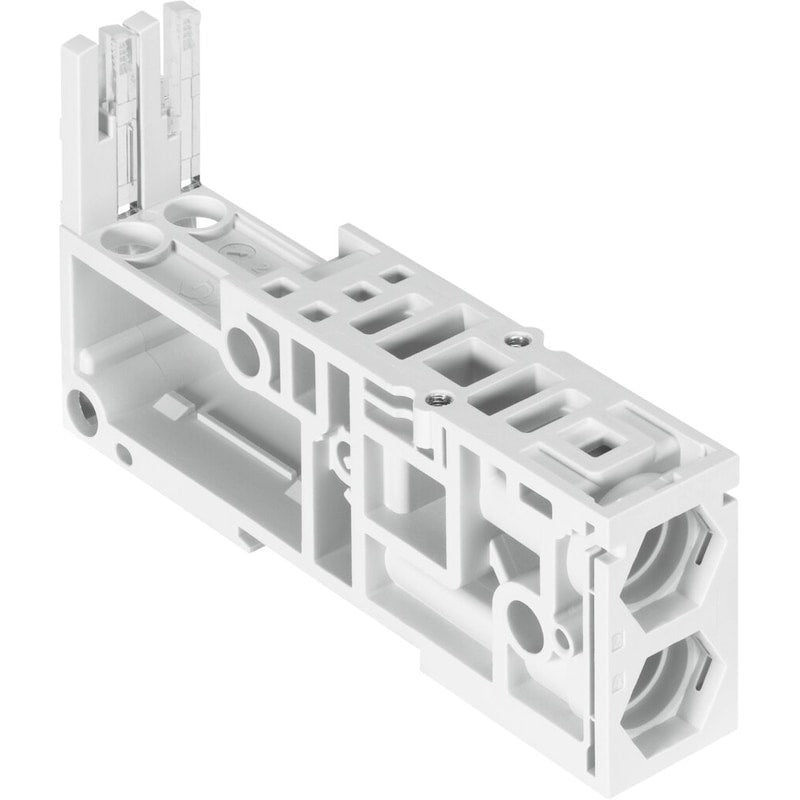

sub-base VMPAL-AP-20-T135-RV Width=20 mm, Width=21,2 mm, Length=107,3 mm, Grid dimension=21,2 mm, Pressure zone separation=135
| Width | 21.2 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 21.2 mm |
| Valve size | 20 mm |
| Pressure zone separation | Ducts 1, 3 and 5 |
| Integrated function | Non-return valve |
| Max. number of valve positions | 1 |
| Flow direction | non reversible |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | 0 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Suitability for vacuum | No |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
