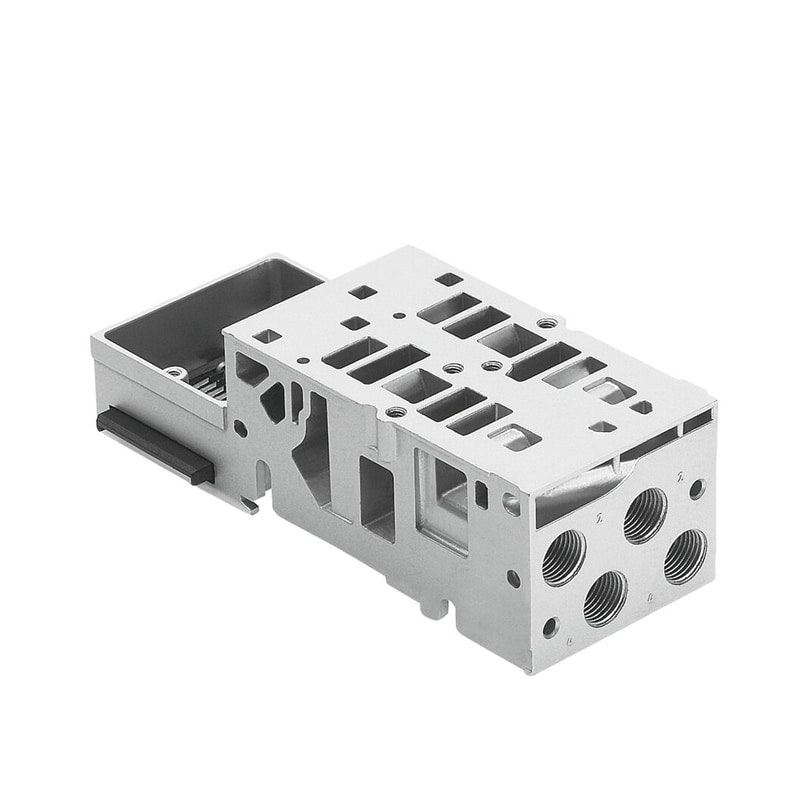

Sub-base
VMPA2-FB-AP-2-1-S0-RV
8034552
GTIN 4052568283612
Vendor Festo
Regular price
$82.00
Unit price
VMPA2-FB-AP-2-1-S0-RV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-FB-AP-2-1-S0-RV
Regular price
$82.00
Unit price
VMPA2-FB-AP-2-1-S0-RV is backordered and will ship as soon as it is back in stock.
sub-base VMPA2-FB-AP-2-1-S0-RV Width=53 mm, Length=107,3 mm, Grid dimension=21 mm, Max. number of valve positions=2, Operating pressure=-0,9 - 10 bar
| Width | 53 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 21 mm |
| Max. number of valve positions | 2 |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 190 g |
| Materials note | Conforms to RoHS |
| Material of connecting plate | Aluminium die cast |
