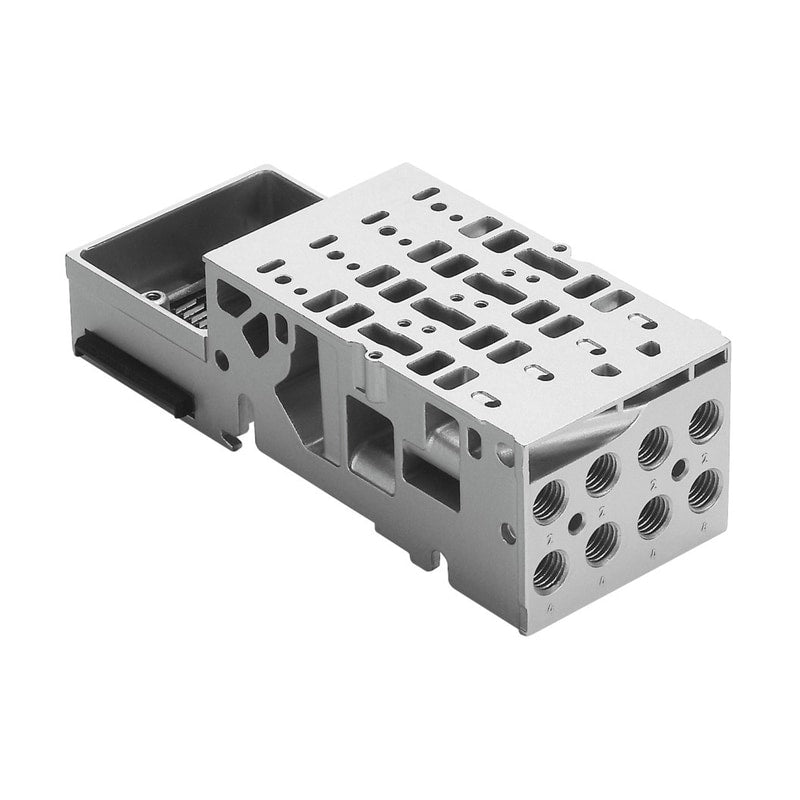

Sub-base
VMPA1-FB-AP-4-1-RV
8034547
GTIN 4052568293918
Vendor Festo
Regular price
$132.34
Unit price
VMPA1-FB-AP-4-1-RV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA1-FB-AP-4-1-RV
Regular price
$132.34
Unit price
VMPA1-FB-AP-4-1-RV is backordered and will ship as soon as it is back in stock.
| Width | 48 mm |
|---|---|
| Length | 107.3 mm |
| Width dimension | 10.5 mm |
| Type code | VMPA1 |
| Max. no. of valve positions | 4 |
| Operating pressure | -0.9 bar ... 10 bar |
| Pilot pressure | 3 bar ... 8 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 190 g |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
