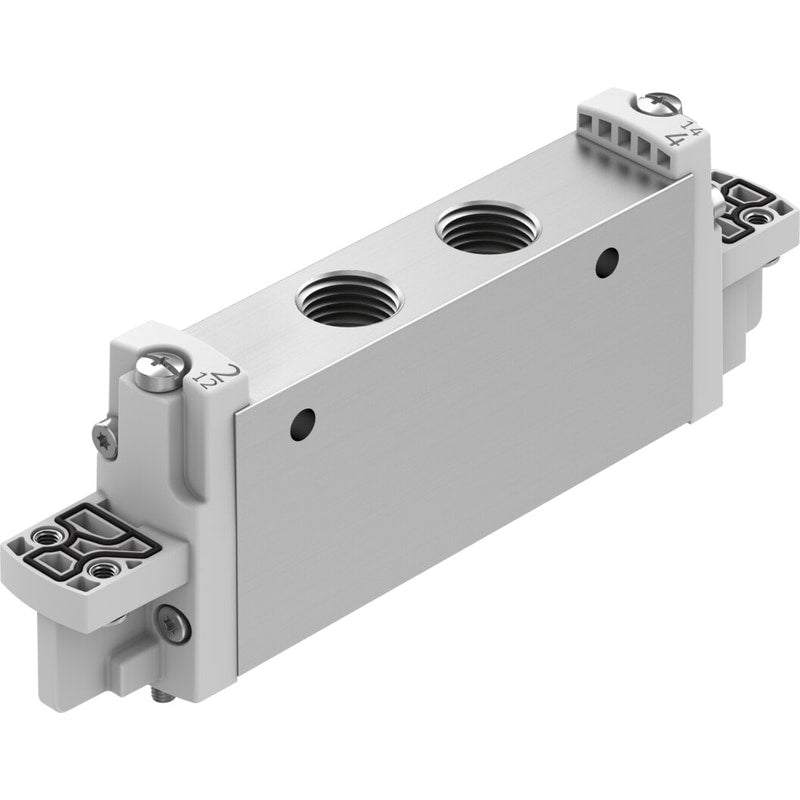

Air solenoid valve
VUVG-L18-T32U-A-G14-P1
8033548
GTIN 4052568429119
Vendor Festo
- Valve function
- 2x3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 970 l/min
- Pneumatic working port
- G1/4
- Actuation type
- Electrical
Regular price
$77.88
Unit price
VUVG-L18-T32U-A-G14-P1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVG-L18-T32U-A-G14-P1
Regular price
$77.88
Unit price
VUVG-L18-T32U-A-G14-P1 is backordered and will ship as soon as it is back in stock.
| Valve function | 2x3/2, open, monostable |
|---|---|
| Pilot interface | as per ISO 15218 |
| Lap | Overlap |
| Pilot pressure MPa | 0.15 MPa ... 0.8 MPa |
| Operating pressure | 0.15 MPa ... 0.8 MPa |
| Actuation type | Electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 970 l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | 1.5 bar ... 8 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | IP65With electrical pilot valve and plug socket |
| Nominal width | 5.7 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |

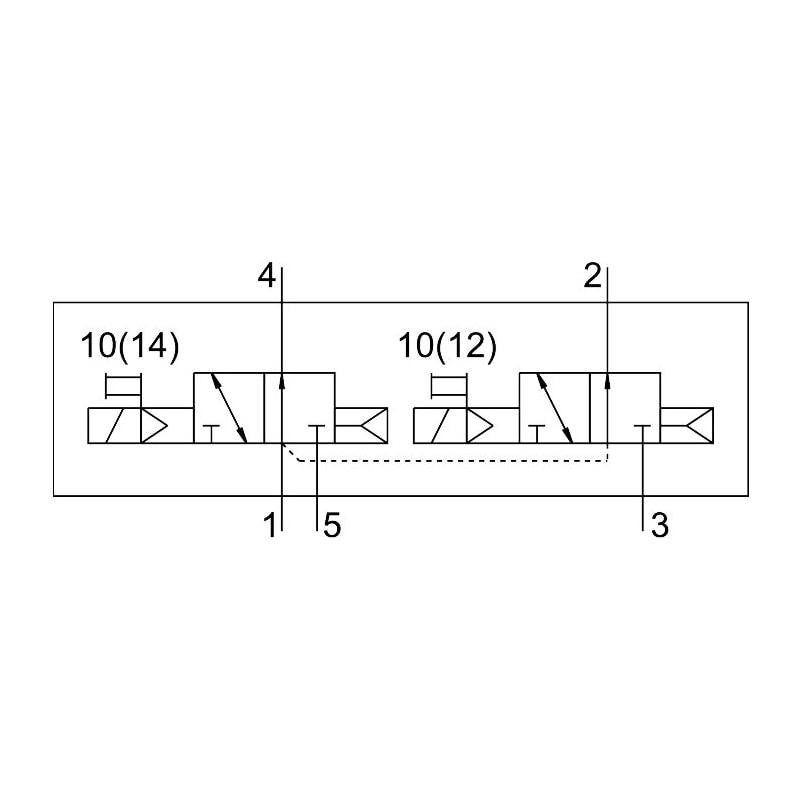

| Symbol | 00992902 |
| Pilot pressure | 1.5 bar ... 8 bar |
| Switching time off | 18 ms |
| On switching time | 13 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -5 °C ... 60 °C |
| Ambient temperature | -5 °C ... 60 °C |
| Product weight | 140 g |
| Electrical connection | Via electric pilot valve |
| Type of mounting | On terminal stripWith through-holeOptionally: |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRNBR |
| Housing material | Wrought aluminum alloy |
