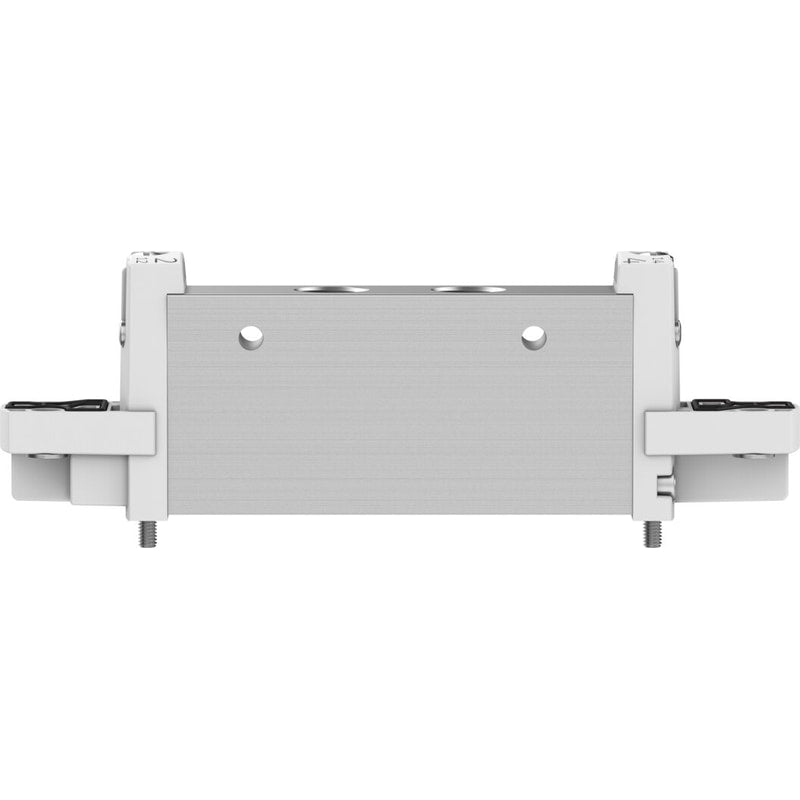

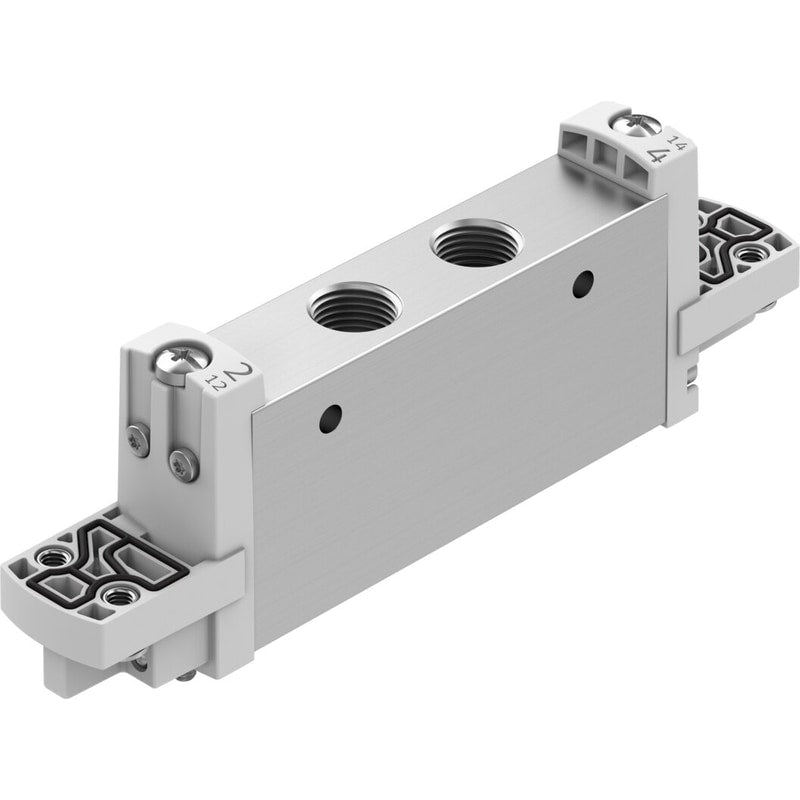

Air solenoid valve
VUVG-L14-T32C-A-G18-P1
8033523
GTIN 4052568428860
Vendor Festo
- Valve function
- 2x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 560 l/min
- Pneumatic working port
- G1/8
- Actuation type
- Electrical
Regular price
$67.77
Unit price
VUVG-L14-T32C-A-G18-P1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVG-L14-T32C-A-G18-P1
Regular price
$67.77
Unit price
VUVG-L14-T32C-A-G18-P1 is backordered and will ship as soon as it is back in stock.
| Valve function | 2x3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Valve size | 14mm |
| Standard nominal flow rate | 560l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | 0.15MPa |
| Operating pressure | 1.5bar |
| Structural design | Piston gate valve |
| Reset method | Pneumatic spring |
| Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 |
| Nominal width | 4.6mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |

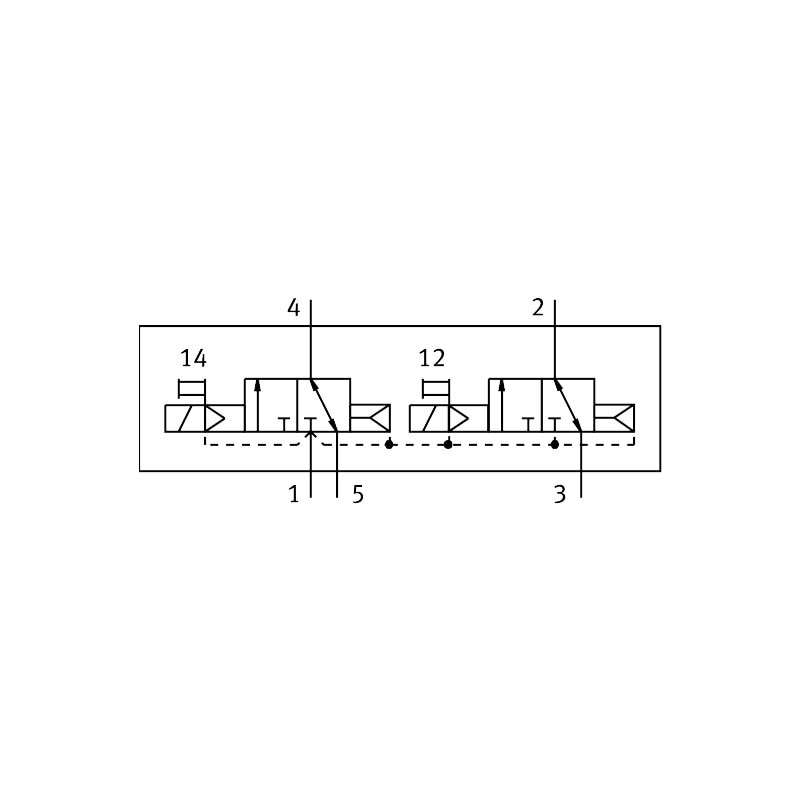

| Symbol | 00992904 |
| Lap | Overlap |
| Pilot pressure MPa | 0.15MPa |
| Pilot pressure | 1.5bar |
| Suitability for vacuum | no |
| Switching time off | 18ms |
| On switching time | 11ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700µs |
| Max. negative test pulse on 1 signal | 900µs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C |
| Ambient temperature | -5°C |
| Product weight | 65g |
| Electrical connection | Via electric pilot valve |
| Type of mounting | Optionally: |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 |
| Pilot interface | as per ISO 15218 |
| Note on materials | RoHS-compliant |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
