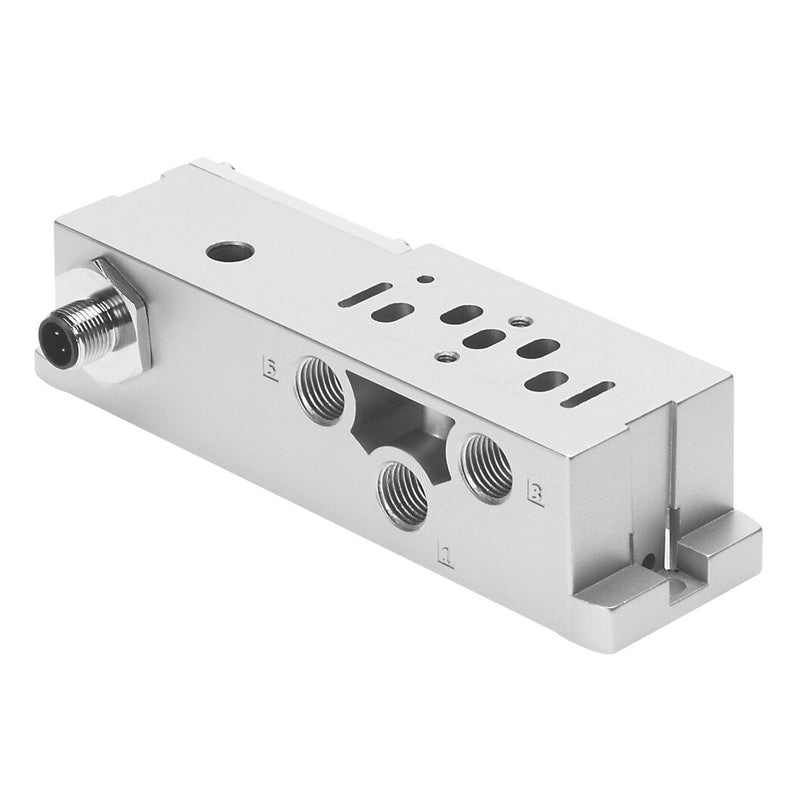

Sub-base
VABS-S4-1S-G14-B-R3-EX1E
8033158
GTIN 4052568282851
Vendor Festo
Regular price
$109.25
Unit price
VABS-S4-1S-G14-B-R3-EX1E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-S4-1S-G14-B-R3-EX1E
Regular price
$109.25
Unit price
VABS-S4-1S-G14-B-R3-EX1E is backordered and will ship as soon as it is back in stock.
| Width | 26 mm |
|---|---|
| Type code | VABS |
| Based on norm | ISO 15407-2 |
| Mounting position | Any |
| Pilot air supply port | Internal |
| Operating pressure | -0.9 bar ... 10 bar |
| DC operating voltage range | 24 V |
| Surge resistance | 0.8 kV |
| Current rating at 40°C | 0.0833333333333333 |
| Contamination level | 3 |
| ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T3 X Gc |
| Explosive ambient temperature | -5°C <= Ta <= +50°C |
| Explosion prevention and protection | Zone 2 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | In mounted stateIP65NEMA 4 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 302 g |
| Type of mounting | With through-holeas per ISO 15407-2 |
| Note on materials | RoHS-compliant |
