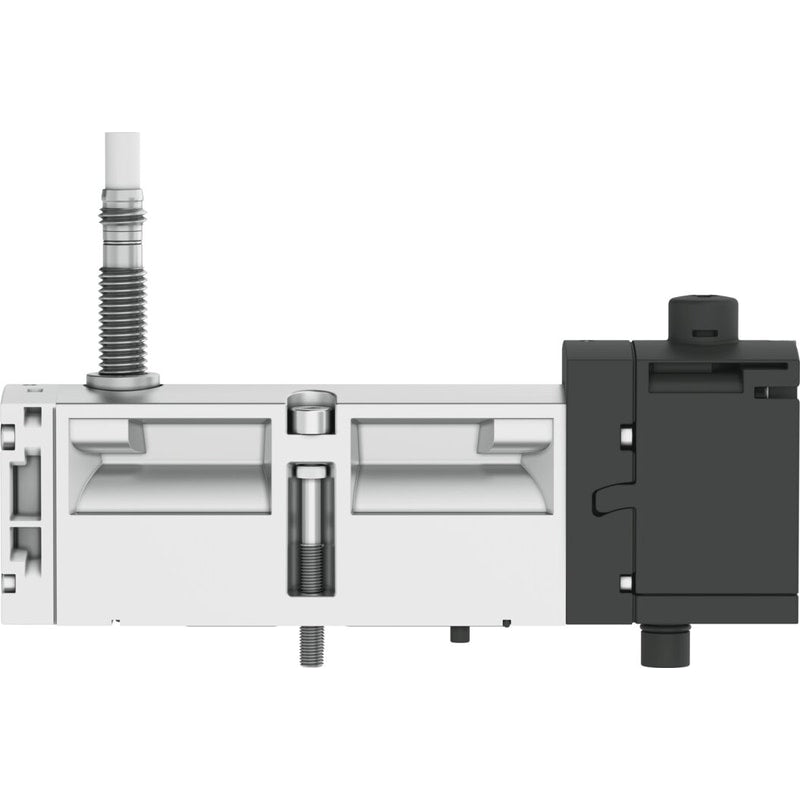

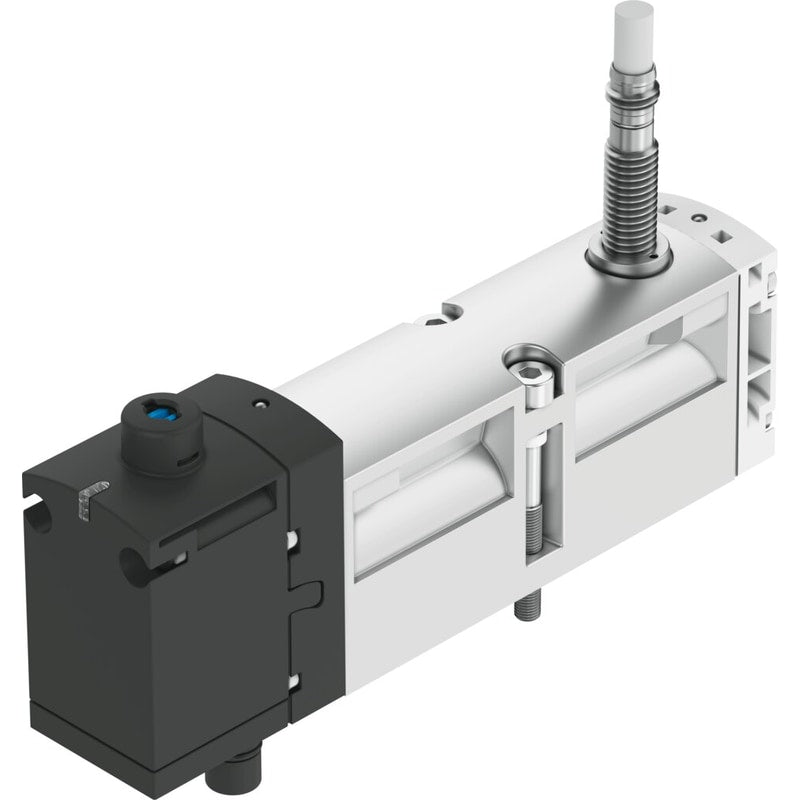

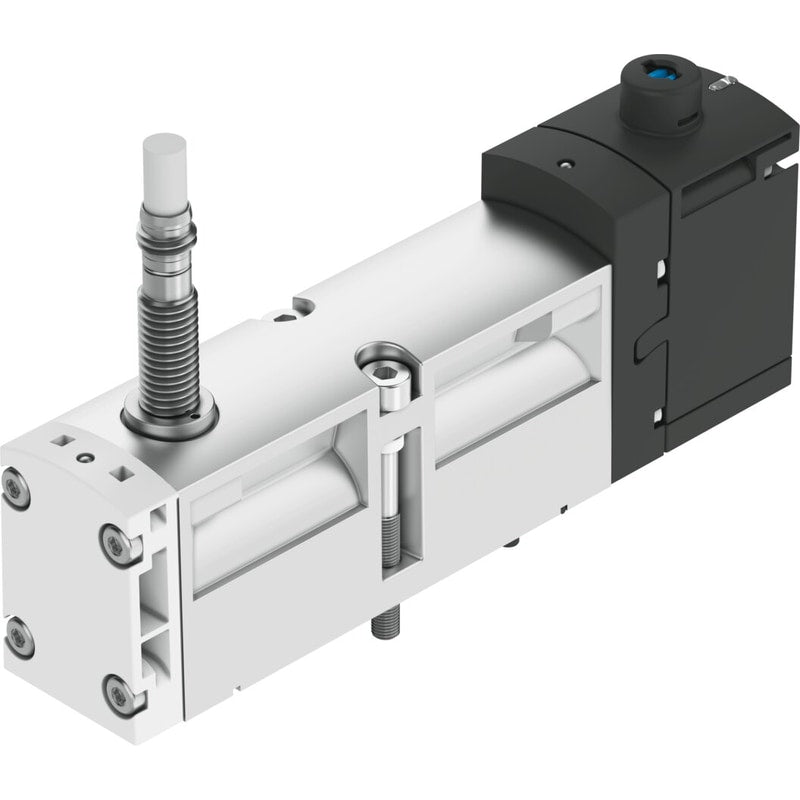

Air solenoid valve
VSVA-B-M52-MZ-A1-1T1L-APP
8033073
GTIN 4052568282738
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-2
- Actuation type
- Electrical
Regular price
$301.65
Unit price
VSVA-B-M52-MZ-A1-1T1L-APP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-M52-MZ-A1-1T1L-APP
Regular price
$301.65
Unit price
VSVA-B-M52-MZ-A1-1T1L-APP is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| KC characters | KC EMC |
| Actuation type | Electrical |
| Width | 26 mm |
| Standard nominal flow rate | 1100 l/min |
| Pneumatic working port | Sub-base, size 26 mm as per ISO 15407-2G1/4 |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65NEMA 4 |
| Certification | CSA (OL)c UL us - Recognized (OL)C-Tick |
| Nominal width | 9 mm |
| Type code | VSVA |
| Exhaust air function | With flow control optionVia individual sub-baseVia throttle plate |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Covered |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Any |
| Symbol | 992813 |
| Measuring principle | Inductive |
| Signal status display | LED |
| Switching position sensing | Normal position with sensor |
| Sensor switching status indication | LED |
| Pilot pressure | 3 bar ... 10 bar |
| Flow rate of pneumatic valve | 1400 l/min |
| Flow rate of pneumatic valve on individual sub-base | 1200 l/min |
| Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1350 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100 l/min |
| Switching time off | 54 ms |
| On switching time | 20 ms |
| Pneumatic valve - sensor ON switching time | 60 ms |
| Pneumatic valve - sensor switching time off | 11 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 1200 µs |
| Max. negative test pulse on 1 signal | 1100 µs |
| Nominal operating voltage DC | 24 V |
| Switching output | PNP |
| Coil characteristics | 24 V DC: 1.6 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Temperature of medium | -5 °C ... 50 °C |
| Relative air humidity | 0 - 90 % |
| Noise level | 85 dB(A) |
| Ambient temperature | -5 °C ... 50 °C |
| Max. tightening torque for valve mounting | 1.8 Nm ... 2.2 Nm |
| Product weight | 264 g |
| DC sensor operating voltage range | 10 V ... 30 V |
| Sensor short circuit protection | Pulsed |
| Sensor idle current | ≤ 10 mA |
| Max. output current, sensor | 200 mA |
| Sensor max. switching frequency | 5000 Hz |
| Sensor residual ripple | ± 10 % |
| Sensor voltage drop | ≤ 2 V |
| Electrical connection | as per ISO 15407-2Plug4-pin |
| Sensor connection | M8x1Plug3-pin |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pilot exhaust air port 82/84 | Optionally:Not ductedDucted |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 |
| Note on materials | RoHS-compliant |
| Seals material | NBRFPM |
| Housing material | PADie-cast aluminum |
| Material of screws | Steel, galvanized |
| Switching element function | N/C contact |
