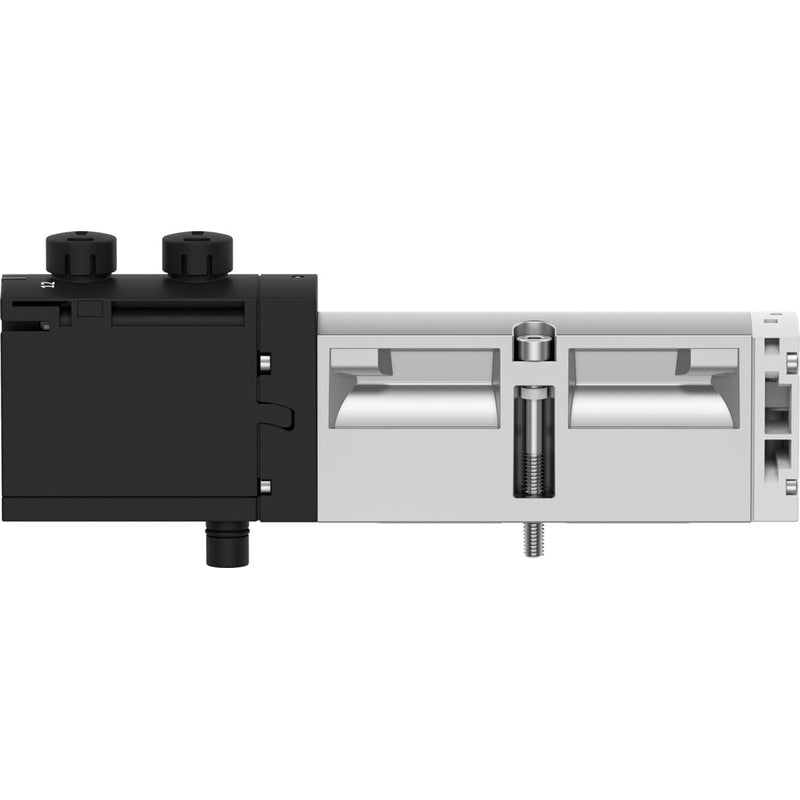

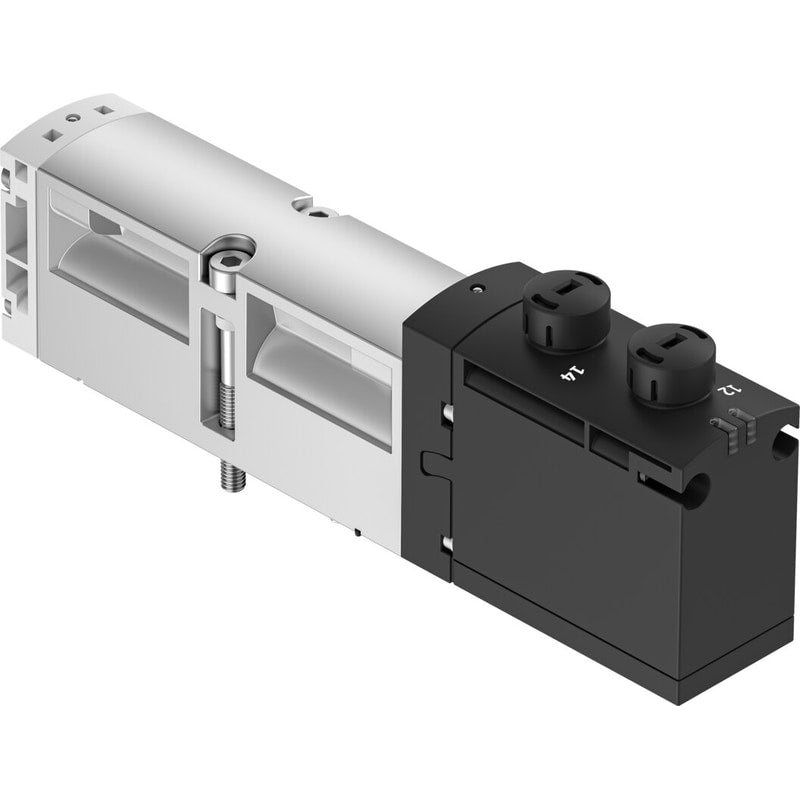

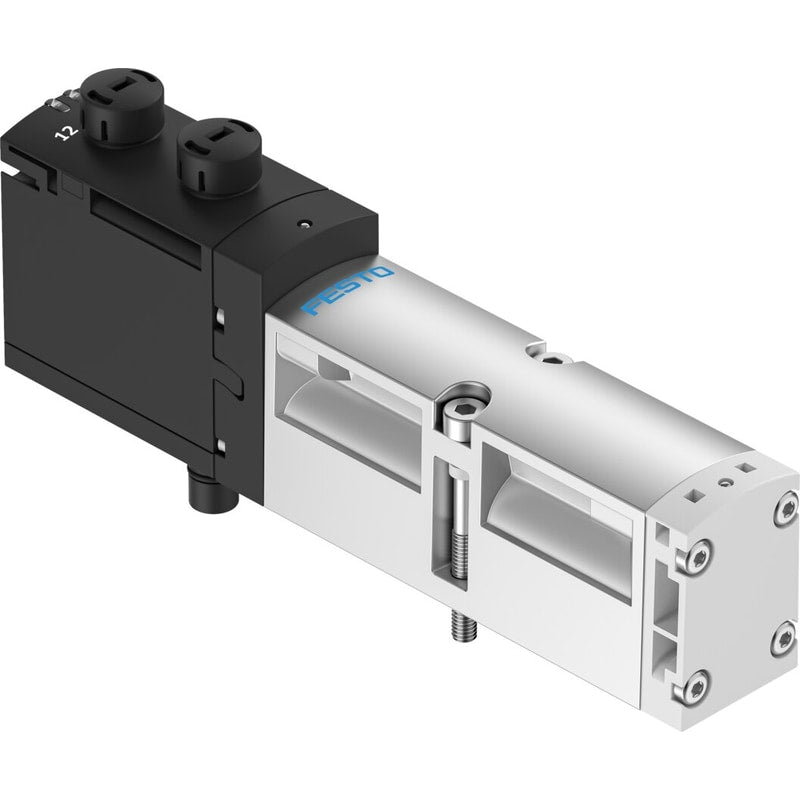

Air solenoid valve
VSVA-B-T32C-AZH-A1-1T1L
8033036
GTIN 4052568282363
Vendor Festo
- Valve function
- 2x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-2
- Actuation type
- Electrical
Regular price
$215.81
Unit price
VSVA-B-T32C-AZH-A1-1T1L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-T32C-AZH-A1-1T1L
Regular price
$215.81
Unit price
VSVA-B-T32C-AZH-A1-1T1L is backordered and will ship as soon as it is back in stock.
| Valve function | 2x3/2, closed, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Width | 26 mm |
| Standard nominal flow rate | 900 l/min |
| Pneumatic working port | Sub-base, size 26 mm as per ISO 15407-1Size 01 sub-base as per VDMA 24563G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | 3 bar ... 10 bar |
| Design | Piston gate valve |
| Degree of protection | IP65NEMA 4 |
| Certification | c UL us - Recognized (OL)CSA (OL) |
| Type code | VSVA |
| Exhaust air function | With flow control optionVia individual sub-baseVia throttle plate |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | ExternalInternal |
| Flow direction | Non-reversible |

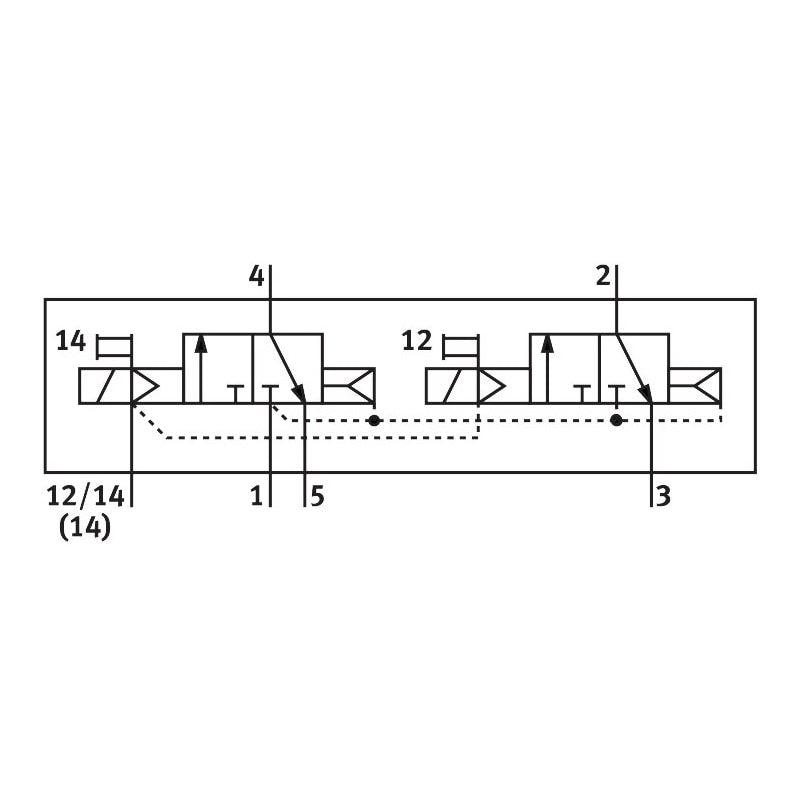

| Symbol | 991817 |
| Signal status display | LED |
| Pilot pressure | 3 bar ... 10 bar |
| Flow rate of pneumatic valve | 1250 l/min |
| Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1150 l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 900 l/min |
| Switching time off | 38 ms |
| On switching time | 20 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 1500 µs |
| Max. negative test pulse on 1 signal | 1200 µs |
| Nominal operating voltage DC | 24 V |
| Coil characteristics | 24 V DC: 1.3 W |
| Surge resistance | 2.5 kV |
| Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Relative air humidity | 0 - 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 335 g |
| Electrical connection | as per ISO 15407-2Plug-in |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pilot exhaust air port 82/84 | Optionally:Not ducted as per standardDucted |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 |
| Note on materials | RoHS-compliant |
| Seals material | NBRFPMHNBR |
| Housing material | PADie-cast aluminum |
| Material of screws | Steel, galvanized |
