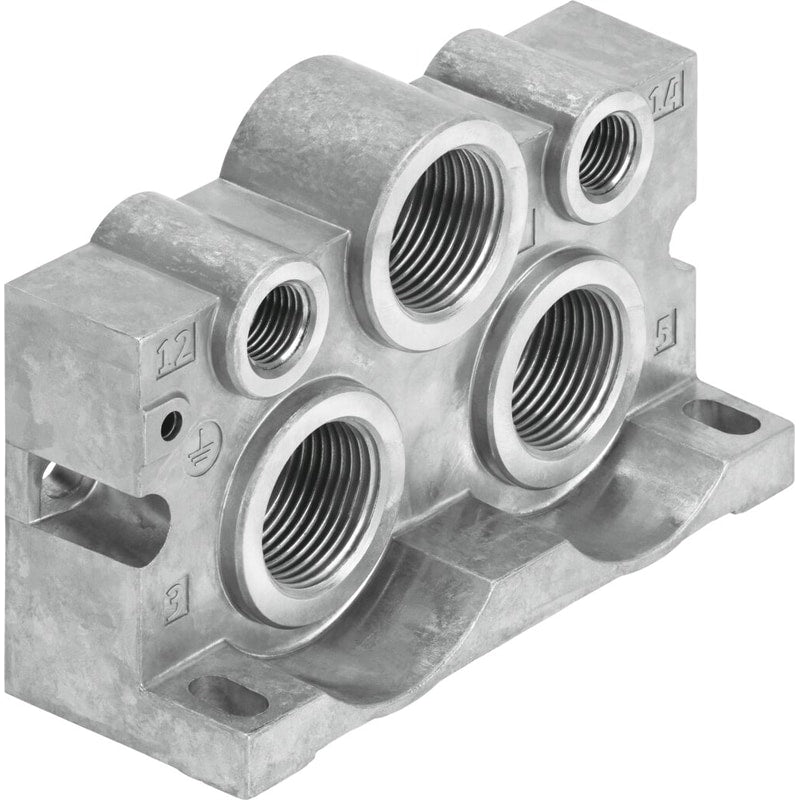

End plate
VABE-S1-2R-N34
8032675
GTIN 4052568428853
Vendor Festo
Regular price
$34.87
Unit price
VABE-S1-2R-N34 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABE-S1-2R-N34
Regular price
$34.87
Unit price
VABE-S1-2R-N34 is backordered and will ship as soon as it is back in stock.
| Width | 44mm |
|---|---|
| Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 |
| Operating pressure | 0MPa |
| Operating pressure | 0bar |
| Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C |
| Temperature of medium | -10°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C |
| Product weight | 370g |
| Type of mounting | with through-hole for M6 screw |
| Pneumatic connection 1 | 3/4 NPT |
| Pneumatic connection 3 | 3/4 NPT |
| Pneumatic connection 5 | 3/4 NPT |
| Note on materials | RoHS-compliant |
| End plate material | Die-cast aluminum |
