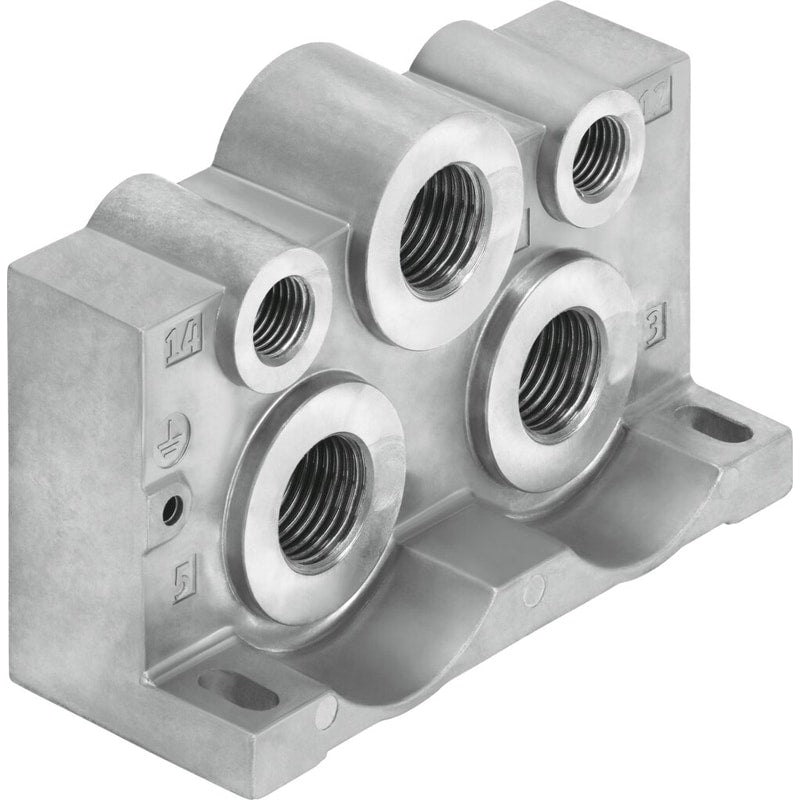

End plate
VABE-S1-1LZ-G12
8032660
GTIN 4052568428709
Vendor Festo
Regular price
$29.05
Unit price
VABE-S1-1LZ-G12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABE-S1-1LZ-G12
Regular price
$29.05
Unit price
VABE-S1-1LZ-G12 is backordered and will ship as soon as it is back in stock.
| Width | 44 mm |
|---|---|
| Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 |
| Operating pressure | 0 bar ... 10 bar |
| Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Temperature of medium | -10 °C ... 50 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 50 °C |
| Product weight | 400 g |
| Type of mounting | with through-hole for M6 screw |
| Pilot air port 12/14 | G¼ |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 |
| Pneumatic connection 5 | G1/2 |
| Note on materials | RoHS-compliant |
| End plate material | Die-cast aluminum |
