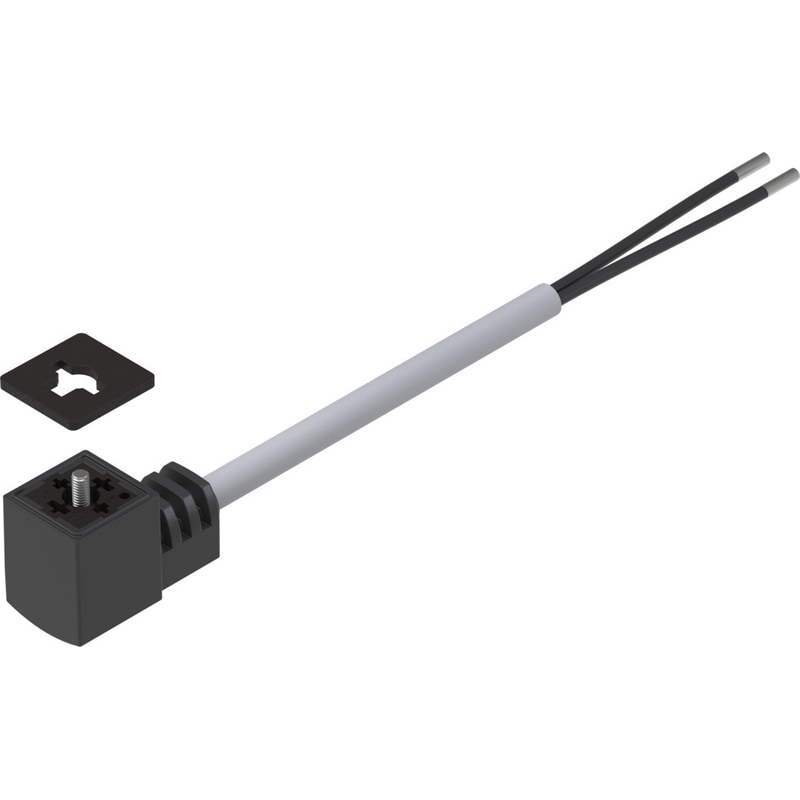

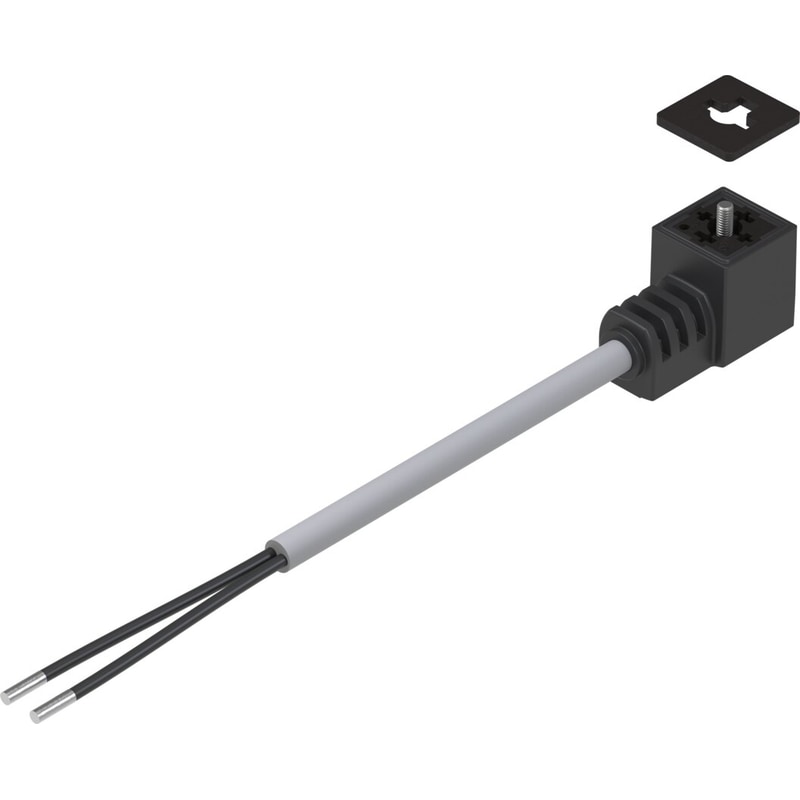

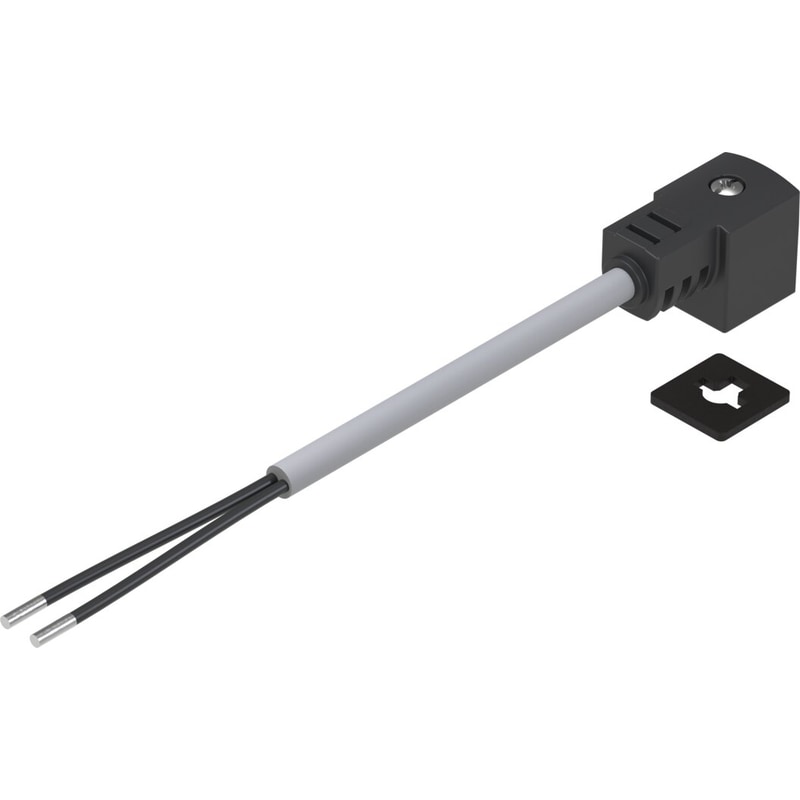

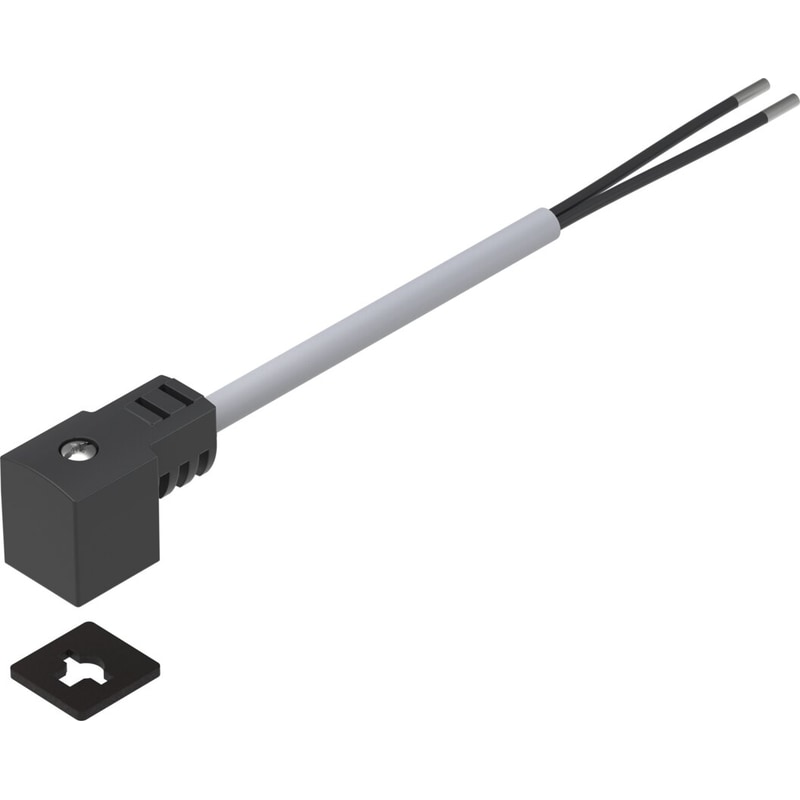

Connecting cable
NEBV-C1SW2L-P-K-5-N-LE2-S9
8032626
GTIN 4052568428624
Vendor Festo
- Electrical connection 1, connection type
- Socket, narrow
- Electrical connection 1, connection technology
- Connection diagram type C as per EN 175301-803
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 5 m
Regular price
$18.30
Unit price
NEBV-C1SW2L-P-K-5-N-LE2-S9 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-C1SW2L-P-K-5-N-LE2-S9
Regular price
$18.30
Unit price
NEBV-C1SW2L-P-K-5-N-LE2-S9 is backordered and will ship as soon as it is back in stock.
| Type code | NEBV |
|---|---|
| Electrical connection 1, information on cable outlet | Can be rotated through 180° |
| Signal status display | LED yellow |
| Additional functions | Protective circuit |
| Cable designation | Without label holder |
| Contact durability | 50 |
| Product weight | 230 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket, narrow |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Connection diagram type C as per EN 175301-803 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | On air solenoid valve with M2.5 central screw |
| Electrical connection for input 1, connection pattern | 995797 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 20.4 V ... 26.4 V |
| Nominal operating voltage DC | 24 V |
| Surge resistance | 2.4 kV |
| Reverse polarity protection | Bipolar |
| Protective earth connection | Not available |
| Cable length | 5 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, flexible cable installation | ≥ 52 mm |
| Cable diameter | 5.2 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable design | 2 x 0.75 mm² |
| Nominal conductor cross section | 0.75 mm² |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 °C ... 70 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Gray |
| Housing material | TPE-U(PU) |
| Housing colour | Black |
| Material of screws | Stainless steel |
| Seals material | HNBR |
| Material of pin contacts | Copper alloy, tin-plated |
| Insulating sheath material | PVC |
