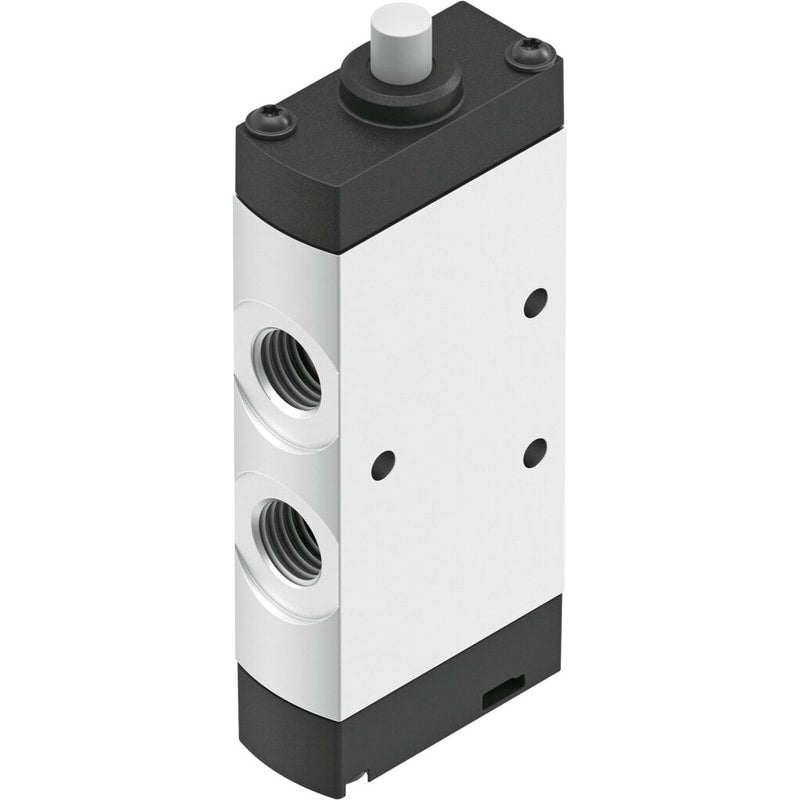

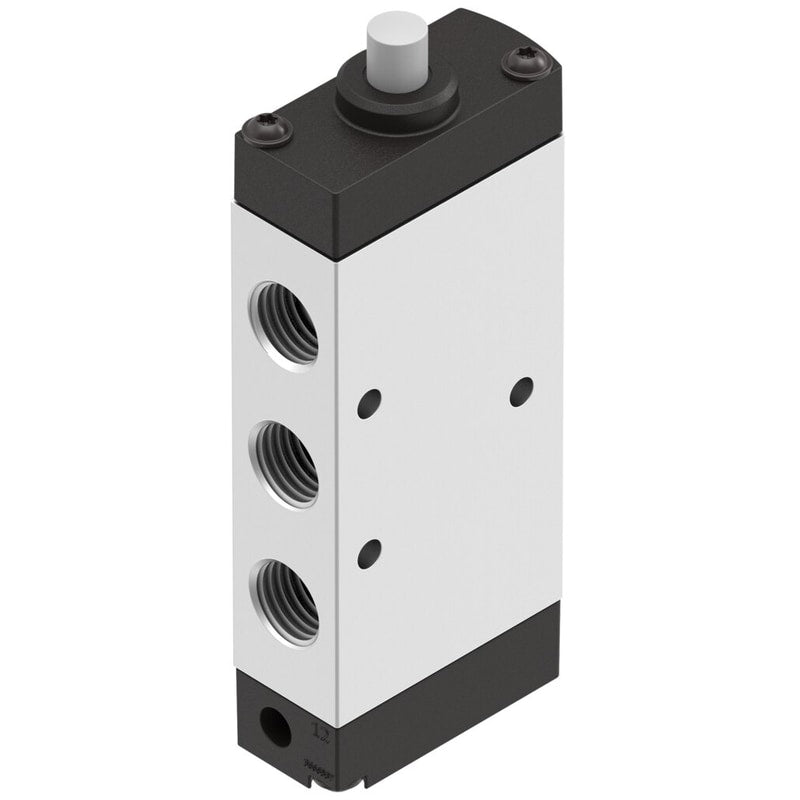

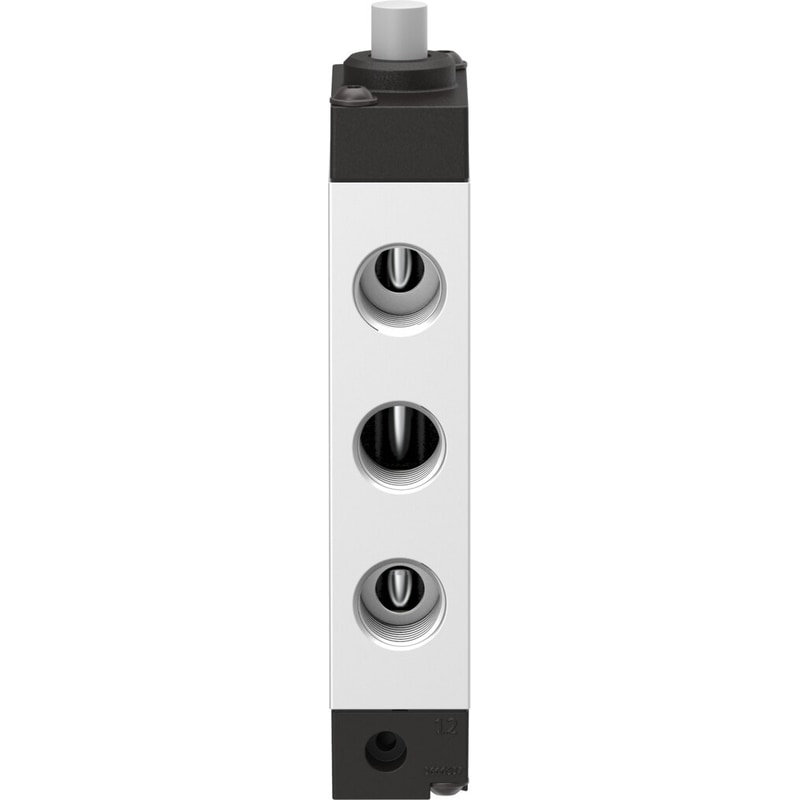

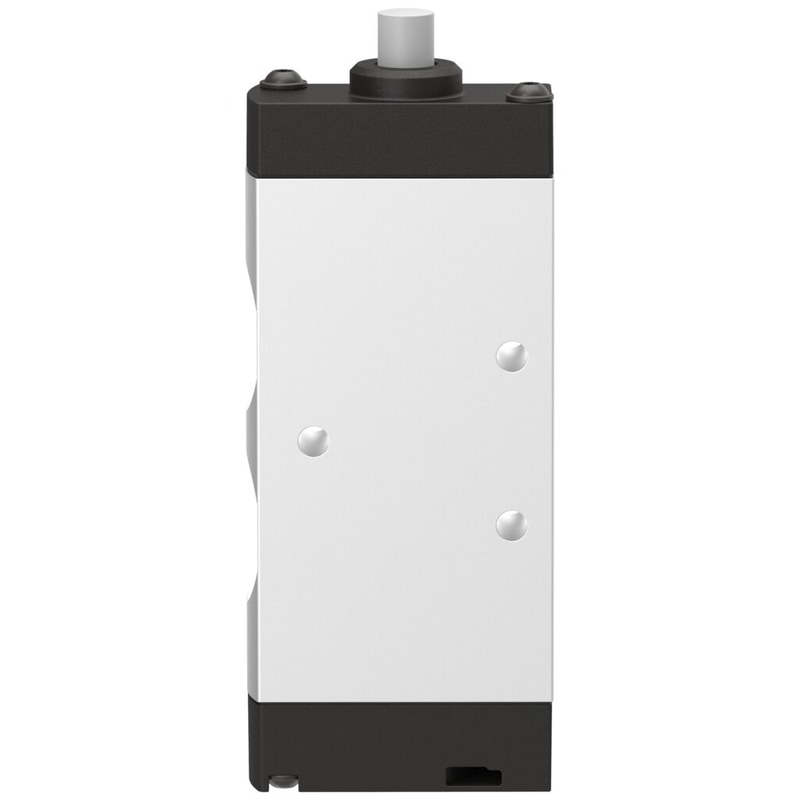

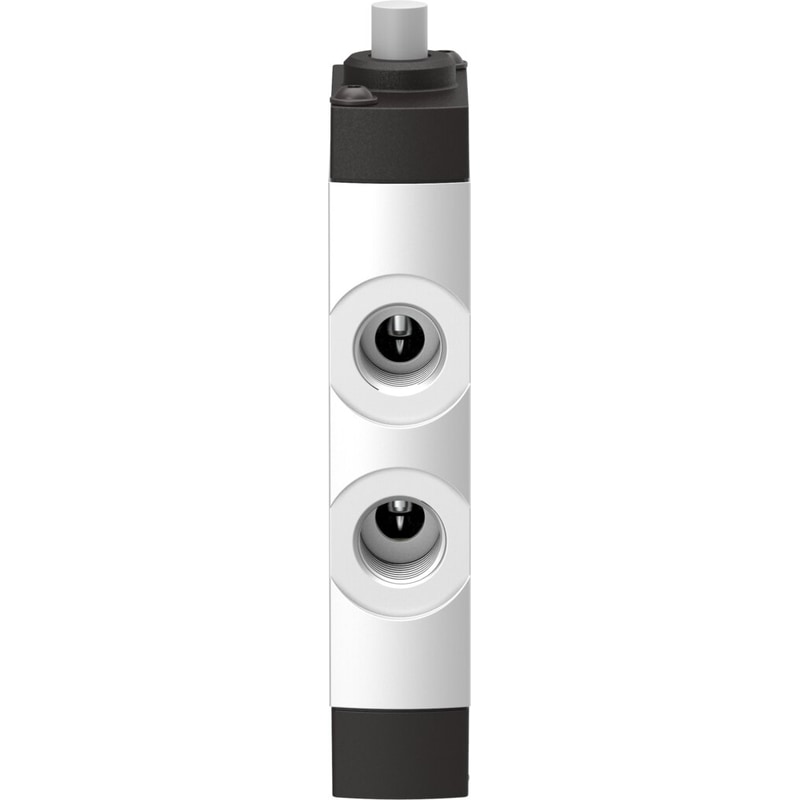

VMEF-S-M52-E-G14
8031304
Vendor Festo
Regular price
$197.73
Unit price
VMEF-S-M52-E-G14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMEF-S-M52-E-G14
Regular price
$197.73
Unit price
VMEF-S-M52-E-G14 is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | -0.95 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Nominal width | 7 mm |
| Type code | VMEF |
| Application note | Do not use as mechanical stop |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |
| Symbol | 992217 |
| Max. switching frequency | 3 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 177 g |
| Type of mounting | With through-hole |
| Pilot air port 12/14 | M5 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Seals material | NBR |
| Housing material | AnodizedWrought aluminum alloy |
