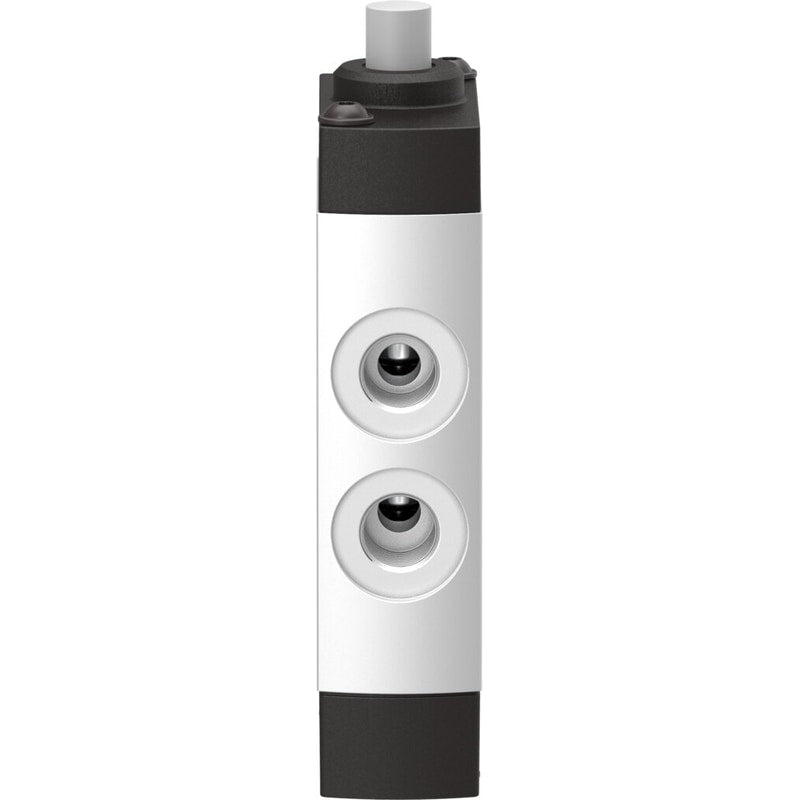

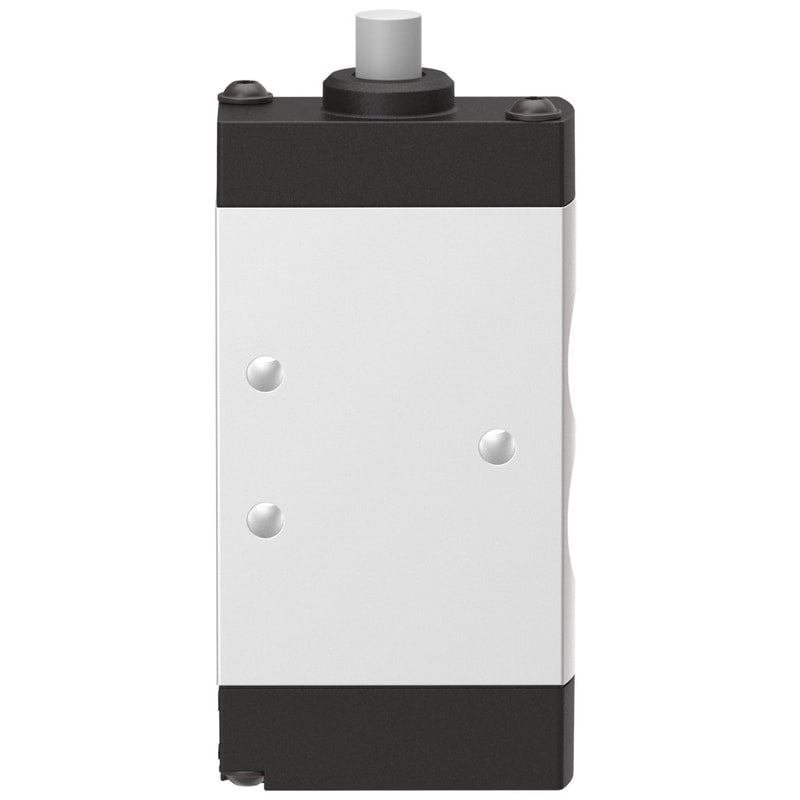

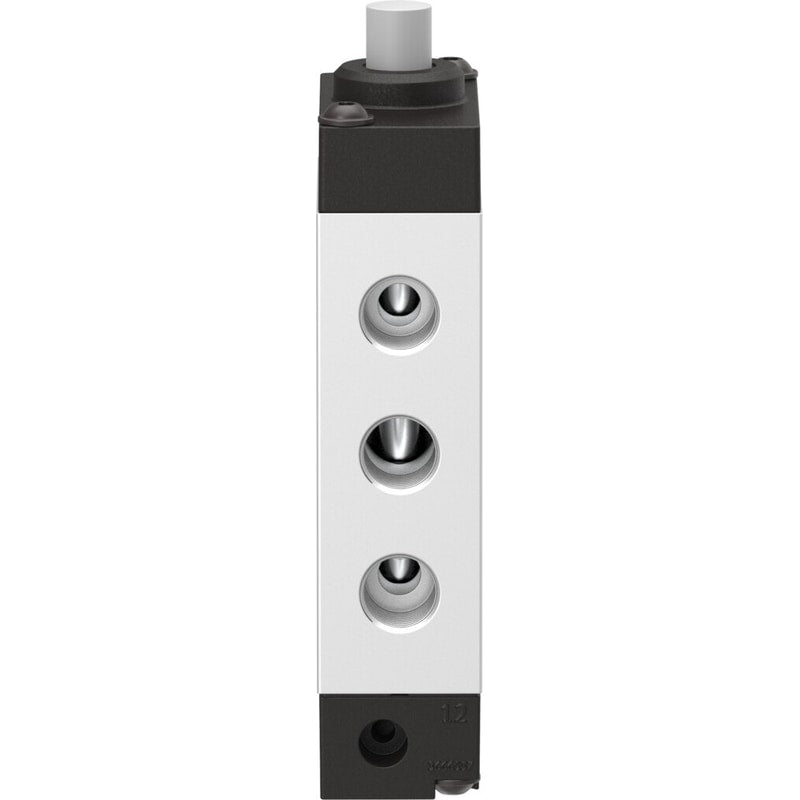

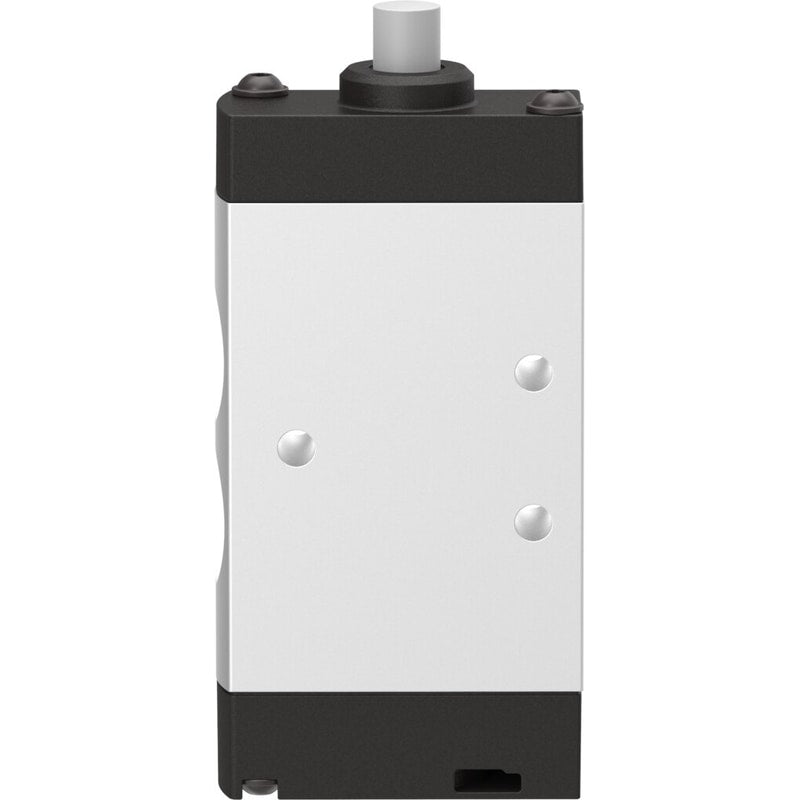

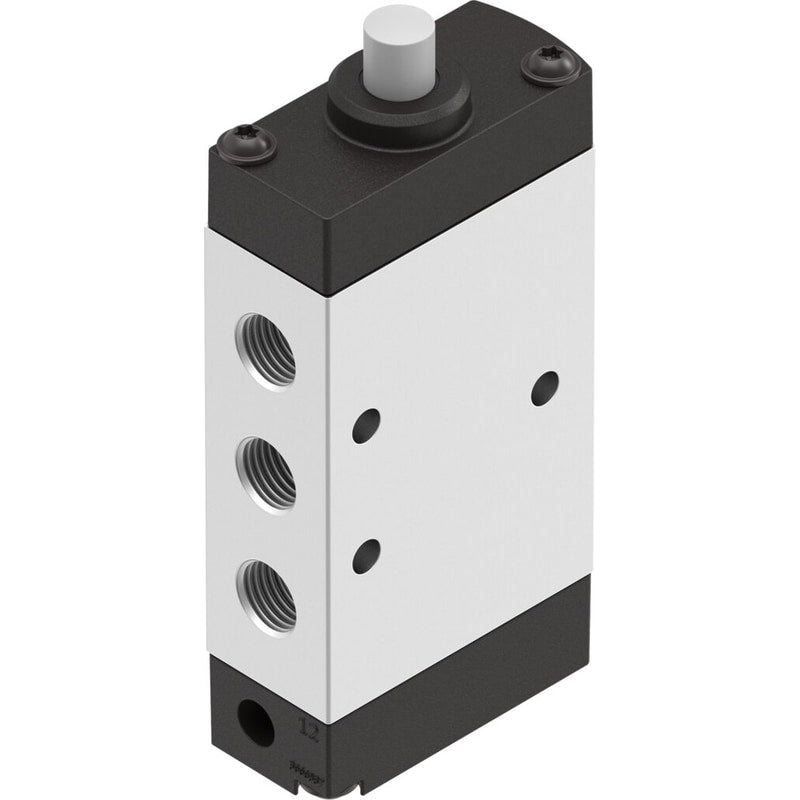

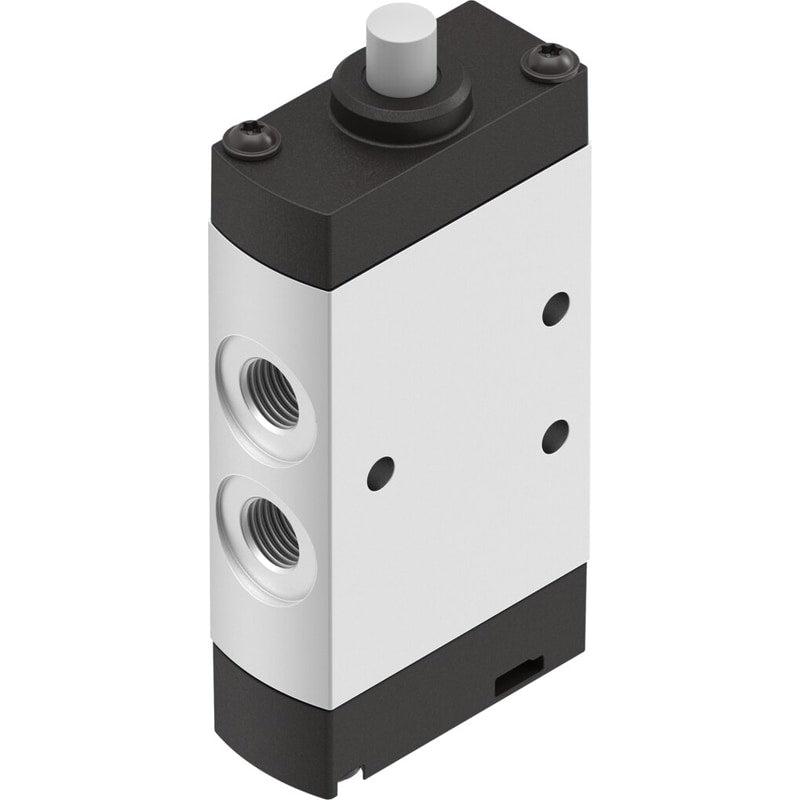

Stem actuated valve
VMEF-S-M52-M-G18
8031297
GTIN 4052568293864
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 750 l/min
- Pneumatic connection 1
- G1/8
- Operating pressure
- -0.95 bar - 10 bar
- Width
- 20 mm
Regular price
$131.80
Unit price
VMEF-S-M52-M-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMEF-S-M52-M-G18
Regular price
$131.80
Unit price
VMEF-S-M52-M-G18 is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate | 750 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | -0.95 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Nominal width | 5.2 mm |
| Type code | VMEF |
| Application note | Do not use as mechanical stop |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |
| Symbol | 991364 |
| Max. switching frequency | 3 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 145 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Seals material | NBR |
| Housing material | Wrought aluminum alloyAnodized |
