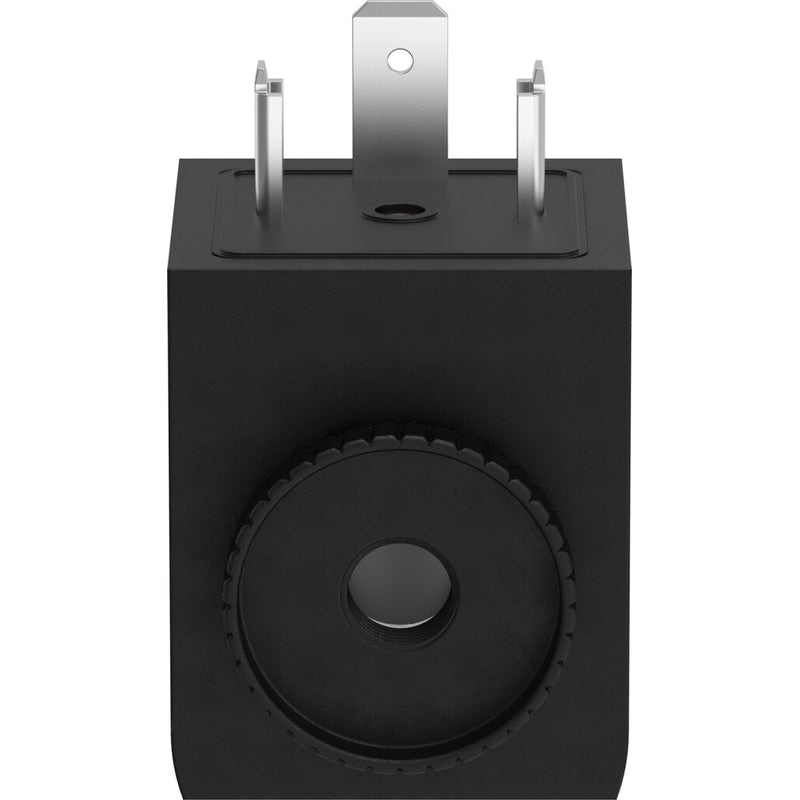

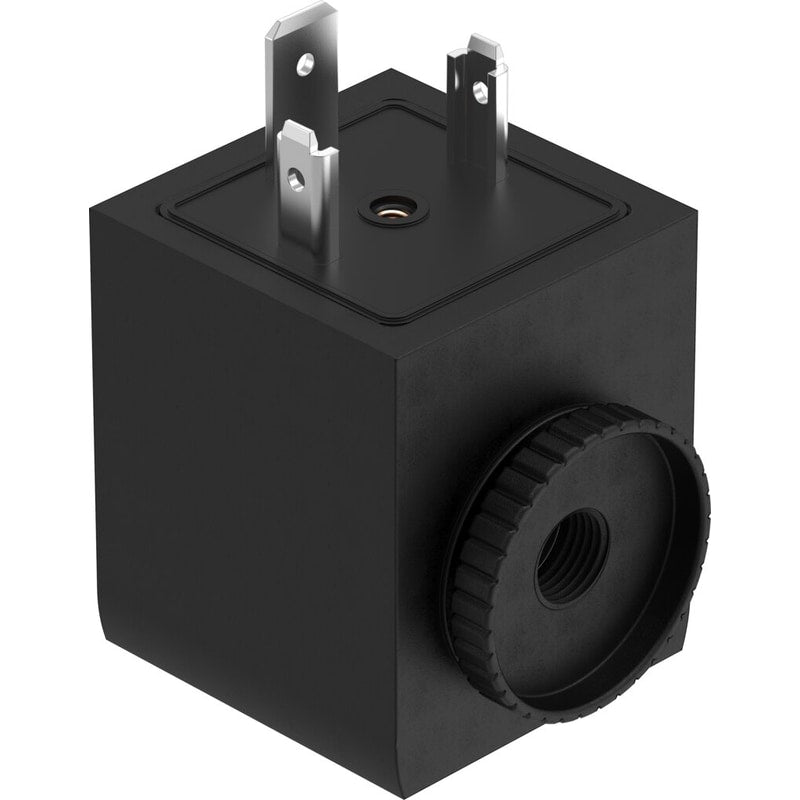

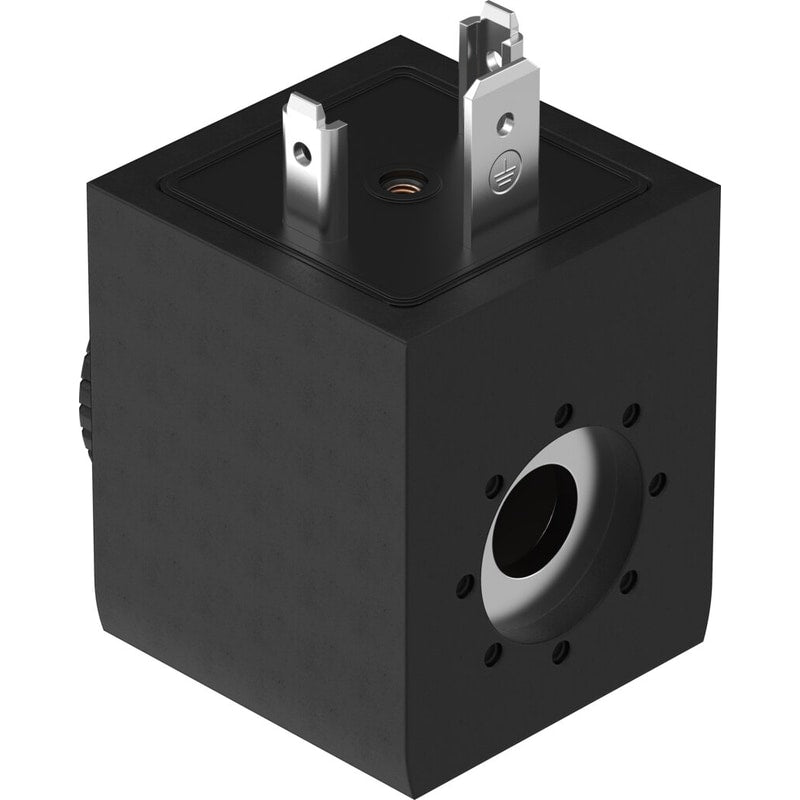

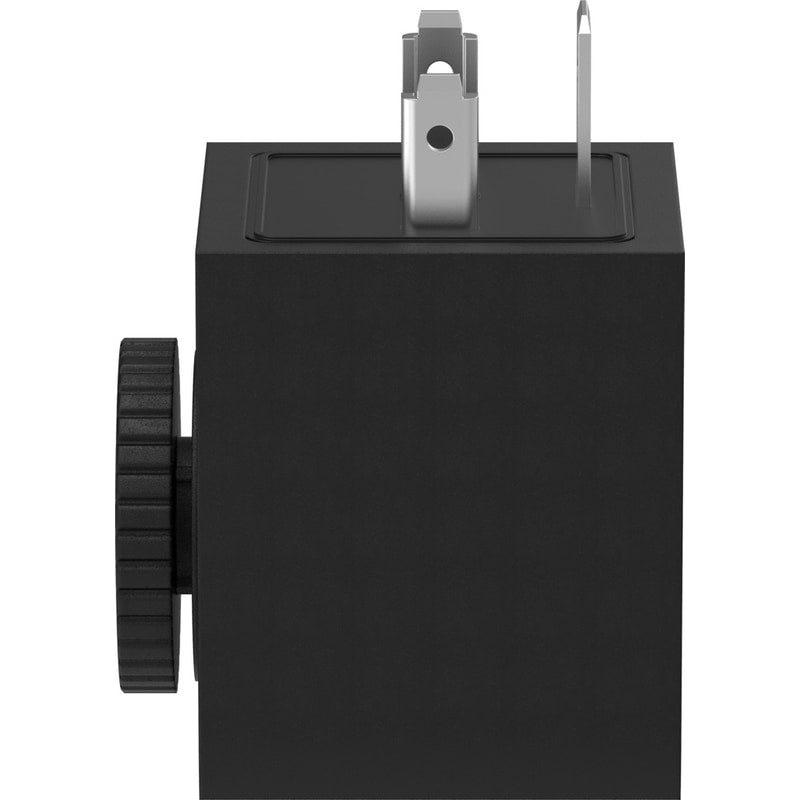

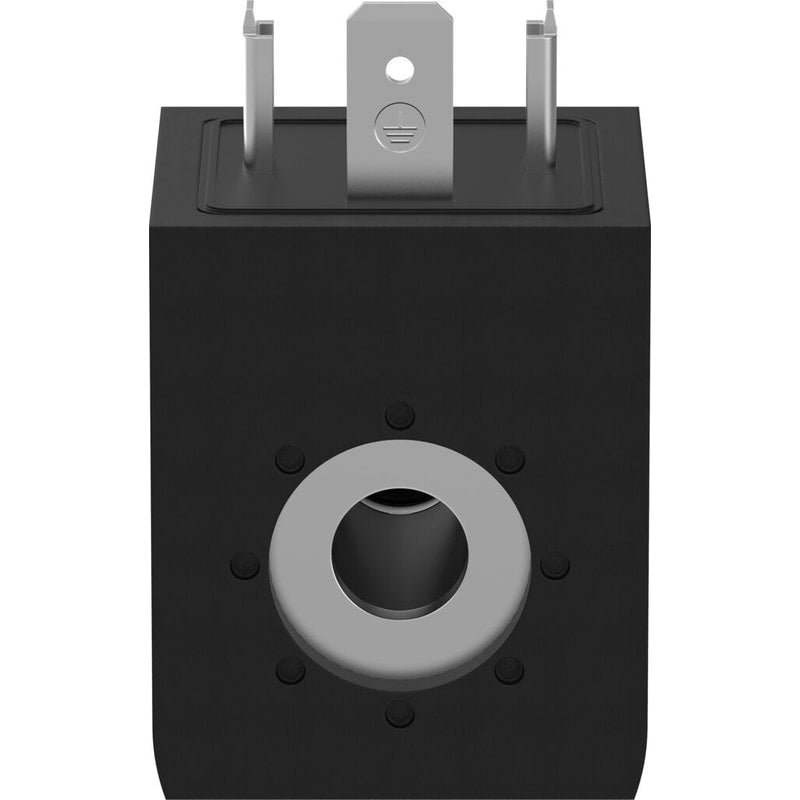

Solenoid coil
VACF-A-A1-1A
8030824
GTIN 4052568281021
Vendor Festo
- Electrical connection
- Form A - as per EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 24 V AC: 50/60 Hz, initial power 2.5 VA, holding power 1.7 VA
- Degree of protection
- IP65
- Restricted ambient and media temperature
- -20 - 50 °C
Regular price
$13.27
Unit price
VACF-A-A1-1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACF-A-A1-1A
Regular price
$13.27
Unit price
VACF-A-A1-1A is backordered and will ship as soon as it is back in stock.
solenoid coil VACF-A-A1-1A Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=24 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA, Permissible voltage fluctuation=+/- 10 %
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 24 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA |
| Permissible voltage fluctuation | '+/- 10 % |
| Certificate issuing department | DNVGL-TAA000011J |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Protection class | IP65 |
| Ambient temperature | '-20 ... 50 °C |
| Maritime classification | see certificate |
| Authorisation | c UL us - Recognized (OL) |
| Electrical connection | to EN 175301-803Plug pattern type A to EN 175301-803 |
| Mounting type | With knurled nut |
