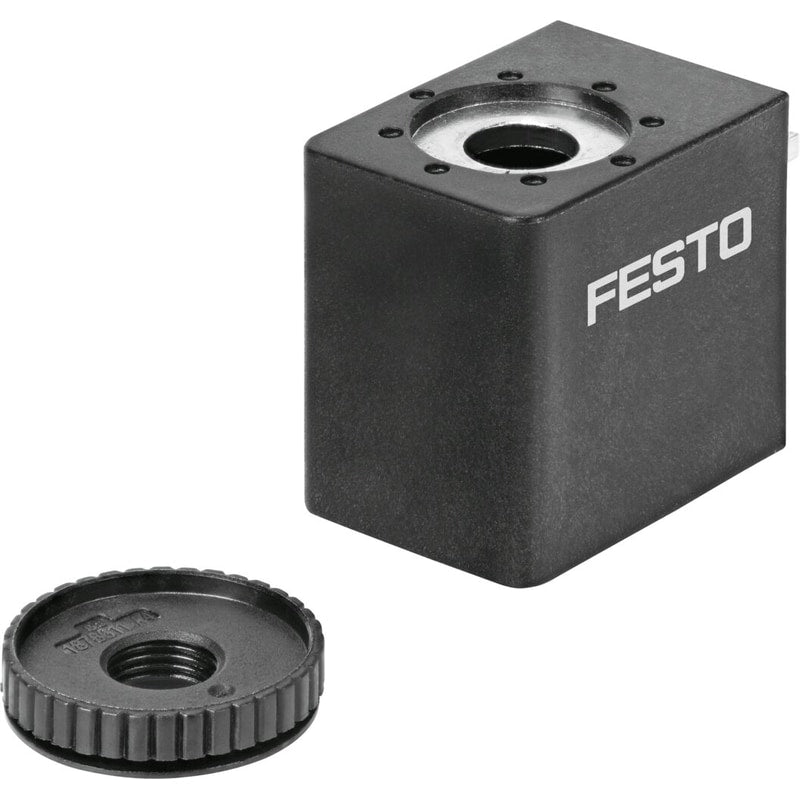

Solenoid coil
VACF-B-C1-3W
8030817
GTIN 4052568280987
Vendor Festo
- Electrical connection
- Form C - as per EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 230/240 V AC: 50/60 Hz, initial power 5.8 VA, holding power 4.6 VA
- Degree of protection
- IP65
- Restricted ambient and media temperature
- -20 - 50 °C
Regular price
$12.62
Unit price
VACF-B-C1-3W is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACF-B-C1-3W
Regular price
$12.62
Unit price
VACF-B-C1-3W is backordered and will ship as soon as it is back in stock.
solenoid coil VACF-B-C1-3W Type C connection pattern, to EN 175 301, 230 V AC/240 V AC/50-60 Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=230/240 V AC: 50/60 Hz, pick-up power 5.8 VA, holding power 4.6 VA, Surge strength=4 kV
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 230/240 V AC: 50/60 Hz, pick-up power 5.8 VA, holding power 4.6 VA |
| Surge strength | 4 kV |
| Degree of contamination | 3 |
| Permissible voltage fluctuation | '+/- 10 % |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-20 ... 50 °C |
| Protection class | IP65 |
| Ambient temperature | '-20 ... 50 °C |
| Electrical connection | to EN 175301-803Plug pattern type C to EN 175301-803 |
