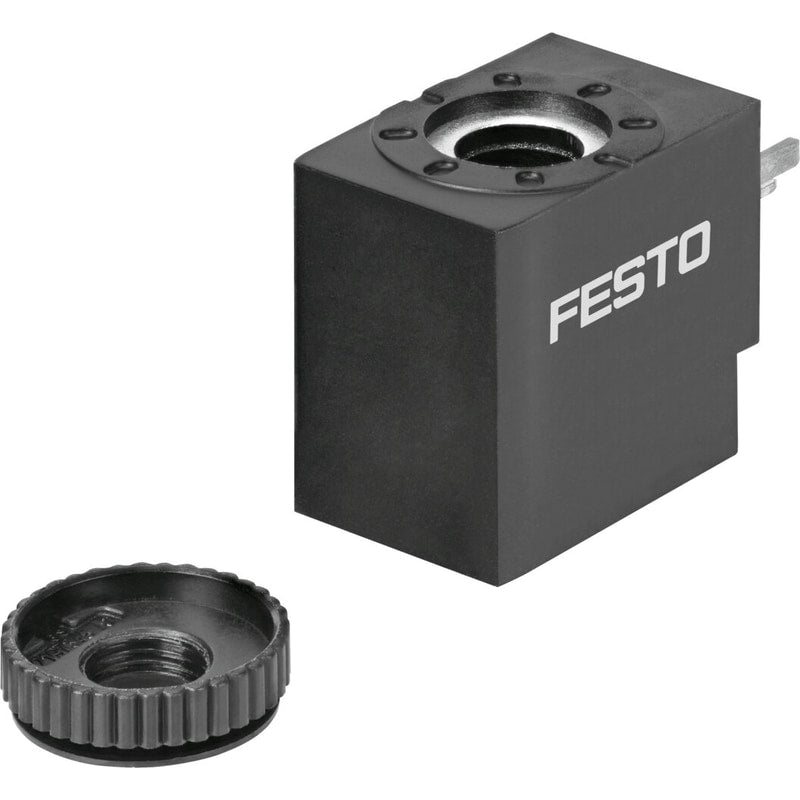

Solenoid coil
VACF-B-B2-3W
8030808
GTIN 4052568280918
Vendor Festo
- Electrical connection
- Form B - As per industrial standard (11 mm)
- Type of mounting
- With knurled nut
- Coil characteristics
- 230/240 V AC: 50/60 Hz, initial power 5.8 VA, holding power 4.6 VA
- Degree of protection
- IP65
- Restricted ambient and media temperature
- -20 - 50 °C
Regular price
$12.62
Unit price
VACF-B-B2-3W is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACF-B-B2-3W
Regular price
$12.62
Unit price
VACF-B-B2-3W is backordered and will ship as soon as it is back in stock.
solenoid coil VACF-B-B2-3W Type B connection pattern, industry standard, 230 V AC/240 V AC/50-60 Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=230/240 V AC: 50/60 Hz, pick-up power 5.8 VA, holding power 4.6 VA, Surge strength=4 kV
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 230/240 V AC: 50/60 Hz, pick-up power 5.8 VA, holding power 4.6 VA |
| Surge strength | 4 kV |
| Degree of contamination | 3 |
| Permissible voltage fluctuation | '+/- 10 % |
| Certificate issuing department | DNVGL-TAA000011J |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-20 ... 50 °C |
| Protection class | IP65 |
| Ambient temperature | '-20 ... 50 °C |
