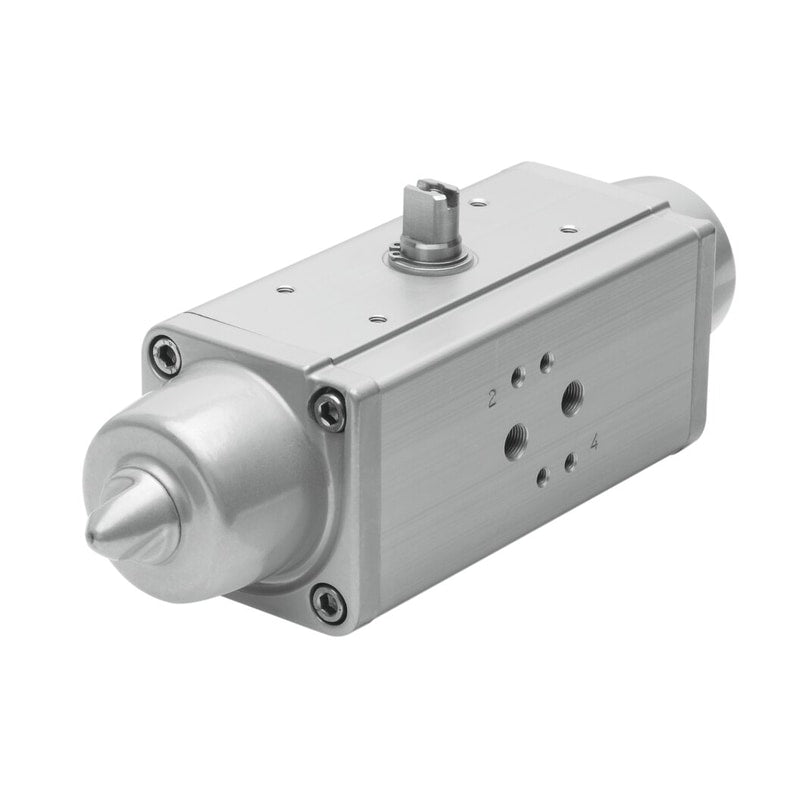

Quarter turn actuator
DAPS-0480-090-RS4-F14-T4
8030624
GTIN 4052568280840
Vendor Festo
- Pneumatic connection
- G1/4
- Torque at nominal operating pressure and 0° swivel angle
- 480 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F14
- Shaft connection
- T36
Regular price
$2,889.42
Unit price
DAPS-0480-090-RS4-F14-T4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DAPS-0480-090-RS4-F14-T4
Regular price
$2,889.42
Unit price
DAPS-0480-090-RS4-F14-T4 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DAPS-0480-090-RS4-F14-T4 Size of actuator=0480, Flange hole pattern=F14, Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, End-position adjustment range at 90°=81 - 91 deg
| Size of actuator | 480 |
|---|---|
| Flange hole pattern | F14 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-1 ... 9 deg |
| End-position adjustment range at 90° | 81 ... 91 deg |
| Shaft connection depth | 38.5 mm |
| Note regarding end position setting range | One selectable end position is adjustable |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-acting |
| Design structure | Yoke kinematics |
| Position detection | No |
