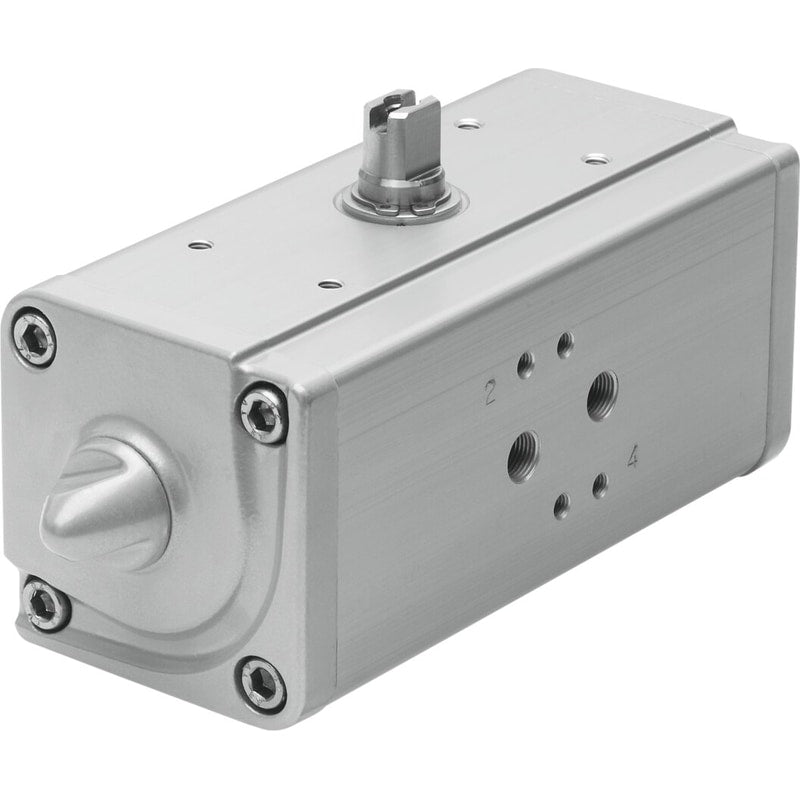

Quarter turn actuator
DAPS-0060-090-R-F04-T4
8030603
GTIN 4052568280635
Vendor Festo
- Pneumatic connection
- G1/8
- Torque at nominal operating pressure and 0° swivel angle
- 60 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F04
- Shaft connection
- T14
Regular price
$439.78
Unit price
DAPS-0060-090-R-F04-T4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DAPS-0060-090-R-F04-T4
Regular price
$439.78
Unit price
DAPS-0060-090-R-F04-T4 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DAPS-0060-090-R-F04-T4 Size of actuator=0060, Flange hole pattern=F04, Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, Shaft connection depth=16,5 mm
| Size of actuator | 60 |
|---|---|
| Flange hole pattern | F04 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-1 ... 9 deg |
| Shaft connection depth | 16.5 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Yoke kinematics |
| Position detection | No |
| Closing direction | right-closing |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
