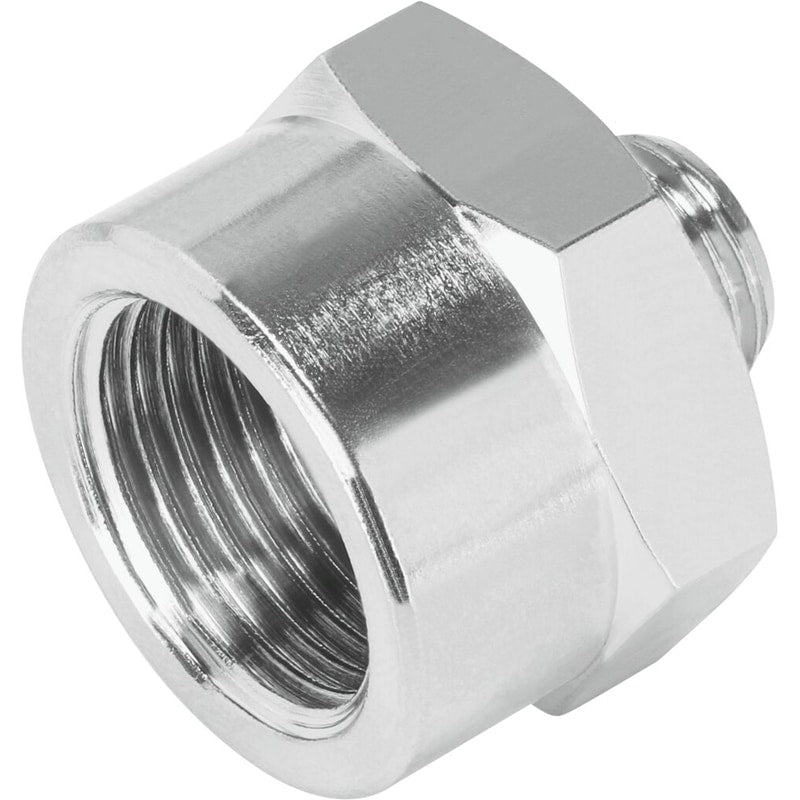

Reducing nipple
NPFC-R-G38-G18-FM
8030316
GTIN 4052568064181
Vendor Festo
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G1/8
- Ambient temperature
- -20 °C - 150 °C
- Operating pressure
- -0.95 bar - 50 bar
Regular price
$3.20
Unit price
NPFC-R-G38-G18-FM Reducing nipple is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPFC-R-G38-G18-FM
Regular price
$3.20
Unit price
NPFC-R-G38-G18-FM Reducing nipple is backordered and will ship as soon as it is back in stock.
reducing nipple NPFC-R-G38-G18-FM Material information for threaded fitting=Nickel-plated brass, Container size=10, Operating pressure=-0,95 - 50 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC=1 - Low corrosion stress
| Fitting Type | Reducing Nipple |
|---|---|
| Material threaded fitting | Nickel-plated brass |
| Container size | 10 |
| Operating pressure | '-0.95 ... 50 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 150 °C |
| Product weight | 30.1 g |
| connection 1 | G3/8 |
| connection 2 | G1/8 |
| Materials note | Conforms to RoHS |
