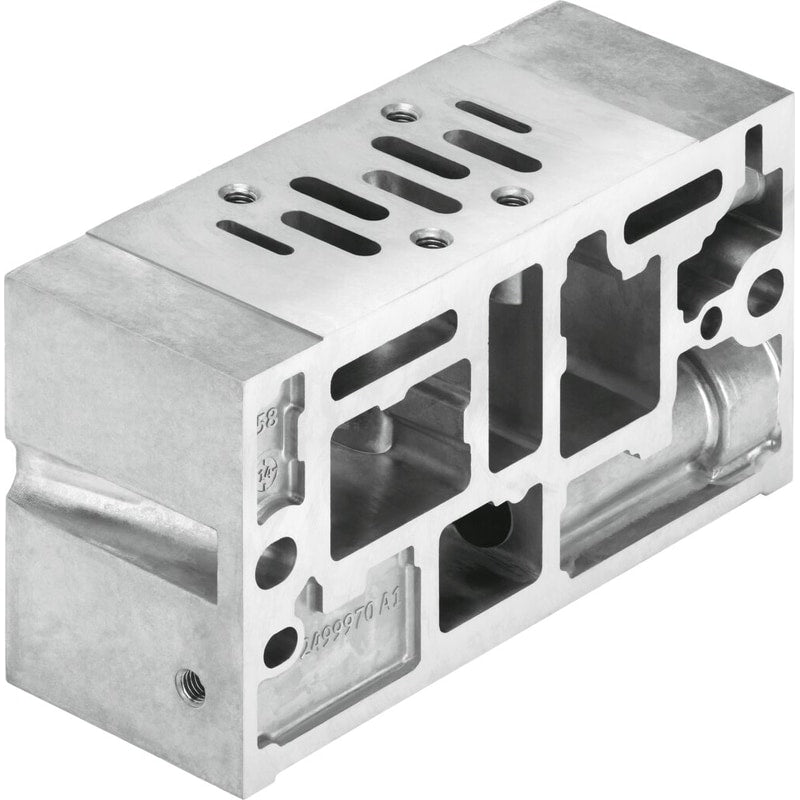

Manifold sub-base
VABV-S1-1SB-G38
8029812
GTIN 4052568298623
Vendor Festo
Regular price
$55.77
Unit price
VABV-S1-1SB-G38 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

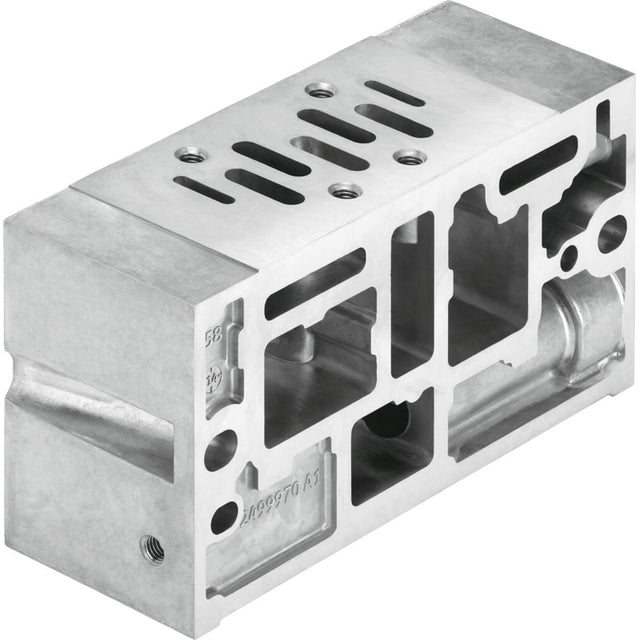

VABV-S1-1SB-G38
Regular price
$55.77
Unit price
VABV-S1-1SB-G38 is backordered and will ship as soon as it is back in stock.
| Width | 44 mm |
|---|---|
| Type code | VABV |
| Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 |
| Max. no. of valve positions | 1 |
| Operating pressure | 0 bar ... 10 bar |
| Suitability for vacuum | yes |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Temperature of medium | -10 °C ... 50 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 50 °C |
| Product weight | 490 g |
| Pneumatic connection 2 | G3/8 |
| Pneumatic connection 4 | G3/8 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
