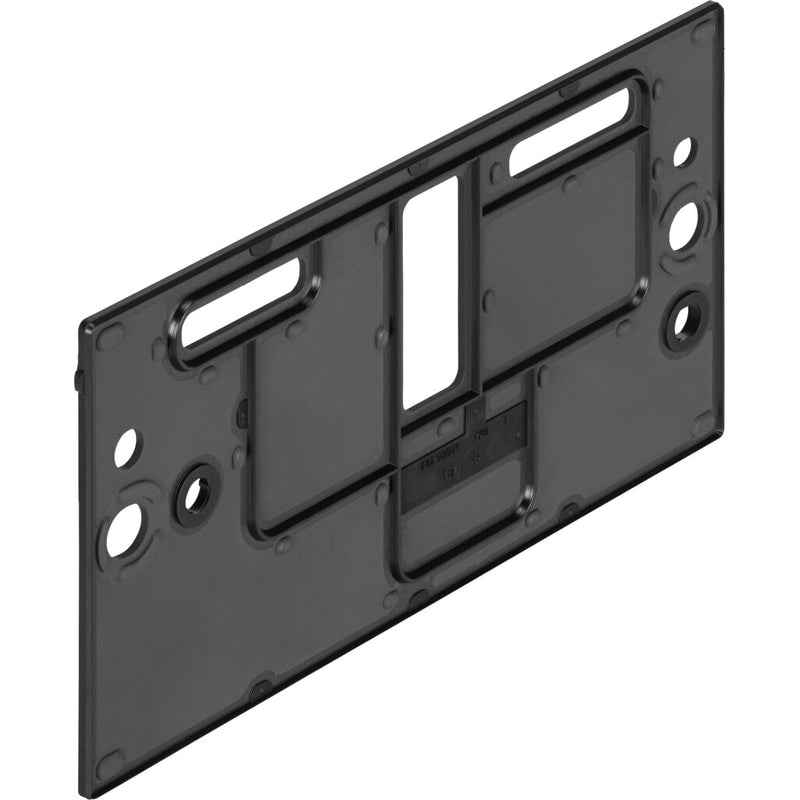

Duct separation
VABD-S1-1-P2-C
8029439
GTIN 4052568428280
Vendor Festo
Regular price
$20.69
Unit price
VABD-S1-1-P2-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABD-S1-1-P2-C
Regular price
$20.69
Unit price
VABD-S1-1-P2-C is backordered and will ship as soon as it is back in stock.
| Exhaust air function | Via throttle plate |
|---|---|
| Based on norm | ISO 5599-1 |
| Operating pressure | 0 bar ... 10 bar |
| Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Temperature of medium | -10 °C ... 50 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 50 °C |
| Product weight | 70 g |
| Note on materials | RoHS-compliant |
| Separator plate material | Steel NBR |
