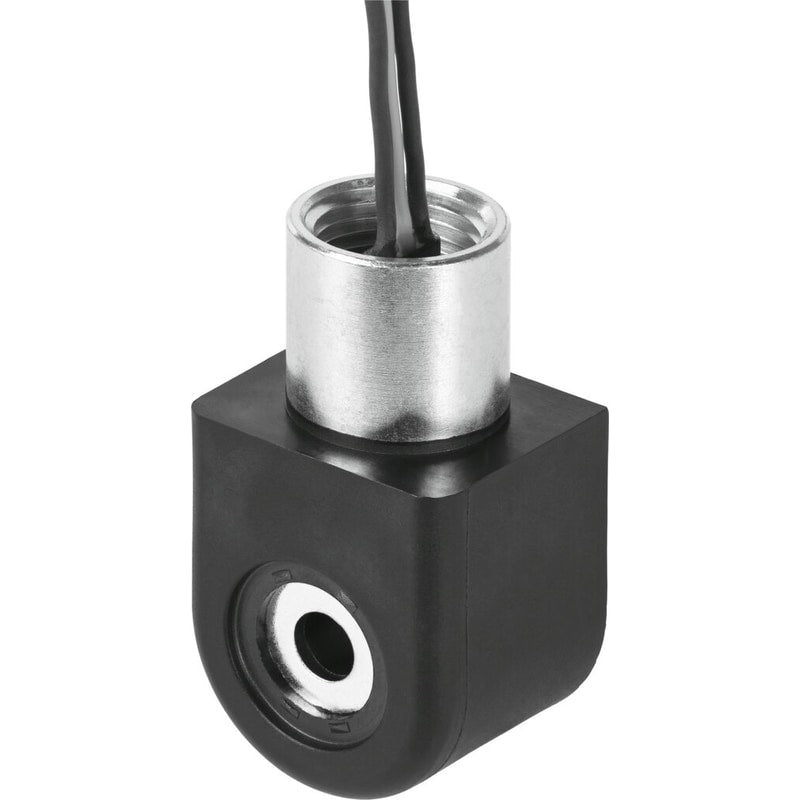

Solenoid coil
VACN-N-K11-16B-0.5-U4-M
8029145
GTIN 4052568280499
Vendor Festo
- Electrical connection
- Cable
- Type of mounting
- With knurled nut
- Coil characteristics
- 120 V AC: 60 Hz, initial power 10.0 VA, holding power 6.8 VA
- Degree of protection
- IP65
Regular price
$175.52
Unit price
VACN-N-K11-16B-0.5-U4-M is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACN-N-K11-16B-0.5-U4-M
Regular price
$175.52
Unit price
VACN-N-K11-16B-0.5-U4-M is backordered and will ship as soon as it is back in stock.
solenoid coil VACN-N-K11-16B-0.5-U4-M Type of actuation=electrical, Assembly position=Any, Duty cycle=100%, Insulation class=H, Enamelled wire insulation class=H
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Duty cycle | 1 |
| Insulation class | H |
| Enamelled wire insulation class | H |
| Characteristic coil data | 120V AC: 60 Hz, pick-up power 10.0 VA, holding power 6.8 VA |
| Permissible voltage fluctuation | '+/- 10 % |
| Explosion ignition protection type Gas | AEx m II T4Ex m II T4 |
| Explosion protection certification outside the EU | Class I, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (CA)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III, Div. 1 (CA)Class III, Div. 1 (US)EPL Gb (US) |
| Explosion-proof ambient temperature | '-20°C <= Ta <= +60°C |
| Certificate issuing department | CSA 265489DNVGL-TAA000011JFM 3053936 |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
