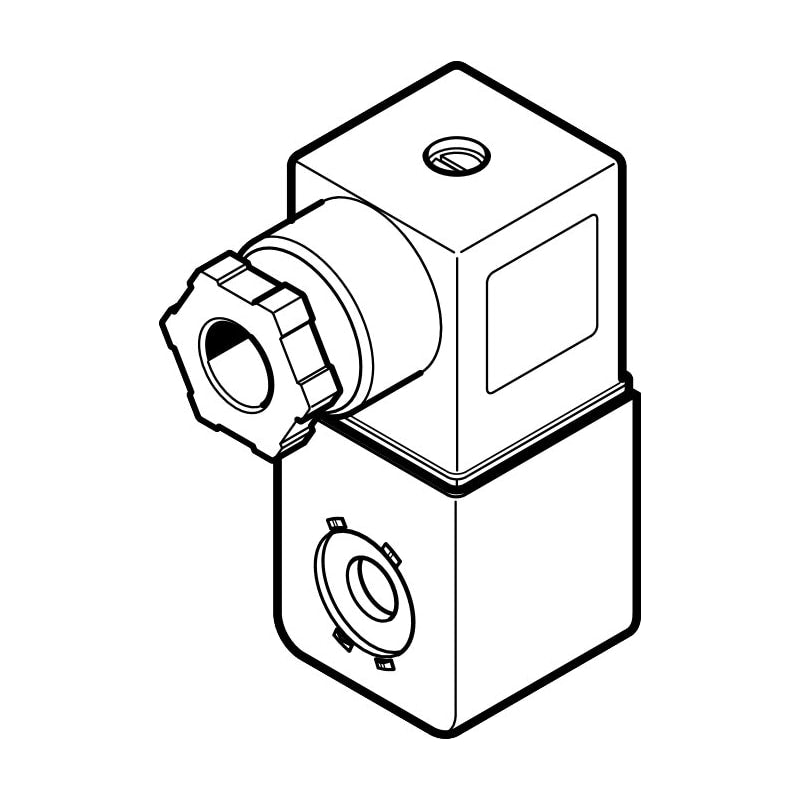

Solenoid coil
VACN-N-A1-3A-EX2-N
8029138
GTIN 4052568280420
Vendor Festo
- Electrical connection
- Form A - as per DIN EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 230 V AC: 50 Hz, initial power 6.9 VA, holding power 4.1 VA - 230 V AC: 60 Hz, initial power 5.4 VA, holding power 3.3 VA
- Degree of protection
- IP65
Regular price
$57.41
Unit price
VACN-N-A1-3A-EX2-N is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACN-N-A1-3A-EX2-N
Regular price
$57.41
Unit price
VACN-N-A1-3A-EX2-N is backordered and will ship as soon as it is back in stock.
solenoid coil VACN-N-A1-3A-EX2-N Type of actuation=electrical, Assembly position=Any, Duty cycle=100%, Insulation class=F, Enamelled wire insulation class=H
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Duty cycle | 1 |
| Insulation class | F |
| Enamelled wire insulation class | H |
| Characteristic coil data | 230 V AC: 50 Hz, pick-up power 6.9 VA, holding power 4.1 VA230 V AC: 60 Hz, pick-up power 5.4 VA, holding power 3.3 VA |
| Permissible voltage fluctuation | '+/- 10 % |
| ATEX category Gas | II 3G |
| Explosion ignition protection type Gas | Ex nA IIC T5/T4 X Gc |
| ATEX category Dust | II 3D |
| Explosion ignition protection type Dust | Ex tc IIIC T95°C/T105°C X Dc |
| Explosion-proof ambient temperature | '-20°C <= Ta <= +60°C |
| Certificate issuing department | DNVGL-TAA000011J |
