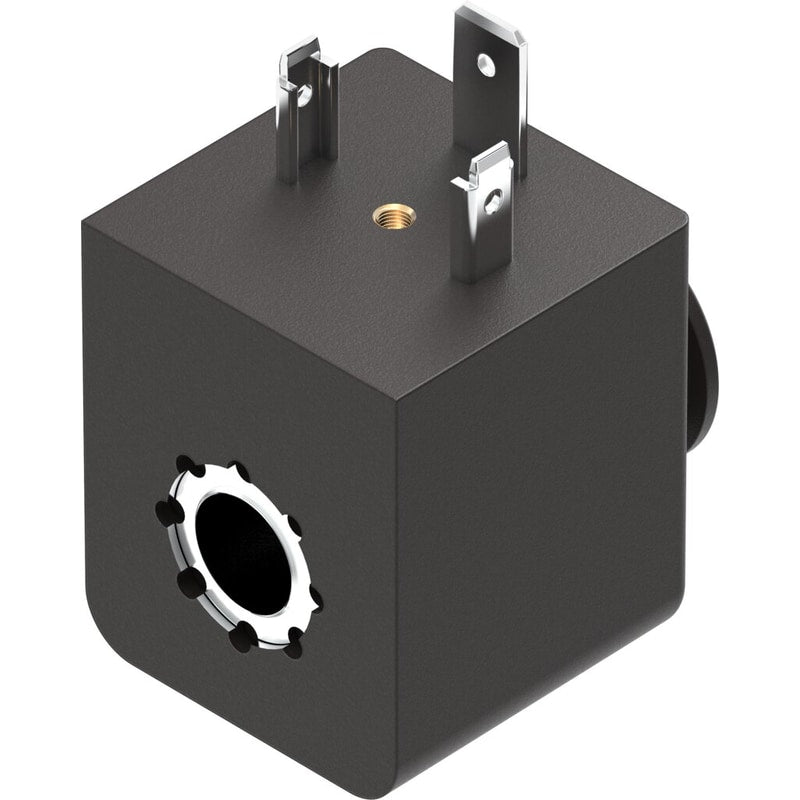

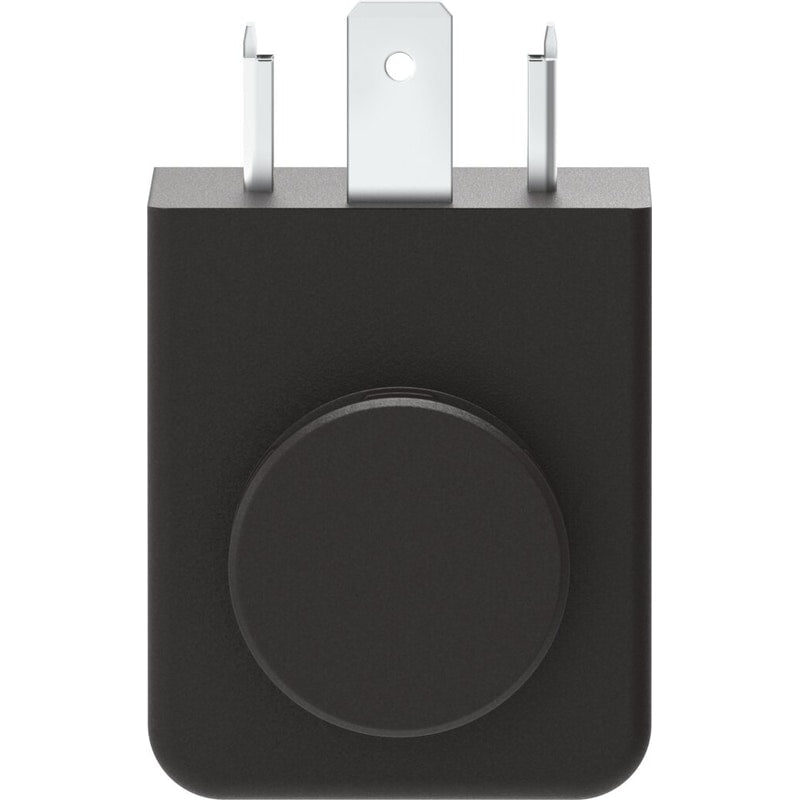

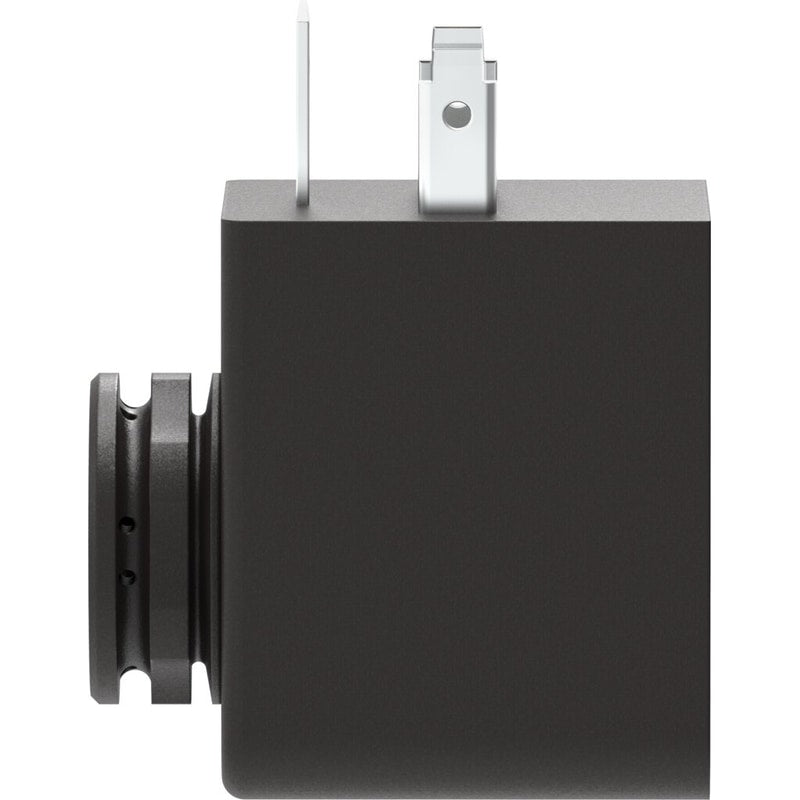

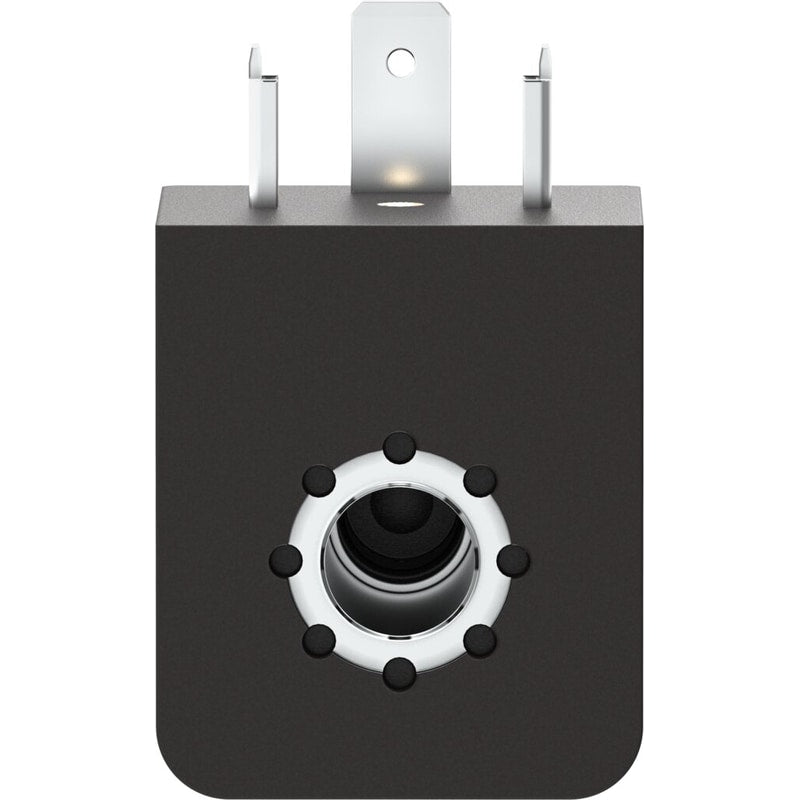

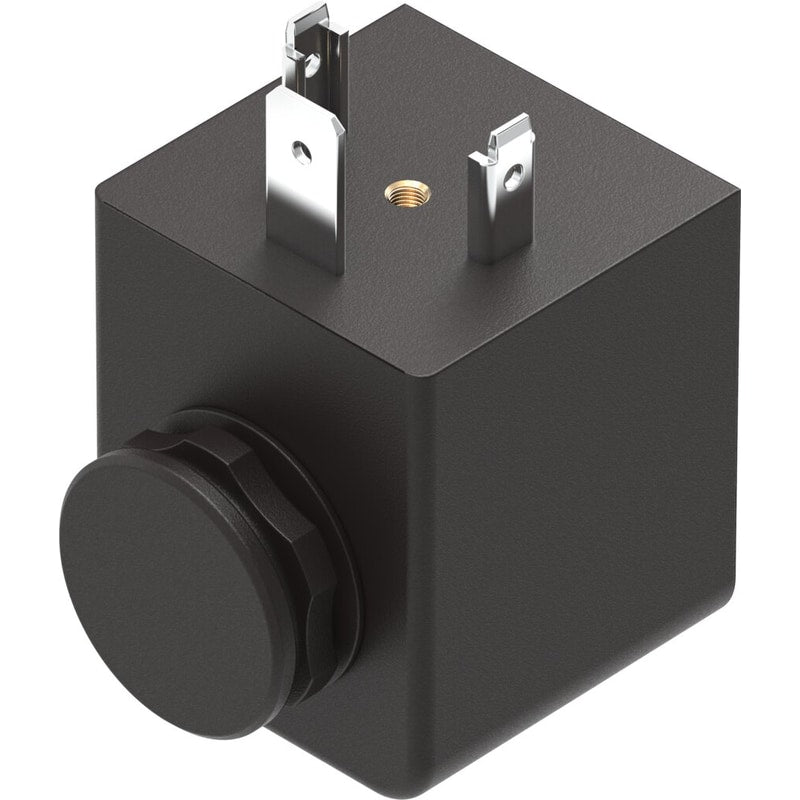

Solenoid coil
VACN-N-A1-16B
8029134
GTIN 4052568280383
Vendor Festo
- Electrical connection
- Form A - as per DIN EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 110 V AC: 50 Hz, initial power 5.2 VA, holding power 3.1 VA - 110 V AC: 60 Hz, initial power 4.2 VA, holding power 2.5 VA
- Degree of protection
- IP65
Regular price
$20.76
Unit price
VACN-N-A1-16B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACN-N-A1-16B
Regular price
$20.76
Unit price
VACN-N-A1-16B is backordered and will ship as soon as it is back in stock.
solenoid coil VACN-N-A1-16B Type of actuation=electrical, Assembly position=Any, Duty cycle=100%, Insulation class=F, Enamelled wire insulation class=F
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Duty cycle | 1 |
| Insulation class | F |
| Enamelled wire insulation class | F |
| Characteristic coil data | 110 V AC: 50 Hz, pick-up power 5.2 VA, holding power 3.1 VA110 V AC: 60 Hz, pick-up power 4.2 VA, holding power 2.5 VA |
| Surge strength | 2.5 kV |
| Degree of contamination | 3 |
| Permissible voltage fluctuation | '+/- 10 % |
| Certificate issuing department | DNVGL-TAA000011J |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Protection class | IP65 |
