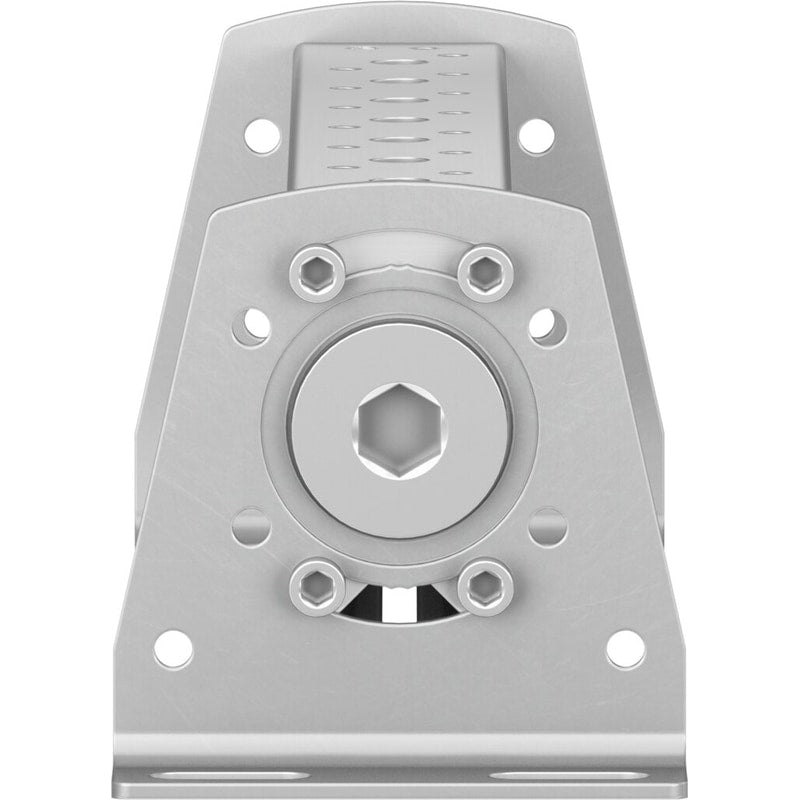

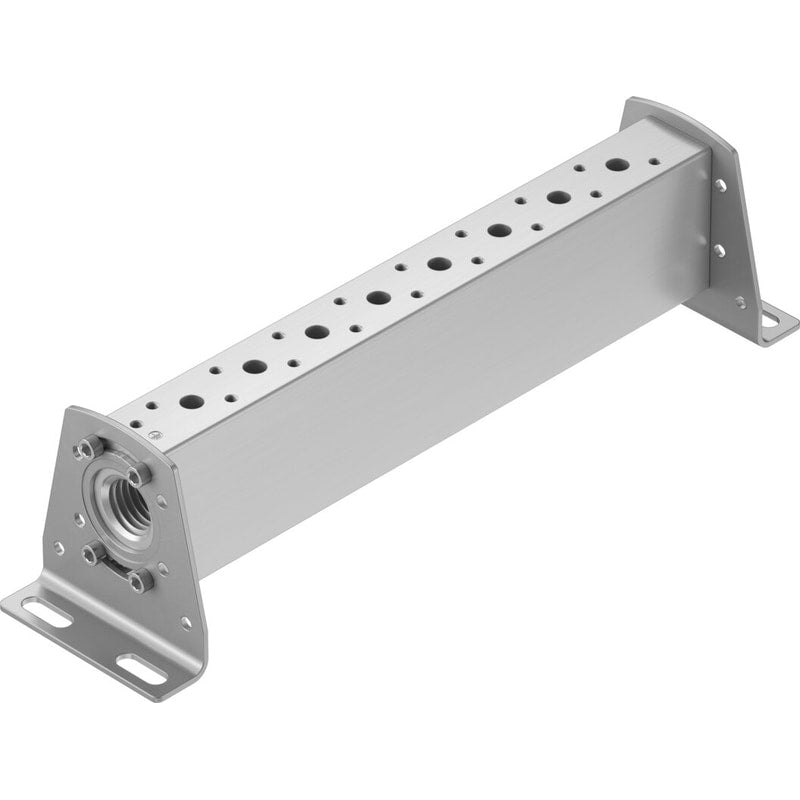

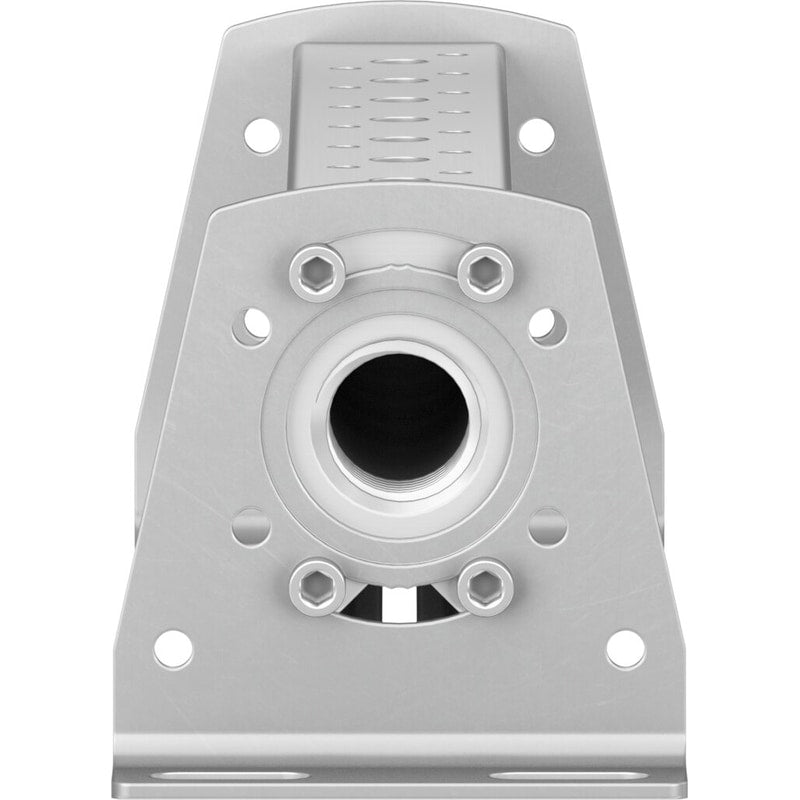

Common supply manifold
VABM-B10-30-N34-8-P53
8026353
GTIN 4052568427825
Vendor Festo
Regular price
$126.59
Unit price
VABM-B10-30-N34-8-P53 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABM-B10-30-N34-8-P53
Regular price
$126.59
Unit price
VABM-B10-30-N34-8-P53 is backordered and will ship as soon as it is back in stock.
supply manifold VABM-B10-30-N34-8-P53 Grid dimension=32 mm, Assembly position=Any, Max. number of valve positions=8, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Product weight=1768 g
| Grid dimension | 32 mm |
|---|---|
| Assembly position | Any |
| Max. number of valve positions | 8 |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Product weight | 1,768 g |
| Mounting type | With mounting bracket |
| Pneumatic connection, port 1 | NPT3/4-14 |
| Materials note | Conforms to RoHS |
| Material manifold | Wrought Aluminium alloy |
