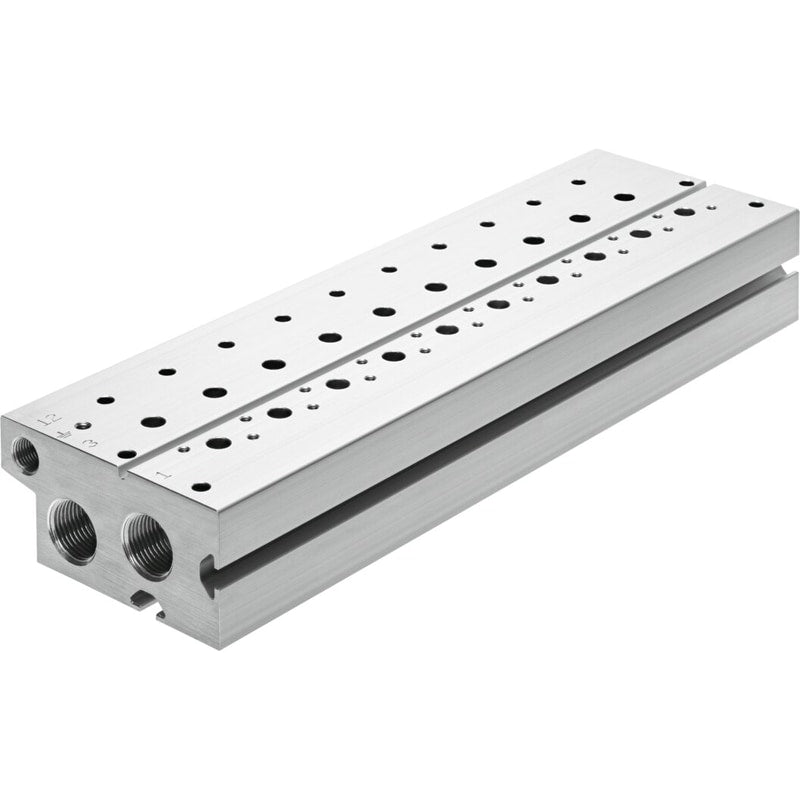

Manifold block
VABM-B10-25E-N12-10-P3
8026296
GTIN 4052568427665
Vendor Festo
Regular price
$171.76
Unit price
VABM-B10-25E-N12-10-P3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABM-B10-25E-N12-10-P3
Regular price
$171.76
Unit price
VABM-B10-25E-N12-10-P3 is backordered and will ship as soon as it is back in stock.
manifold block VABM-B10-25E-N12-10-P3 Grid dimension=27,5 mm, Assembly position=Any, Max. number of valve positions=10, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Product weight=2598 g
| Grid dimension | 27.5 mm |
|---|---|
| Assembly position | Any |
| Max. number of valve positions | 10 |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Product weight | 2,598 g |
| Mounting type | with through hole |
| Pilot air port 12 | NPT1/8-27 |
| Pneumatic connection, port 1 | NPT1/2-14 |
| Pneumatic connection, port 3 | NPT1/2-14 |
| Materials note | Conforms to RoHS |
| Material manifold | Wrought Aluminium alloy |
