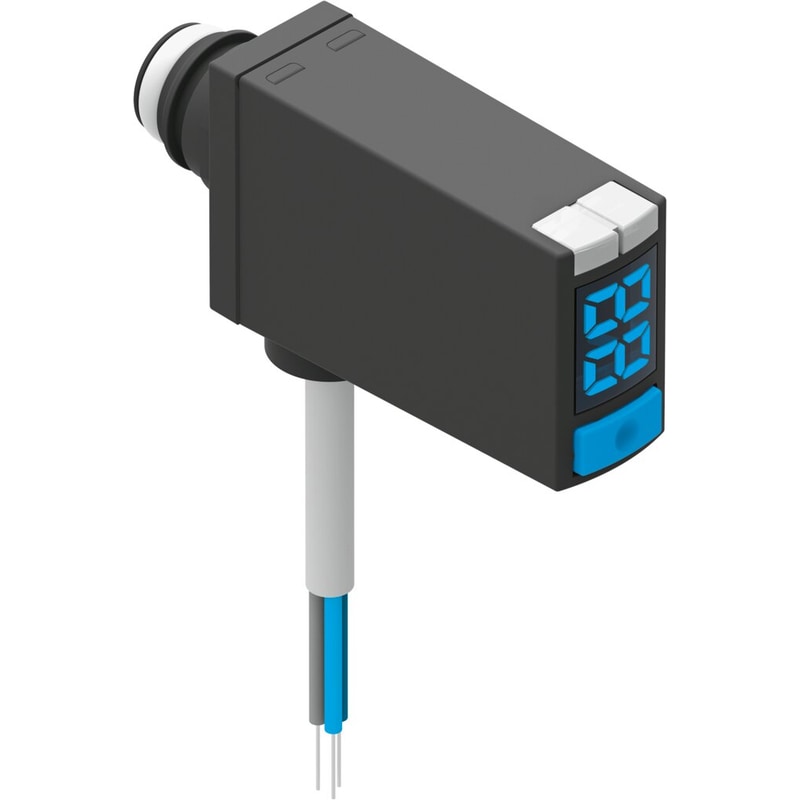

Pressure sensor
SPAE-B2R-PC10-PNLK-2.5K
8025979
GTIN 4052568293840
Vendor Festo
- Pressure measuring range initial value
- -1 bar
- Pressure measuring range end value
- 1 bar
- Switching element function
- Switchable
- Pneumatic connection
- Cartridge 10 mm
- Electrical connection
- Cable - Open end
Regular price
$146.64
Unit price
SPAE-B2R-PC10-PNLK-2.5K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAE-B2R-PC10-PNLK-2.5K
Regular price
$146.64
Unit price
SPAE-B2R-PC10-PNLK-2.5K is backordered and will ship as soon as it is back in stock.
| Type code | SPAE |
|---|---|
| KC characters | KC EMC |
| Symbol | 995430 |
| Certification | RCM compliance markc UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor with display |
| Pressure measuring range initial value | -1 bar |
| Pressure measuring range end value | 1 bar |
| Max. overload pressure | 5 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| ADC resolution | 10 bit |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.05 %FS/K |
| Switching output | PNP/NPN switchable |
| Switching function | Freely programmable |
| Switching element function | N/C contactSwitchableN/O contact |
| Max. output current | 100 mA |
| Display range end value | 99 %FS |
| Short-circuit protection | yes |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | IdentificationTeach channelProcess data variable (PDV)DiagnosticsBinary data channel (BDC) |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 0 Byte |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 14 bit PDV (pressure measurement)2 bit BDC (pressure monitoring) |
| IO-Link®, minimum cycle time | 3 ms |
| IO-Link®, data memory required | 500 byte |
| DC operating voltage range | 18 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-wireCableOpen end |
| Cable length | 2.5 m |
| Type of mounting | Pin-type conneciton |
| Mounting position | Any |
| Pneumatic connection | Cartridge 10 mm |
| Product weight | 40 g |
| Housing material | PA-reinforced |
| Sealing ring material | NBR |
| Display type | 2-digitLED display |
| Displayable unit(s) | %FS |
| Switching status indication | LED yellow |
| Setting options | IO-Link®Via display and pushbuttonsTeach-in |
| Protection against tampering | PIN code |
| Threshold value setting range | 1 % ... 98 % |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
