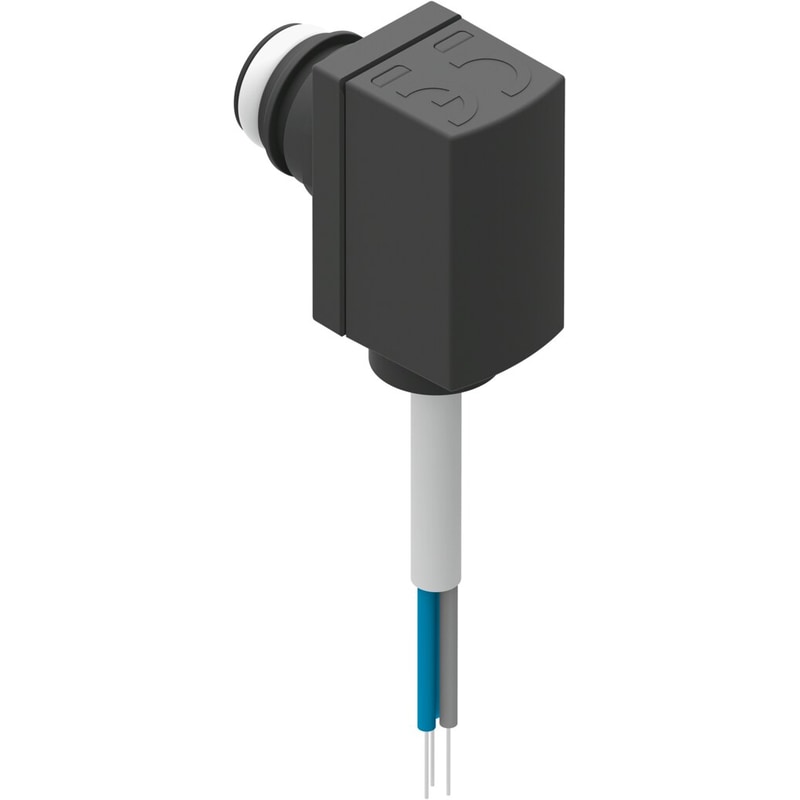

Pressure transmitter
SPTE-V1R-PC10-V-2.5K
8025974
GTIN 4052568293796
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- -1 bar
- Pneumatic connection
- Cartridge 10 mm
- Electrical connection
- Cable - Open end
Regular price
$78.96
Unit price
SPTE-V1R-PC10-V-2.5K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPTE-V1R-PC10-V-2.5K
Regular price
$78.96
Unit price
SPTE-V1R-PC10-V-2.5K is backordered and will ship as soon as it is back in stock.
| Type code | SPTE |
|---|---|
| KC characters | KC EMC |
| Symbol | 992257 |
| Certification | RCM compliance markc UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0 bar |
| Pressure measuring range end value | -1 bar |
| Max. overload pressure | 5 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Accuracy in ± % FS | 3 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.05 %FS/K |
| Analog output | 0 - 10 V |
| Rise time | 1 ms |
| Min. load resistance of voltage output | 15 kOhm |
| Short-circuit protection | For all electrical connections |
| DC operating voltage range | 18 V ... 30 V |
| Electrical connection | 3-wireOpen endCable |
| Cable length | 2.5 m |
| Type of mounting | Pin-type conneciton |
| Mounting position | Any |
| Pneumatic connection | Cartridge 10 mm |
| Product weight | 35 g |
| Housing material | PA-reinforced |
| Sealing ring material | NBR |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
