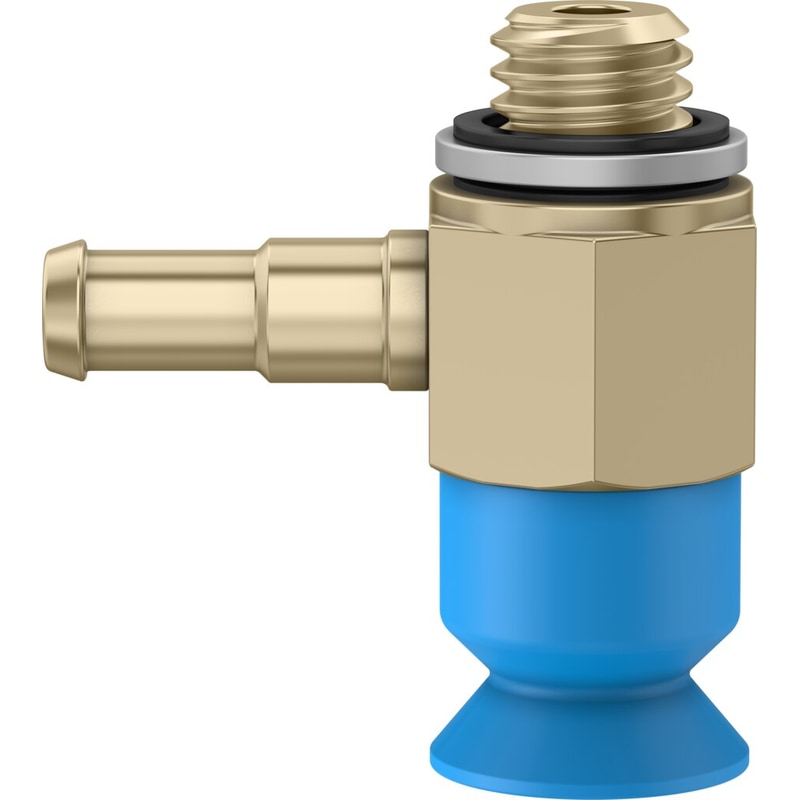

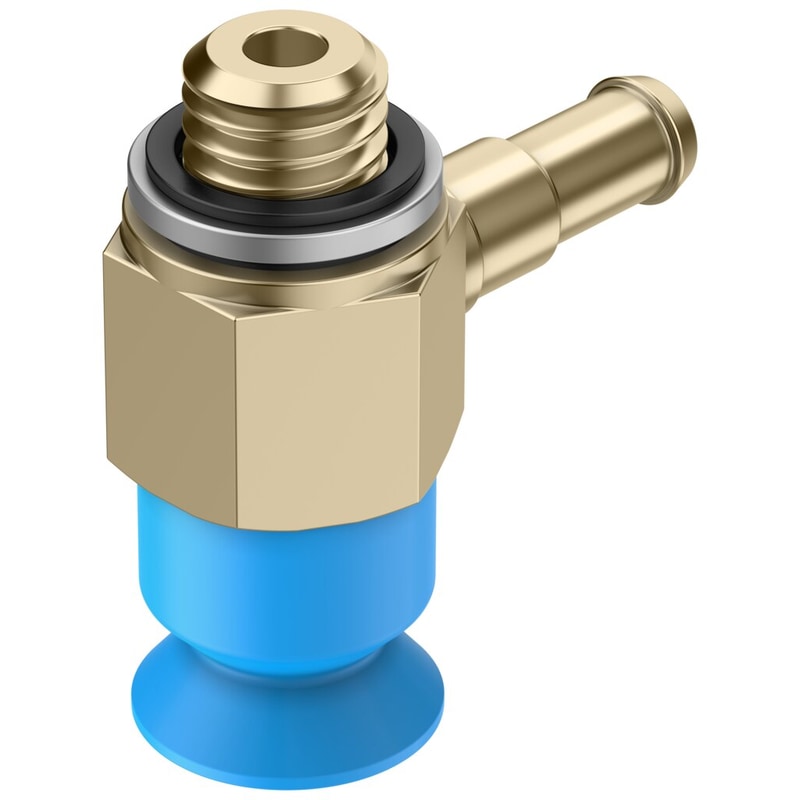

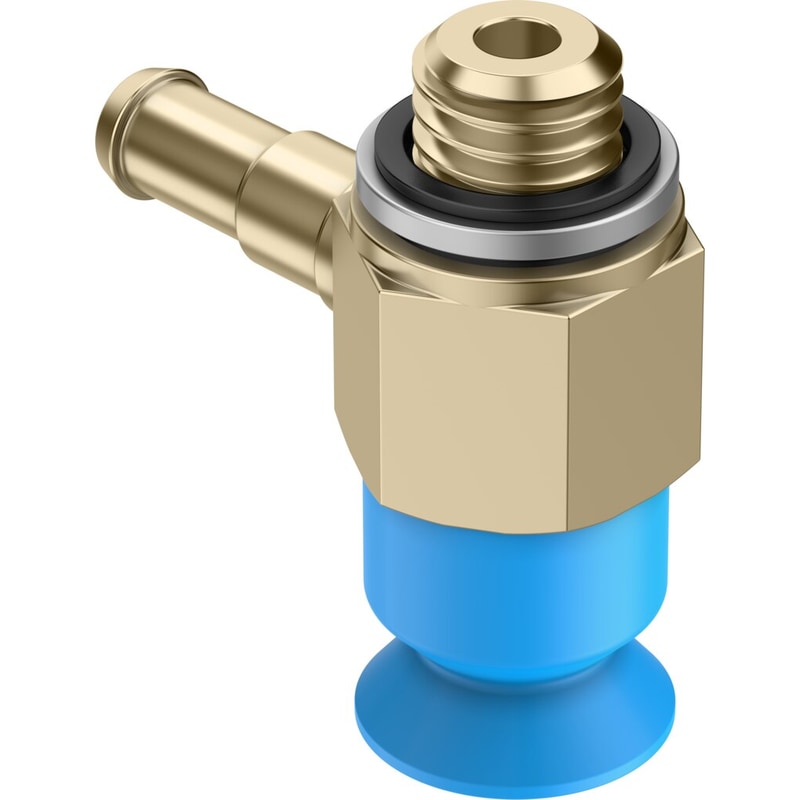

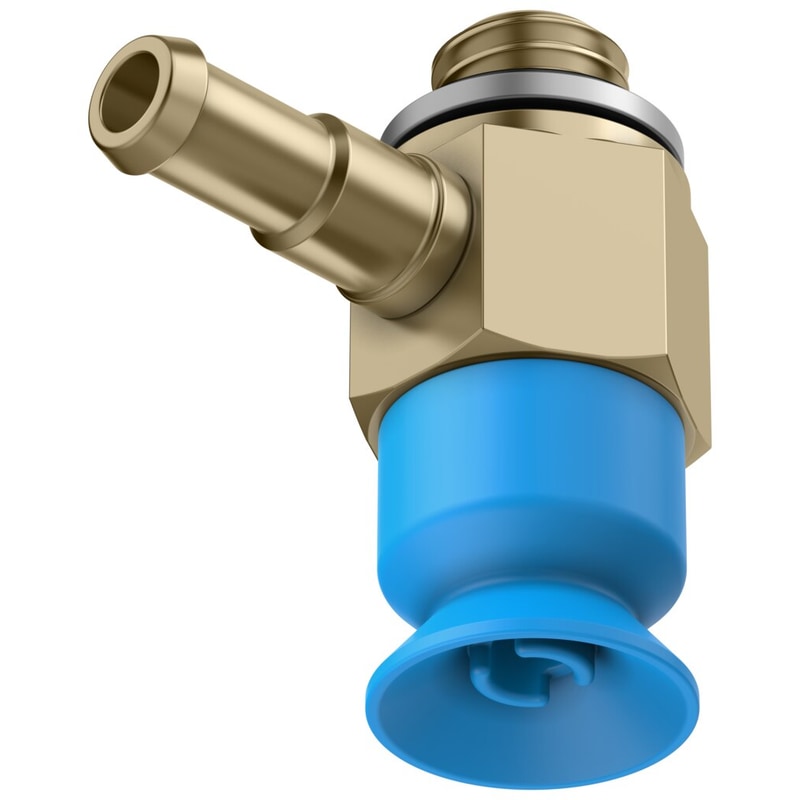

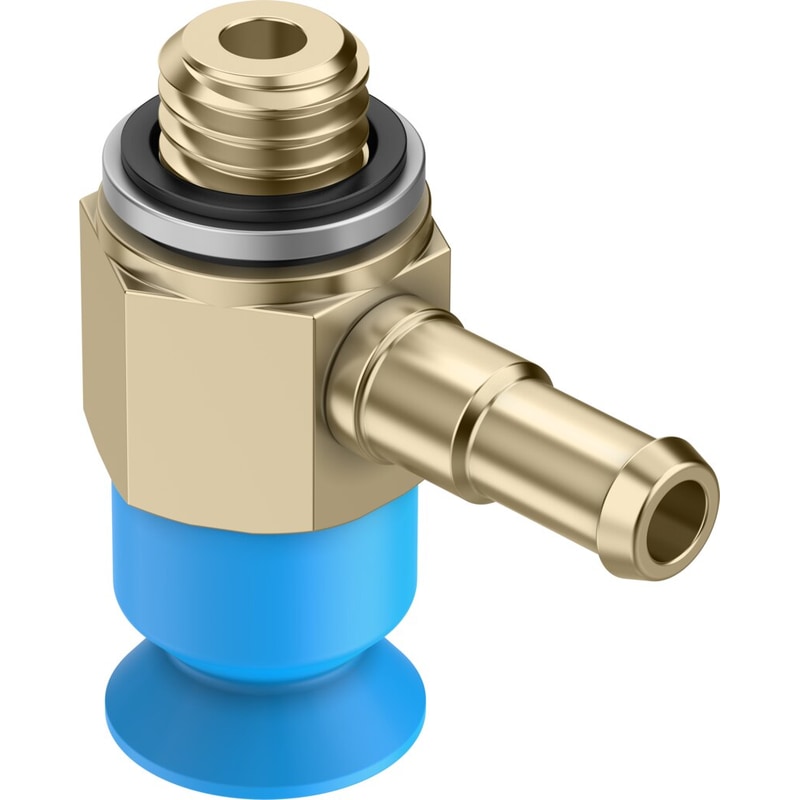

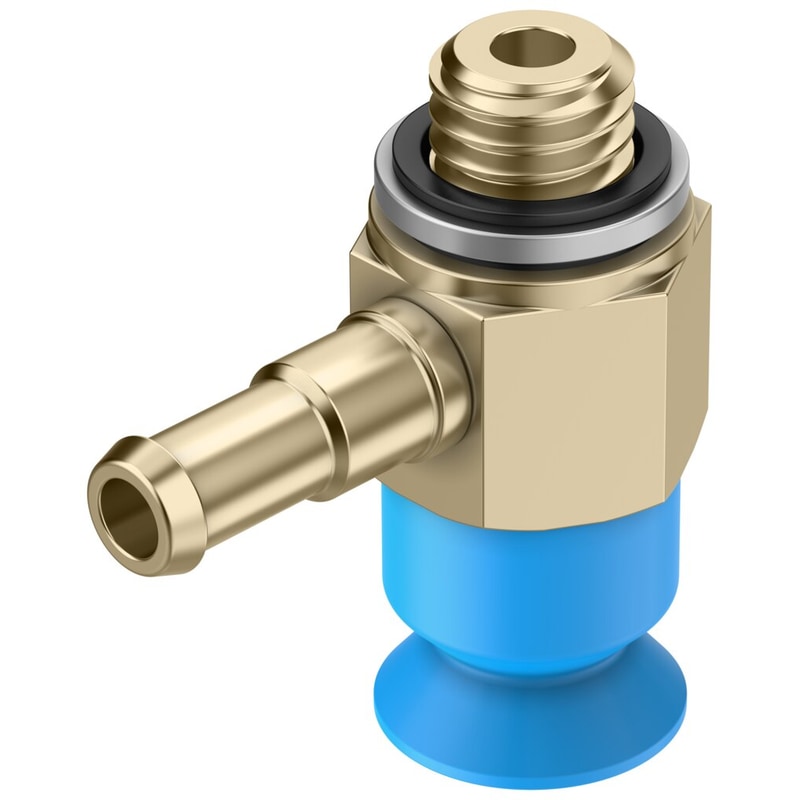

Vacuum suction cup
VAS-8-M5-S-PUR-B
8025969
GTIN 4052568063085
Vendor Festo
- Suction cup diameter
- 8 mm
- Effective suction cup diameter
- 7.1 mm
- Suction cup shape
- Round, flat
- Suction cup material
- TPE-U(PU)
Regular price
$18.71
Unit price
VAS-8-M5-S-PUR-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAS-8-M5-S-PUR-B
Regular price
$18.71
Unit price
VAS-8-M5-S-PUR-B is backordered and will ship as soon as it is back in stock.
suction cup VAS-8-M5-S-PUR-B Suction cup height compensator=0,9 mm, Nominal size=2 mm, suction cup diameter=8 mm, suction cup volume=0,095 cm3, Effective suction diameter=7,1 mm
| Suction cup height compensator | 0.9 mm |
|---|---|
| Nominal size | 2 mm |
| suction cup diameter | 8 mm |
| suction cup volume | 0.095 cm3 |
| Effective suction diameter | 7.1 mm |
| Position of connection | At the side |
| Assembly position | Any |
| Suction cup shape | round flat |
| Operating pressure | '-0.95 ... 0 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-20 ... 60 °C |
