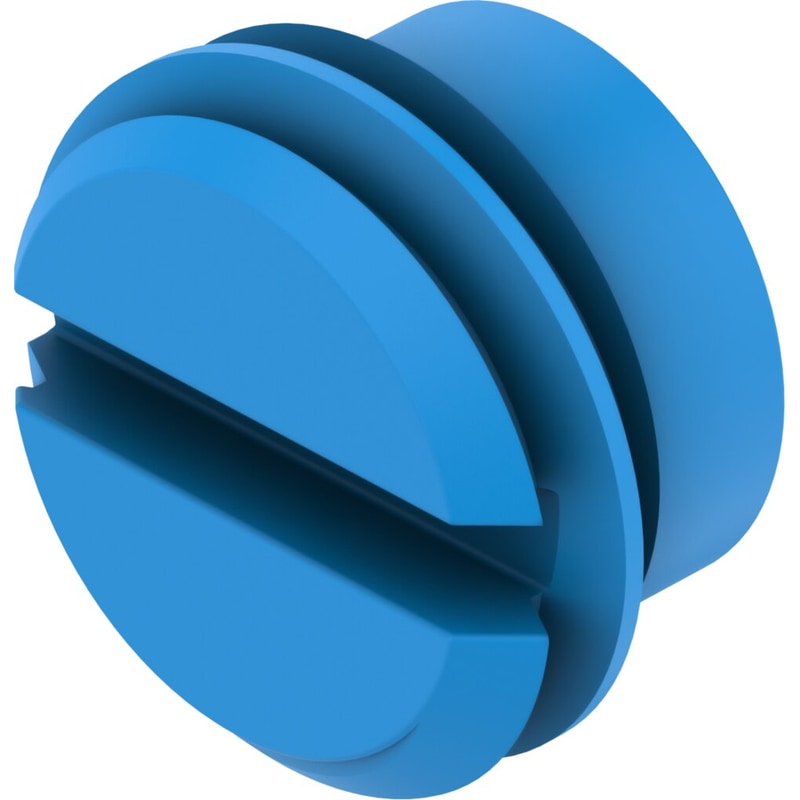

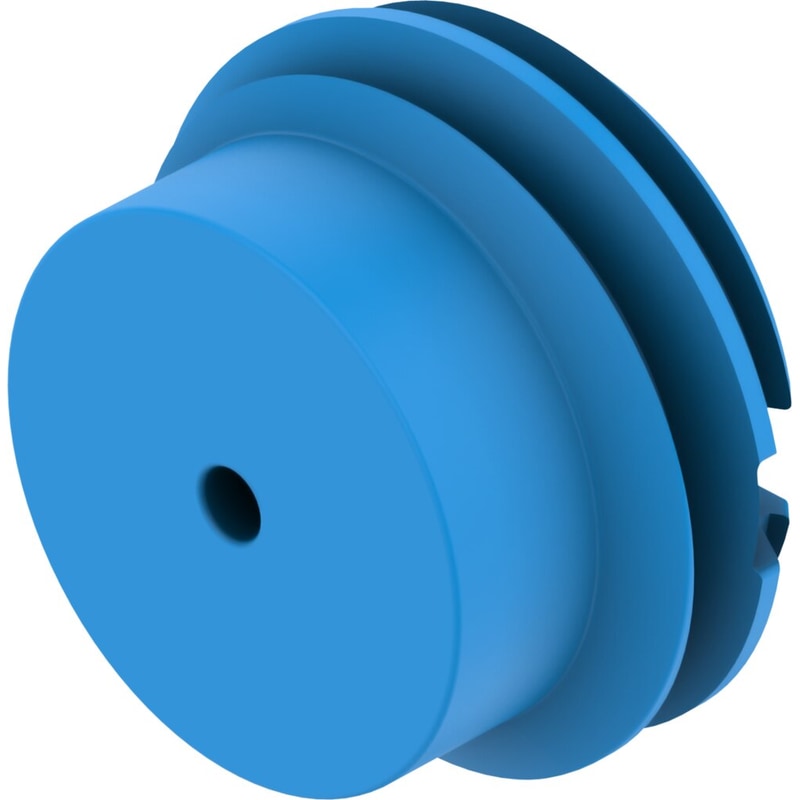

Flow control
VFFG-T-M5-6
8025710
GTIN 4052568063023
Vendor Festo
Regular price
$2.18
Unit price
VFFG-T-M5-6 Flow control is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VFFG-T-M5-6
Regular price
$2.18
Unit price
VFFG-T-M5-6 Flow control is backordered and will ship as soon as it is back in stock.
flow control VFFG-T-M5-6 Valve function=Throttle function, Mounting type=with thread, Standard nominal flow rate in flow control direction=14,6 l/min, Operating pressure=-0,9 - 10 bar, Ambient temperature=-5 - 60 °C
| Valve function | Throttle function |
|---|---|
| Mounting type | with thread |
| Standard nominal flow rate in flow control direction | 14.6 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Ambient temperature | '-5 ... 60 °C |
| Nominal size | 0.6 mm |
| b value | 0.5 |
| C value | 0.05 l/sbar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Storage temperature | '-20 ... 60 °C |
| Product weight | 0.5 g |
| Materials note | Conforms to RoHS |
