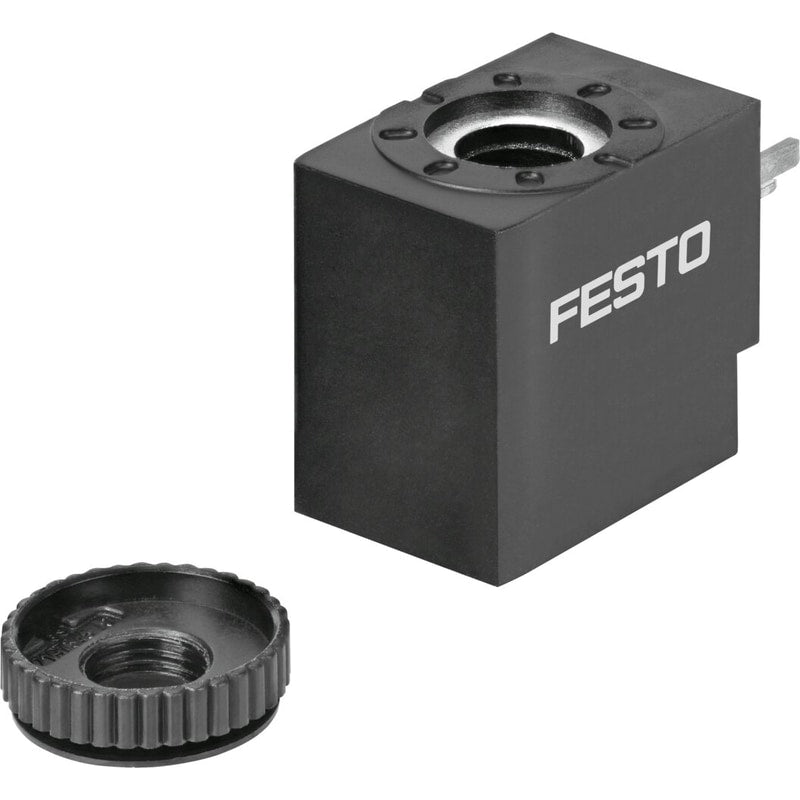

Solenoid coil
VACS-C-C1-16B
8025334
GTIN 4052568279110
Vendor Festo
- Electrical connection
- Form C - as per EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 110/120 V AC: 50/60 Hz, initial power 2.8 VA, holding power 1.9 VA
- Degree of protection
- IP65
- Restricted ambient and media temperature
- -10 - 50 °C
Regular price
$9.37
Unit price
VACS-C-C1-16B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACS-C-C1-16B
Regular price
$9.37
Unit price
VACS-C-C1-16B is backordered and will ship as soon as it is back in stock.
solenoid coil VACS-C-C1-16B Type C connection pattern, to EN 175 301, 120 V AC/60 Hz and 110 V AC/50-60 Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=110/120 V AC: 50/60 Hz, pick-up power 2.3 VA, holding power 1.7 VA, Surge strength=2,5 kV
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 110/120 V AC: 50/60 Hz, pick-up power 2.3 VA, holding power 1.7 VA |
| Surge strength | 2.5 kV |
| Degree of contamination | 3 |
| Permissible voltage fluctuation | '+/- 10 % |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Protection class | IP65 |
| Ambient temperature | '-10 ... 50 °C |
| Electrical connection | to EN 175301-803Plug pattern type C to EN 175301-803 |
| Mounting type | With knurled nut |
