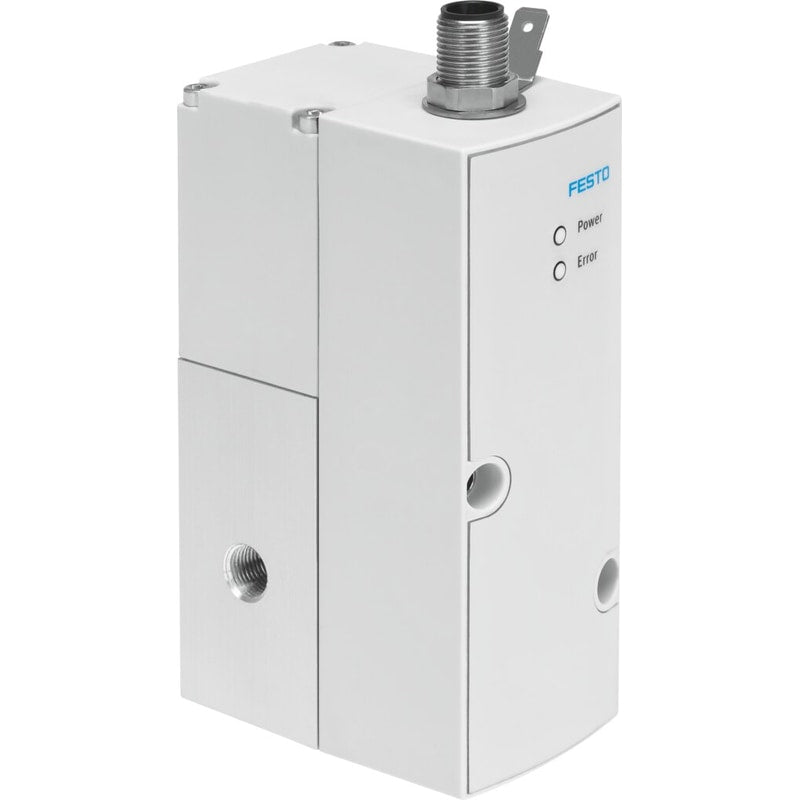

Proportional pressure control valve
VPPM-6L-L-1-G18-0L2H-LK-S1
8024258
GTIN 4052568278960
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- G1/8
- Pressure regulation range
- 0.02 bar - 2 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 380 l/min
Regular price
$1,009.03
Unit price
VPPM-6L-L-1-G18-0L2H-LK-S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPM-6L-L-1-G18-0L2H-LK-S1
Regular price
$1,009.03
Unit price
VPPM-6L-L-1-G18-0L2H-LK-S1 is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Nominal width pressurization | 6 mm |
| Exhaust nominal width | 4.5 mm |
| Type code | VPPM |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections |
| Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 995303 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve |
| Display type | LED |
| Pressure regulation range | 0.02 bar ... 2 bar |
| Inlet pressure 1 | 0 bar ... 4 bar |
| Max. pressure hysteresis | 0.01 bar |
| Standard nominal flow rate | 380 l/min |
| DC operating voltage range | 18 V ... 30 V |
| Max. current consumption | 300 mA |
| Duty cycle | 1 |
| Protocol | I-PortIO-Link® |
| Residual ripple | 0.1 |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 10 °C ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 60 °C |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| Product weight | 400 g |
| Linearity error FS | 0.01 |
| Temperature coefficient | 0.04 %/K |
| Repetition accuracy FS | 0.005 |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, communication mode | COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd) |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 2 Byte |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, minimum cycle time | 0.5 ms |
| Type of mounting | With accessoriesOptionally:With through-hole |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant |
| Housing material | AnodizedWrought aluminum alloy |
