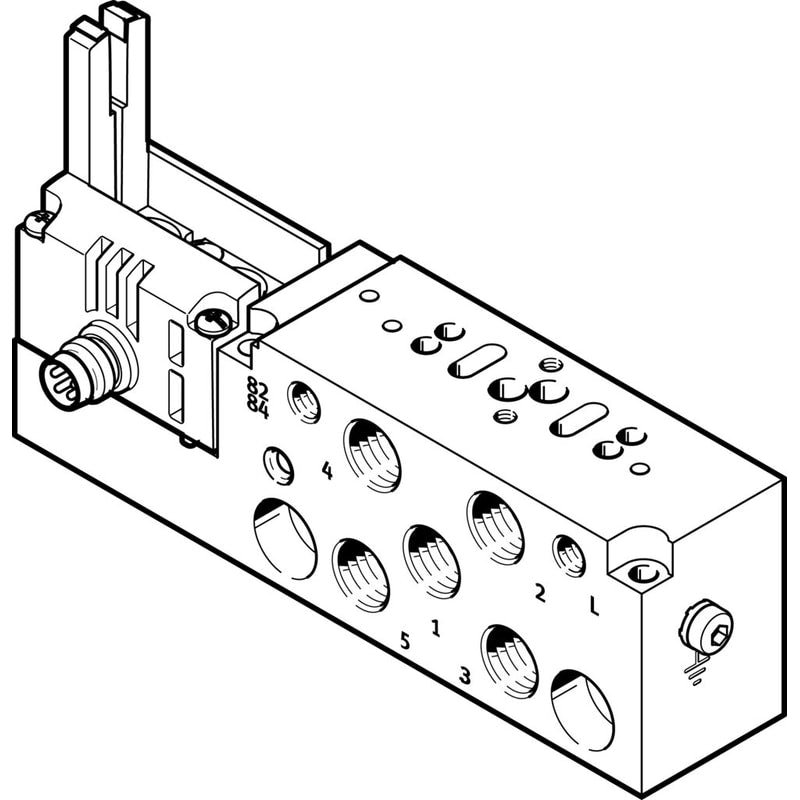

Sub-base
VMPA14-IC-AP-S-1
8023667
GTIN 4052568278885
Vendor Festo
Regular price
$127.23
Unit price
VMPA14-IC-AP-S-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-IC-AP-S-1
Regular price
$127.23
Unit price
VMPA14-IC-AP-S-1 is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Pilot pressure MPa | 0.3 MPa ... 0.8 MPa |
| Width | 24.4 mm |
| Length | 107.3 mm |
| Width dimension | 14.9 mm |
| Type code | VMPA14 |
| Operating pressure | -0.9 bar ... 10 bar |
| Pilot pressure | 3 bar ... 8 bar |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | c UL us - Recognized (OL) |
| Product weight | 150 g |
| Electrical connection | M8Plug |
| Sub-base mounting type | With through-hole |
| Pilot air port 12/14 | M5 |
| Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8M7 |
| Pneumatic connection 2 | G1/8M7 |
| Pneumatic connection 3 | M7G1/8 |
| Pneumatic connection 4 | G1/8M7 |
| Pneumatic connection 5 | G1/8M7 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
