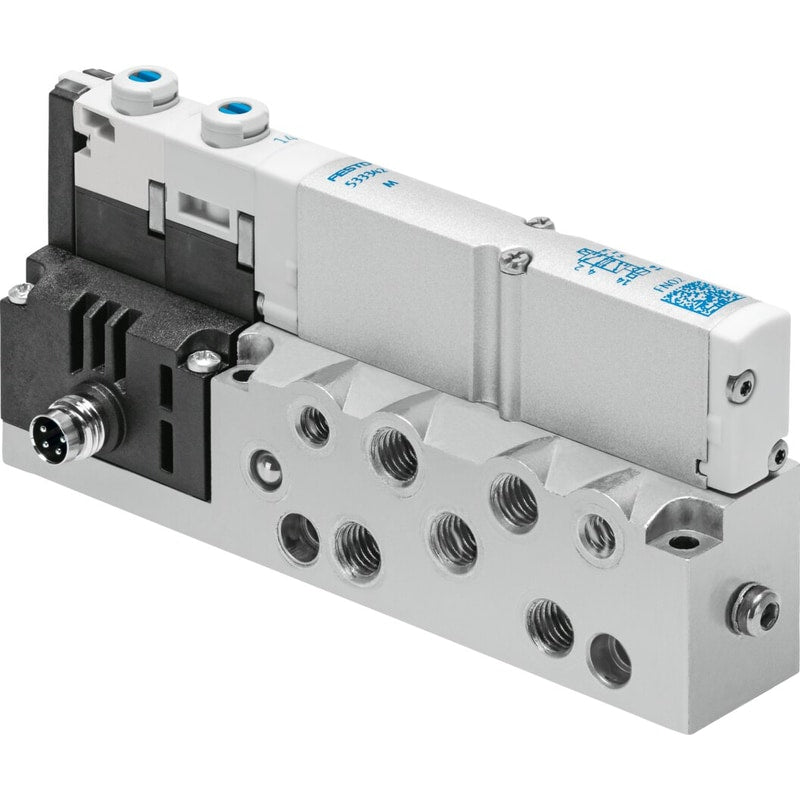

Air solenoid valve
VMPA14-M1H-J-G1/8-PI
8023542
GTIN 4052568278571
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 590 l/min
- Pneumatic connection 1
- G1/8
- Actuation type
- Electrical
Regular price
$307.95
Unit price
VMPA14-M1H-J-G1/8-PI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-M1H-J-G1/8-PI
Regular price
$307.95
Unit price
VMPA14-M1H-J-G1/8-PI is backordered and will ship as soon as it is back in stock.
solenoid valve VMPA14-M1H-J-G1/8-PI Valve function=5/2 bistable, Type of actuation=electrical, Valve size=14 mm, Standard nominal flow rate=590 l/min, Operating pressure=3 - 8 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Valve size | 14 mm |
| Standard nominal flow rate | 590 l/min |
| Operating pressure | 3 ... 8 bar |
| Design structure | Piston slide |
| Protection class | IP65to IEC 60529 |
| Authorisation | c CSA us (OL)c UL us - Recognized (OL) |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
| Type of piloting | Piloted |
