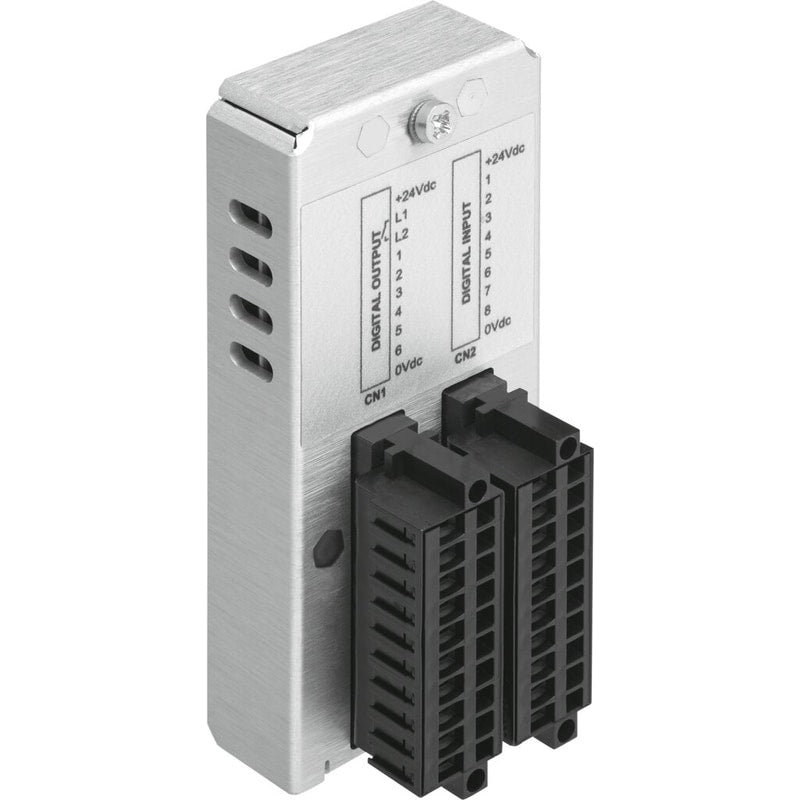

Input/output module
CDPX-EA-V2
8023321
GTIN 4052568258498
Vendor Festo
Regular price
$597.69
Unit price
CDPX-EA-V2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDPX-EA-V2
Regular price
$597.69
Unit price
CDPX-EA-V2 is backordered and will ship as soon as it is back in stock.
| Installation depth | 34 mm |
|---|---|
| Height | 89 mm |
| Length | 41 mm |
| Type code | CDPX |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | 5 - 85 %Non-condensing |
| Degree of protection | IP20 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | c UL us - Listed (OL)C-Tick |
| Product weight | 80 g |
| Note on materials | RoHS-compliant |
| Digital inputs, number | 8 |
| Digital inputs, input signal delay | 10 ms3 ms0.1 ms20 ms |
| Digital inputs, input voltage/current | 24 V DC |
| Digital inputs, nominal value for TRUE | 12 - 30 V DC |
| Digital inputs, nominal value for FALSE | 0 V |
| Digital inputs, electrical isolation | yes |
| Analog inputs, linearity error at 25°C | yes |
| Digital outputs, number | 7 |
| Digital outputs, contact | 1 relay |
| Digital outputs, output voltage | 12 - 30 V DC |
| Digital outputs, output current | 0.5Â A |
| Digital outputs, short circuit proof | yes |
| Digital outputs, overload-proof | yes |
