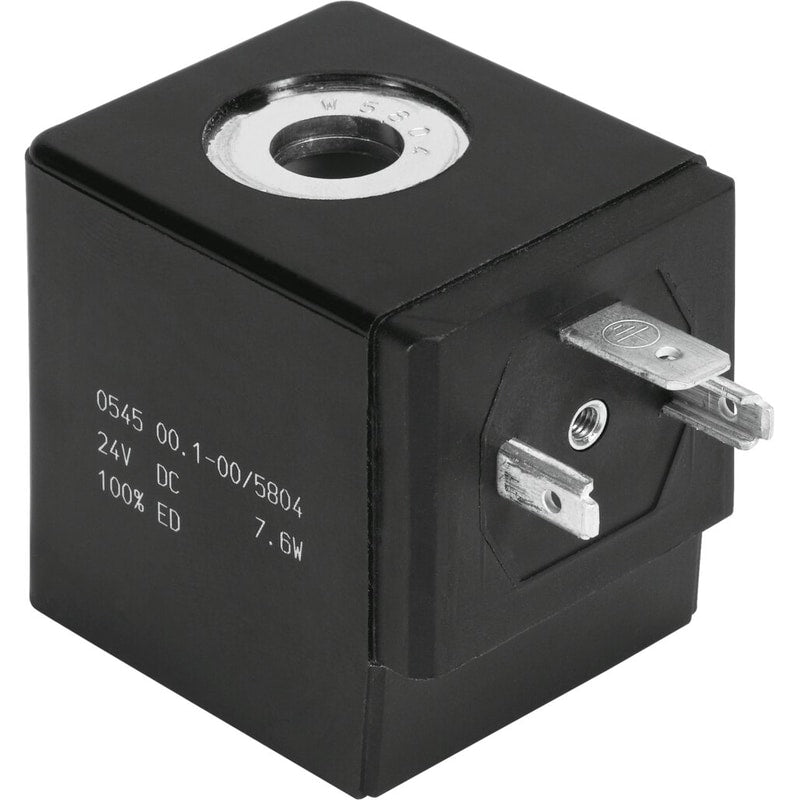

Solenoid coil
VACN-H1-A1-1
8022877
GTIN 4052568062828
Vendor Festo
- Electrical connection
- Form A - Plug - as per DIN EN 175301-803 - Rectangular design
- Type of mounting
- With lock nut
- Coil characteristics
- 24 V DC: 11.9 W
- Degree of protection
- IP65
- Restricted ambient and media temperature
- (for limited duty cycle) - -20 - 60 °C
Regular price
$40.52
Unit price
VACN-H1-A1-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACN-H1-A1-1
Regular price
$40.52
Unit price
VACN-H1-A1-1 is backordered and will ship as soon as it is back in stock.
solenoid coil VACN-H1-A1-1 Solenoid coil H1 for 14 mm armature, type A connection pattern, to EN 175 0301, 24 V DC Assembly position=Any, Switching position indicator=No, Min. pickup time=12 ms, Duty cycle=100%, Power factor cos {phi}=0,7
| Assembly position | Any |
|---|---|
| Switching position indicator | No |
| Min. pickup time | 12 ms |
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 24 V DC: 11.9 W |
| Permissible frequency fluctuation | '+/- 10 % |
| Permissible voltage fluctuation | '+/- 10 % |
| Restriction ambient and medium temperature | '-20 - 60 °C(with limited duty cycle) |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Protection class | IP65 |
| Note on degree of protection | in assembled condition |
| Ambient temperature | '-20 ... 50 °C |
