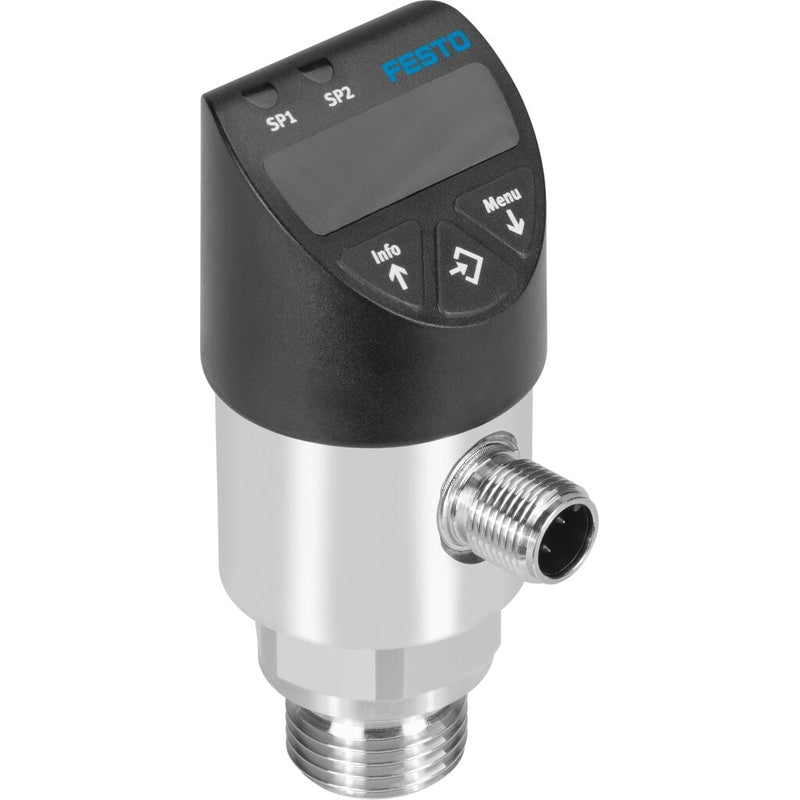

SPAW-P50R-G12M-2NV-M12

pressure sensor SPAW-P50R-G12M-2NV-M12 For measuring media pressures, pressure measuring range between 0 and +50 bar, pneumatic connection male thread G1/2. Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Contains PWIS substances, * Conforms to RoHS), Measured variable=Relative pressure, Measurement method=Thin metal film pressure sensor

Authorisation	RCM Markc UL us - Listed (OL)
CE mark (see declaration of conformity)	to EU directive for EMC
Materials note	Contains PWIS substancesConforms to RoHS
Measured variable	Relative pressure
Measurement method	Thin metal film pressure sensor
Pressure measuring range, initial value	0 bar
Pressure measuring range, final value	50 bar
Overload range	100 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [-:-:-]Gaseous mediaFluid media
Medium temperature	'-20 ... 85 °C
Ambient temperature	0 ... 80 °C
Accuracy, FS	1 %FS
Repetition accuracy in ± %FS	0.15 %FS
