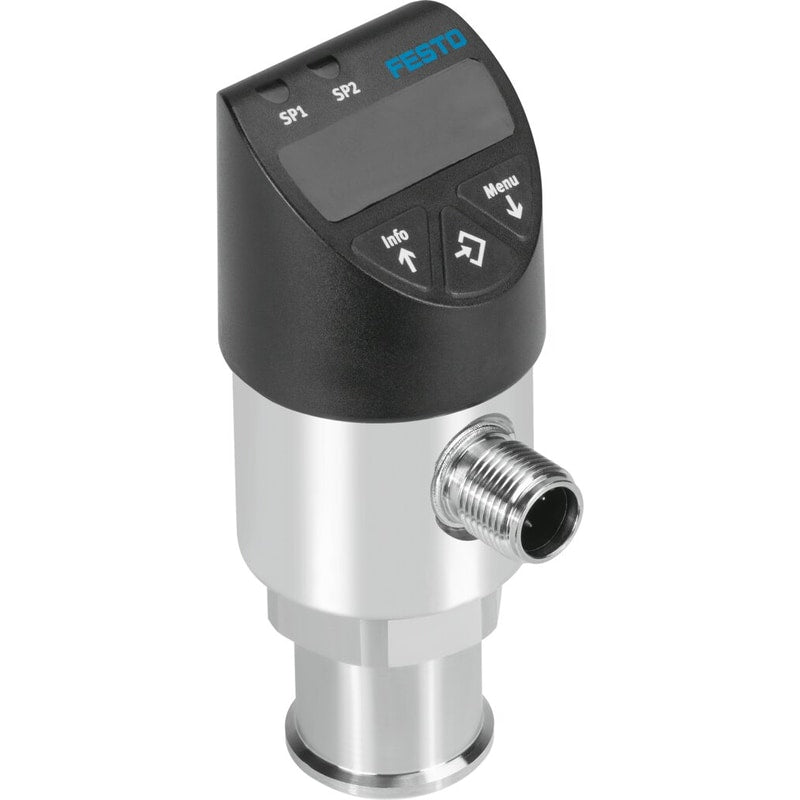

Pressure sensor
SPAW-P100R-G14F-2PA-M12
8022784
GTIN 4052568257859
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 100 bar
- Switching element function
- Switchable
- Pneumatic connection
- Internal thread G1/4
Regular price
$510.02
Unit price
SPAW-P100R-G14F-2PA-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAW-P100R-G14F-2PA-M12
Regular price
$510.02
Unit price
SPAW-P100R-G14F-2PA-M12 is backordered and will ship as soon as it is back in stock.
pressure sensor SPAW-P100R-G14F-2PA-M12 For measuring media pressures, pressure measuring range between 0 and +100 bar, pneumatic connection female thread G1/4. Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Contains PWIS substances, * Conforms to RoHS), Measured variable=Relative pressure, Measurement method=Thin metal film pressure sensor
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Thin metal film pressure sensor |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 100 bar |
| Overload range | 200 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-]Gaseous mediaFluid media |
| Medium temperature | '-20 ... 85 °C |
| Ambient temperature | 0 ... 80 °C |
| Accuracy, FS | 1 %FS |
| Repetition accuracy in ± %FS | 0.15 %FS |
