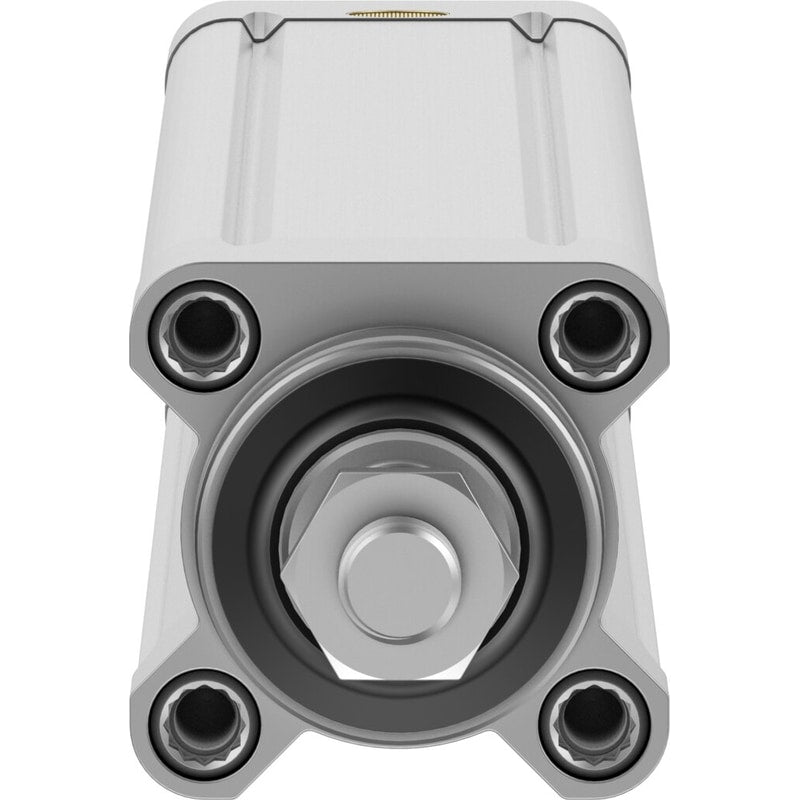

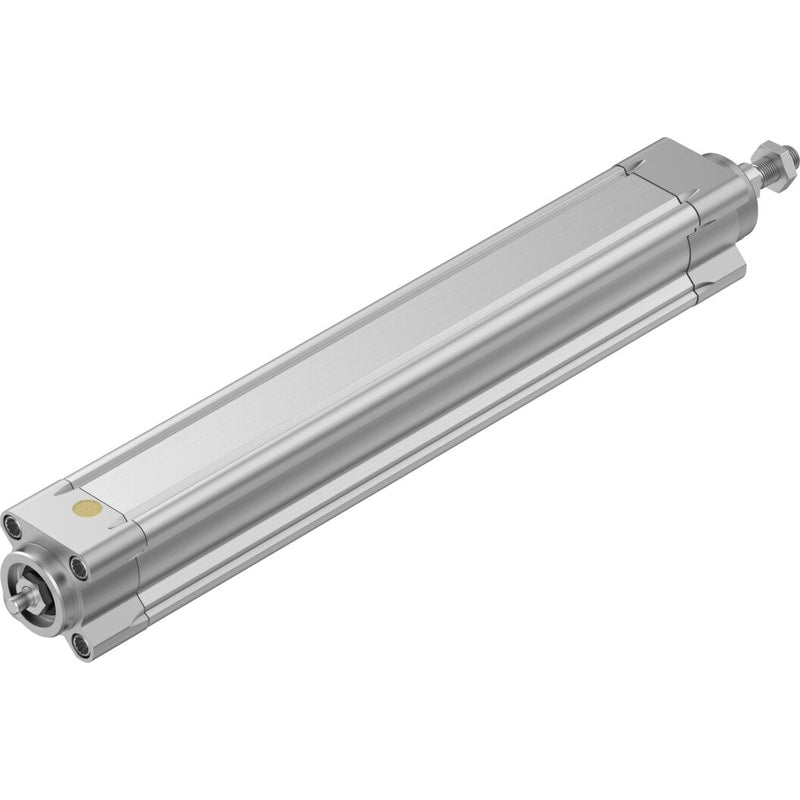

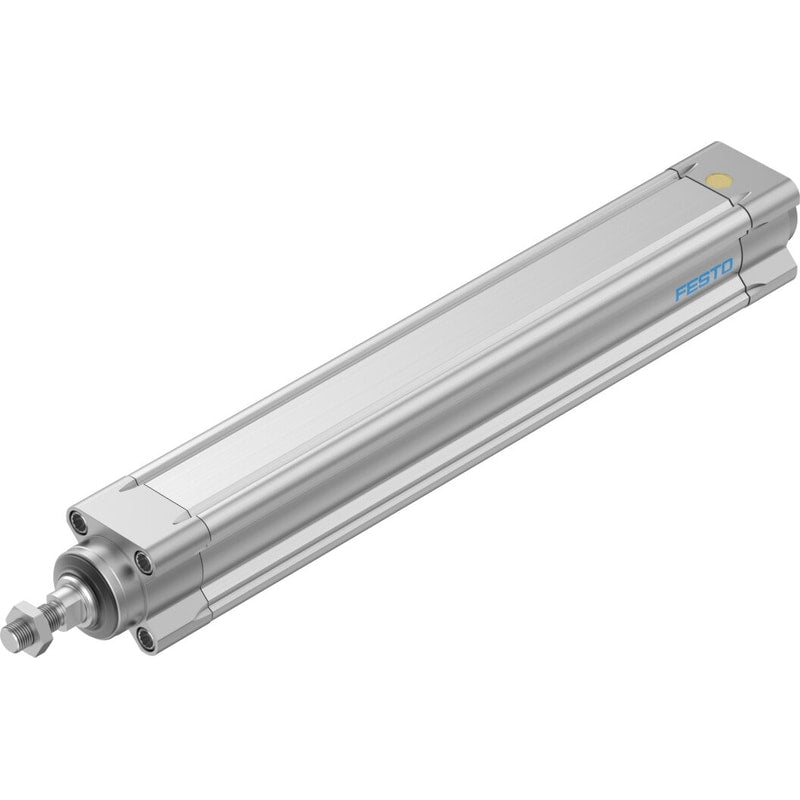

Electric cylinder
ESBF-BS-32-400-10P
8022568
GTIN 4052568278250
Vendor Festo
- Size
- 32
- Max. feed force Fx
- 1000 N
- Repetition accuracy
- ±0.01 mm
- Stroke
- 400 mm
Regular price
$1,662.55
Unit price
ESBF-BS-32-400-10P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESBF-BS-32-400-10P
Regular price
$1,662.55
Unit price
ESBF-BS-32-400-10P is backordered and will ship as soon as it is back in stock.
electric cylinder ESBF-BS-32-400-10P With ball screw, electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. Working stroke=400 mm, Size=32, Stroke=400 mm, Piston rod thread=M10x1,25, Reversing backlash=40 µm
| Working stroke | 400 mm |
|---|---|
| Size | 32 |
| Stroke | 400 mm |
| Piston rod thread | M10x1,25 |
| Reversing backlash | 40 µm |
| Spindle diameter | 12 mm |
| Spindle pitch | 10 mm/U |
| Max. angular deflection of piston rod +/- | 0.25 deg |
| Based on the standard | ISO 15552 |
| Assembly position | Any |
| Piston-rod end | Male thread |
| Motor type | Stepper motorServomotor |
| Position detection | For proximity sensor |
