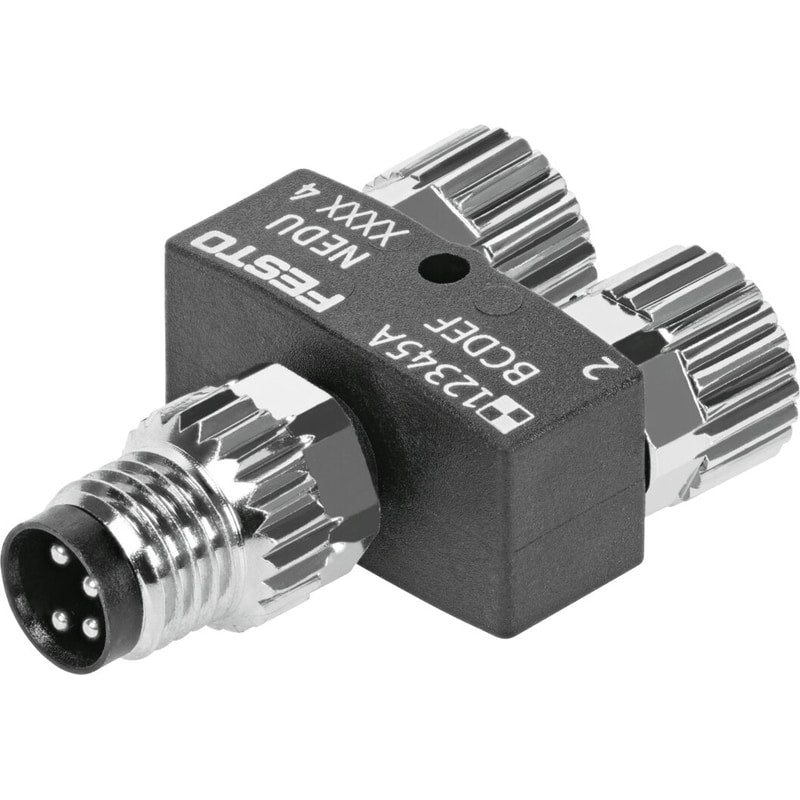

Distributor
NEDY-L2R1-V1-M8G3-N-M8G4
8005312
GTIN 4052568278113
Vendor Festo
- Structural design
- Y-distributor without cable
- Degree of protection
- IP65 - IP68 - IP69K
- Current rating at 40° C
- 3 A
Regular price
$25.37
Unit price
NEDY-L2R1-V1-M8G3-N-M8G4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEDY-L2R1-V1-M8G3-N-M8G4
Regular price
$25.37
Unit price
NEDY-L2R1-V1-M8G3-N-M8G4 is backordered and will ship as soon as it is back in stock.
| Type code | NEDY |
|---|---|
| Based on norm | EN 61076-2-104 |
| Explosion prevention and protection | Observe the information on the certificateZone 2 (ATEX)Zone 22 (ATEX) |
| Design | Y-distributor without cable |
| Distributor type | 2 to 1 |
| Cable designation | Without label holder |
| Type of mounting | With through-hole for M2 screwWith accessories |
| Product weight | 27 g |
| Electrical connection 1, function | Control side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 991171 |
| Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | 2x socket |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 2, number of pins/wires | 3 |
| Electrical connection 2, occupied pins/wires | 3 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 0.125 |
| Surge resistance | 0.8 kV |
| Degree of protection | IP68IP65IP69K |
| Ambient temperature | -25 °C ... 85 °C |
| Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
| Storage temperature | -25 °C ... 85 °C |
| Note on materials | Free of copper and PTFEFree of phosphoric acid esterRoHS-compliantHalogen-free |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | PCTPE-U(PUR) |
| Housing colour | Black |
| Material of union nut | Brass, nickel-plated |
| Seals material | NBR |
| Material of pin contacts | Copper alloy, gold-plated |
| Threaded sleeve material | Brass, nickel-plated |
