Distributor

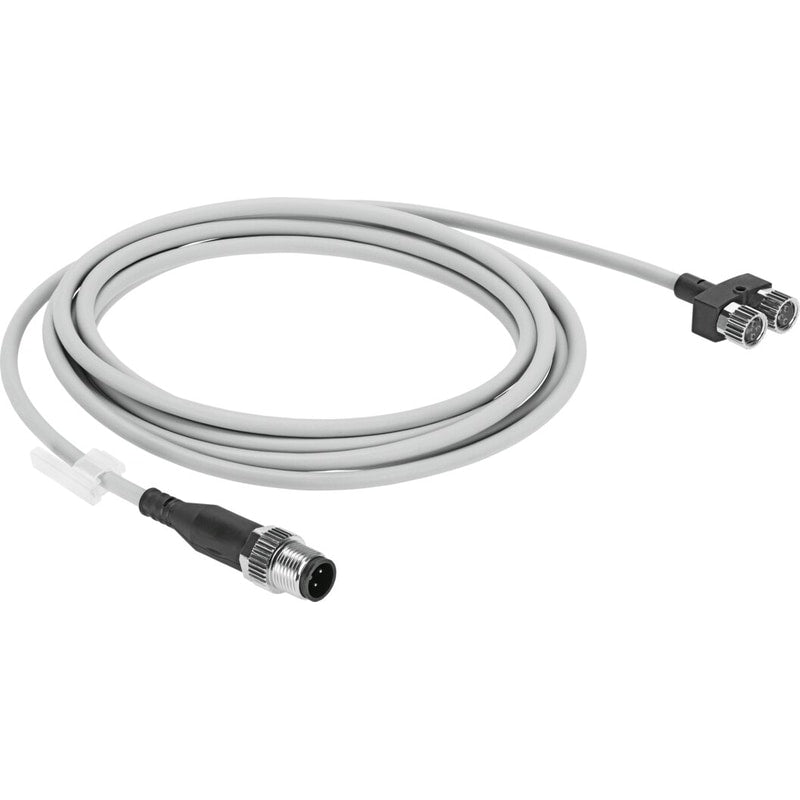

NEDY-L2R1-V1-M12G5-U-M12G4-5R
8005306
GTIN 4052568278083
Vendor Festo
- Structural design
- Y-distributor with cable on controller side
- Cable length 1
- 5 m
- Degree of protection
- IP65 - IP68 - IP69K
- Current rating at 40° C
- 4 A
Regular price
$67.96
Unit price
NEDY-L2R1-V1-M12G5-U-M12G4-5R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEDY-L2R1-V1-M12G5-U-M12G4-5R
Regular price
$67.96
Unit price
NEDY-L2R1-V1-M12G5-U-M12G4-5R is backordered and will ship as soon as it is back in stock.
| Type code | NEDY |
|---|---|
| Based on norm | EN 61076-2-101 |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 2 (ATEX)Observe the information on the certificate |
| Design | Y-distributor with cable on controller side |
| Distributor type | 2 to 1 |
| Cable designation | With label holder |
| Type of mounting | With through-hole for M2 screwWith accessories |
| Product weight | 164 g |
| Electrical connection 1, function | Control side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 995386 |
| Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | 2x socket |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 4 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 0.8 kV |
| Cable length 1 | 5 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Connector cable test conditions | Cable chain: 5 million cycles, bending radius 28 mmTest conditions on requestTorsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standard |
| Bending radius 1, flexible cable installation | 45 mm |
| Cable diameter 1 | 4.5 mm |
| Nominal conductor cross section | 0.25 mm² |
| Degree of protection | IP69KIP65IP68 |
| Ambient temperature | -25 °C ... 80 °C |
| Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
| Ambient temperature with flexible cable installation | -20 °C ... 80 °C |
| Storage temperature | -25 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Note on materials | Free of copper and PTFEFree of phosphoric acid esterRoHS-compliantHalogen-free |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of union nut | Brass, nickel-plated |
| Seals material | NBR |
| Material of pin contacts | Copper alloy, gold-plated |
| Threaded sleeve material | Brass, nickel-plated |
