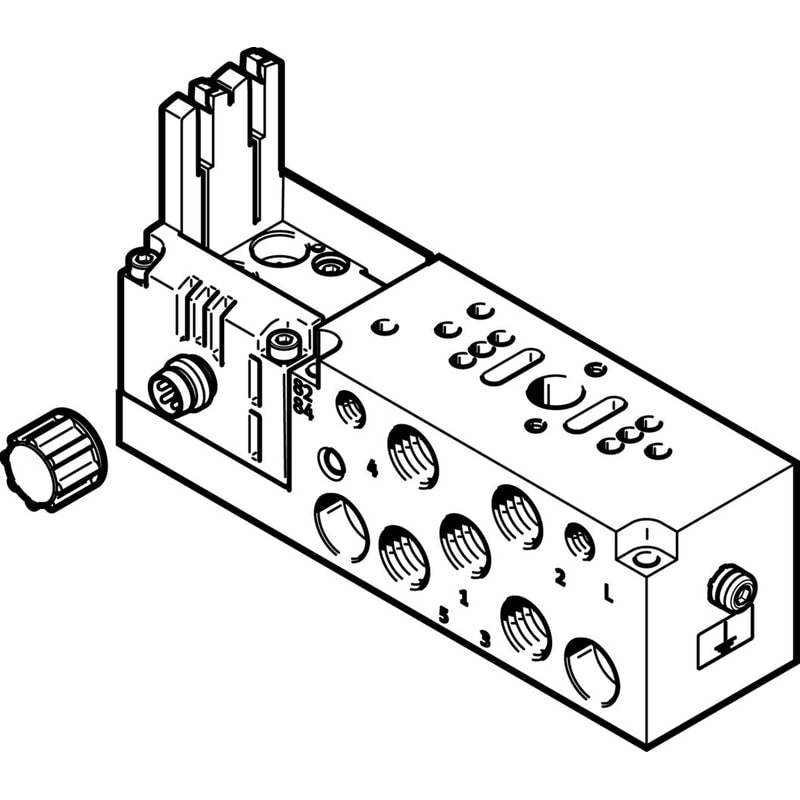

VMPA2-IC-AP-S-1-EX1E

sub-base VMPA2-IC-AP-S-1-EX1E Width=30,5 mm, Length=107,3 mm, Grid dimension=21 mm, Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar

Width	30.5 mm
Length	107.3 mm
Grid dimension	21 mm
Operating pressure	'-0.9 ... 10 bar
Pilot pressure	3 ... 8 bar
ATEX category Gas	II 3G
Explosion ignition protection type Gas	Ex nA IIC T4 X Gc
Explosion-proof ambient temperature	'-5°C <= Ta <= +50°C
CE mark (see declaration of conformity)	to EU directive for EMCto EU directive explosion protection (ATEX)
Corrosion resistance classification CRC	0 - No corrosion stress
Ambient temperature	'-5 ... 50 °C
Product weight	233 g
Electrical connection	PlugM8
