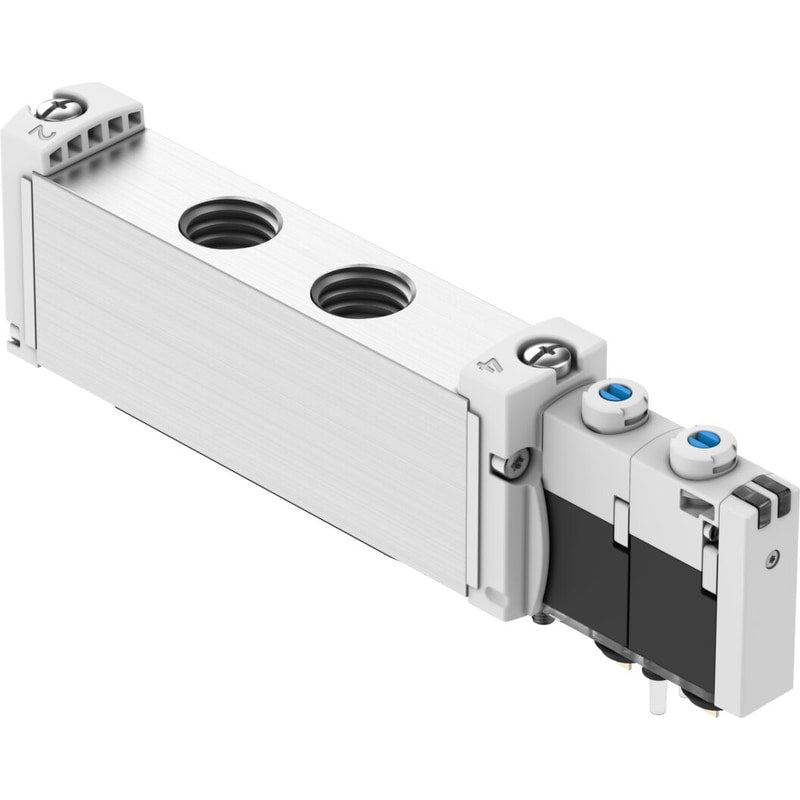

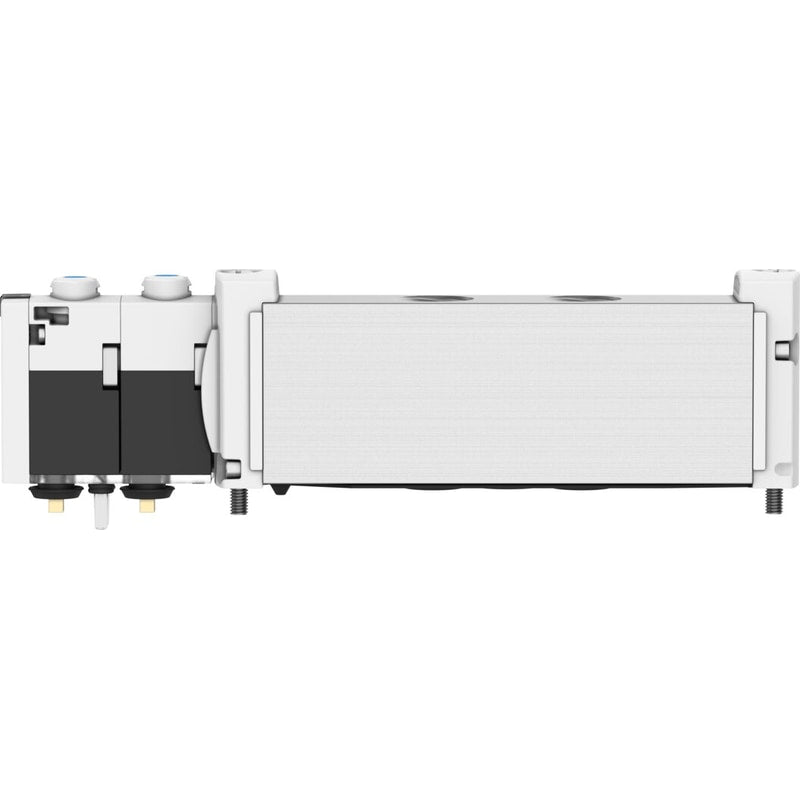

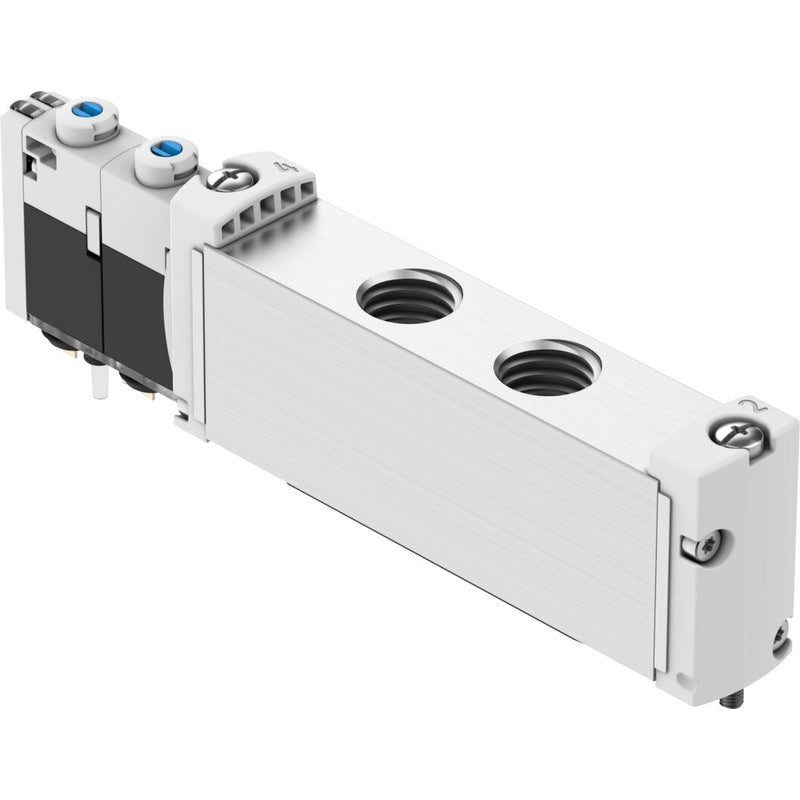

Air solenoid valve
VUVG-S18-B52-ZT-G14-1T1L
8004881
GTIN 4052568277468
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- G1/4
- Actuation type
- Electrical
Regular price
$131.02
Unit price
VUVG-S18-B52-ZT-G14-1T1L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVG-S18-B52-ZT-G14-1T1L
Regular price
$131.02
Unit price
VUVG-S18-B52-ZT-G14-1T1L is backordered and will ship as soon as it is back in stock.
Compact, all-purpose solenoid valve with electric central power supply and common ground.
| Valve function | 5/2, bistable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Degree of protection | IP67IP65 |
| Certification | c CSA us (OL)c UL us - Recognized (OL) |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Reversible |

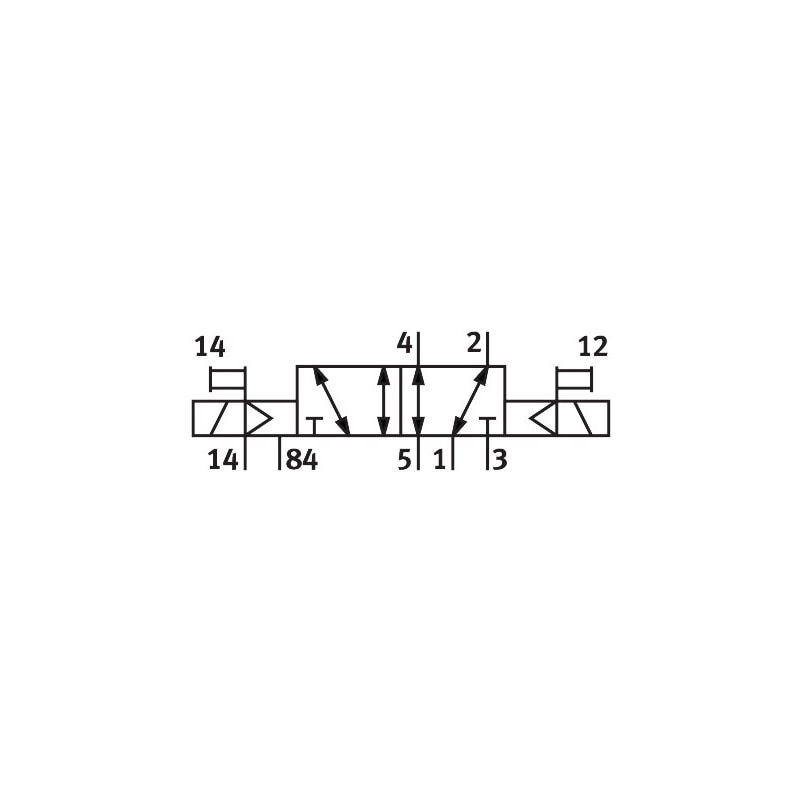

| Symbol | 00991125 |
| Signal status display | LED |
| Pilot pressure | 1.5 bar ... 8 bar |
| Max. switching frequency | 3 Hz |
| Changeover time | 12 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1600 µs |
| Max. negative test pulse on 1 signal | 3000 µs |
| Coil characteristics | 22 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
