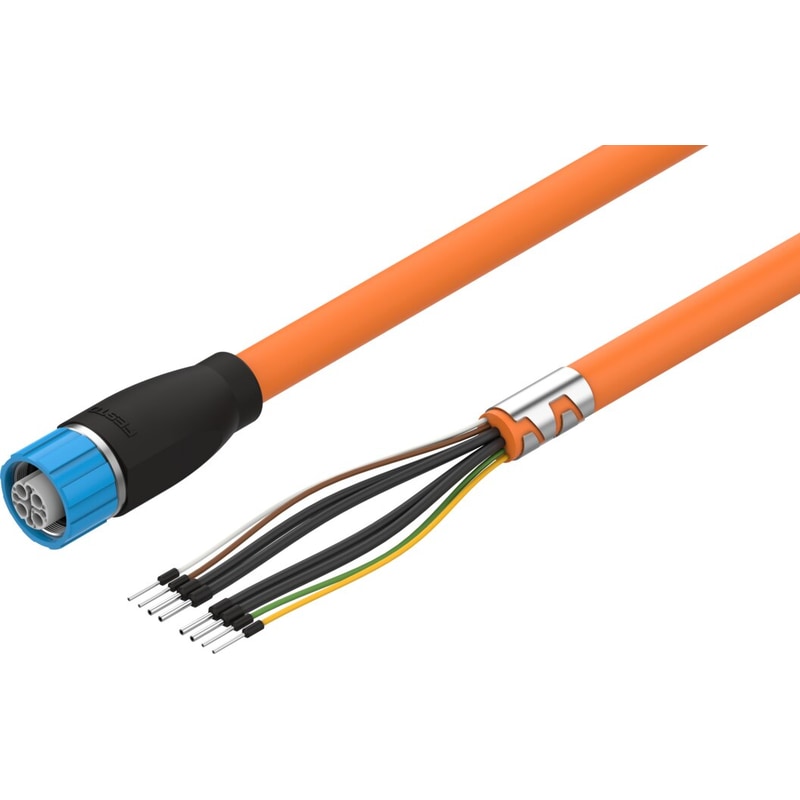

Motor cable
NEBM-M16G8-E-15-Q7-LE8
8003772
GTIN 4052568256449
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M16x0.75
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 15 m
Regular price
$596.16
Unit price
NEBM-M16G8-E-15-Q7-LE8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-M16G8-E-15-Q7-LE8
Regular price
$596.16
Unit price
NEBM-M16G8-E-15-Q7-LE8 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Based on norm | EN 61984 |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M16x0.75 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 995654 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 6 |
| DC operating voltage range | 0 V ... 600 V |
| Note on operating voltage range DC | 0 - 300 V for conductor cross-section of 0.25 mm² |
| Operating voltage range AC | 0 V ... 600 V |
| Note on operating voltage range AC | 0 - 300 V for conductor cross-section of 0.25 mm² |
| Current rating at 40°C | 0 |
| Note on acceptable current load at 40°C | 4 A for conductor cross-section of 0.25 mm² |
| Surge resistance | 6 kV |
| Cable length | 15 m |
| Cable characteristic | Suitable for energy chains |
| Bending radius, fixed cable installation | ≥ 55 mm |
| Bending radius, flexible cable installation | ≥ 110 mm |
| Cable diameter | 11 mm |
| Cable design | Shielded4 x 0.75 mm² + 2 x (2 x 0.25 mm²) |
| Nominal conductor cross section | 0.75 mm²0.25 mm² |
| Wire ends | Cable end sleeve |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -50 °C ... 90 °C |
| Ambient temperature with flexible cable installation | -40 °C ... 90 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Orange |
| Insulating sheath material | TPE-E |
