Non return valve
VBNF-LBA-G18-Q6
8001460
GTIN 4052568109578
Vendor Festo
Regular price
$119.97
Unit price
VBNF-LBA-G18-Q6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VBNF-LBA-G18-Q6
Regular price
$119.97
Unit price
VBNF-LBA-G18-Q6 is backordered and will ship as soon as it is back in stock.
Manually operated shut-off valve in robust plastic design and with plug connections
| Type code | QH |
|---|---|
| Valve function | 2/2 bistable |
| Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | QS-4 |
| Actuation type | Manual |
| Type of mounting | Line installation |
| Standard nominal flow rate | 148 l/min |
| Nominal width | 2.5 mm |
| Operating pressure | -1 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Sealing principle | Soft |
| Design | Ball valve |

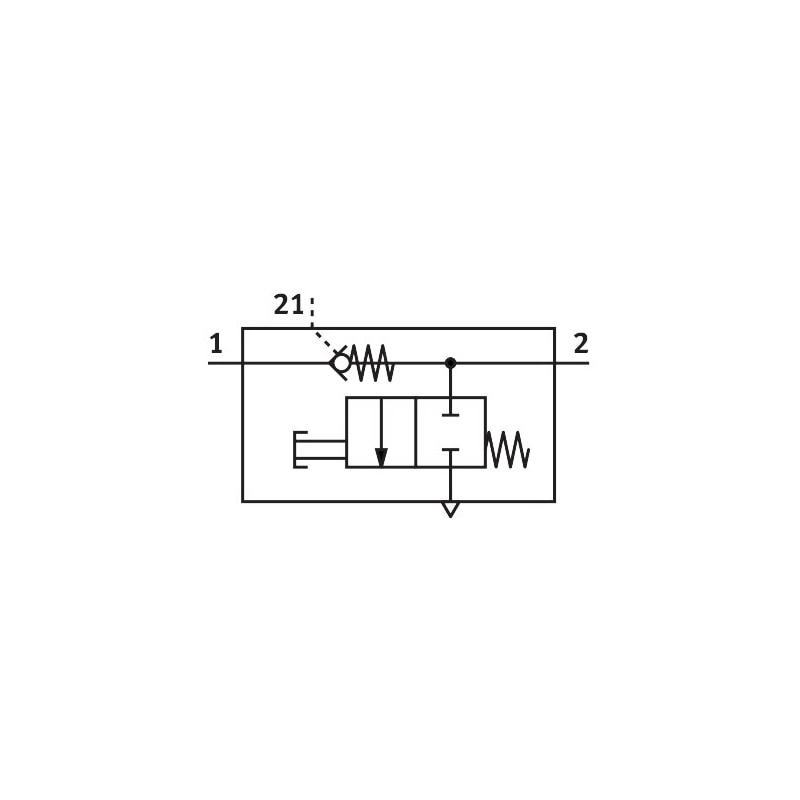

| Symbol | 00991458 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 12 g |
| Note on materials | RoHS-compliant |
