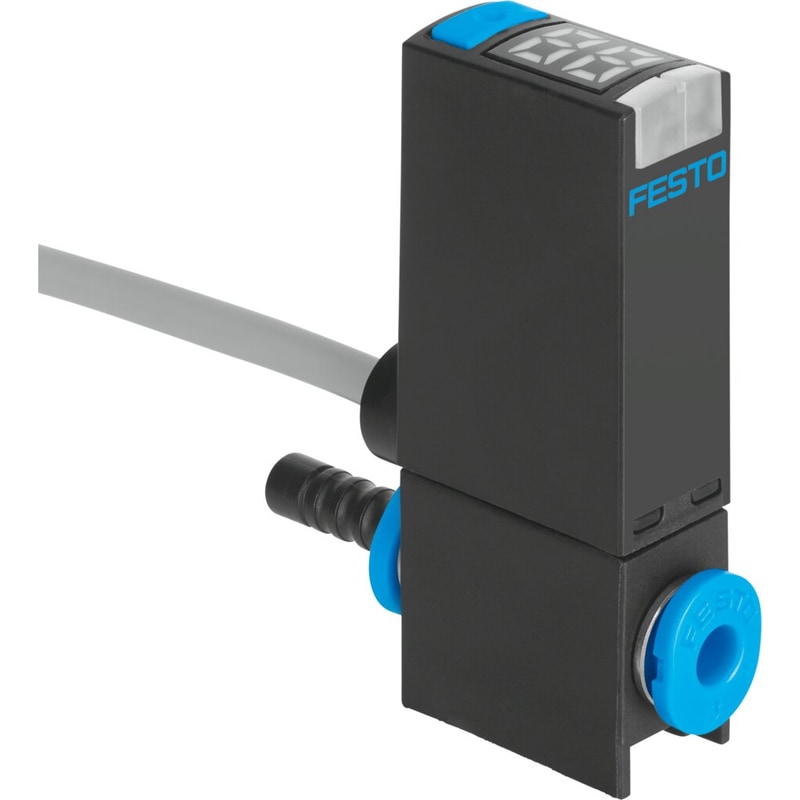

Pressure sensor
SPAE-V1R-Q3-PNLK-2.5K
8001442
GTIN 4052568277192
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- -1 bar
- Switching element function
- Switchable
- Pneumatic connection
- QS-3
- Electrical connection
- Cable - Open end
Regular price
$149.86
Unit price
SPAE-V1R-Q3-PNLK-2.5K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAE-V1R-Q3-PNLK-2.5K
Regular price
$149.86
Unit price
SPAE-V1R-Q3-PNLK-2.5K is backordered and will ship as soon as it is back in stock.
pressure sensor SPAE-V1R-Q3-PNLK-2.5K Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor with display
| Authorisation | RCM Markc UL us - Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor with display |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | '-1 bar |
| Overload range | 5 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Resolution of analogue/digital converter | 10 Bit |
