Pressure sensor
SPAU-V1R-F-Q6-L-PNLK-PNVBA-M12
8001228
GTIN 4052568277055
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- -1 bar
- Switching element function
- N/C contact/N/O contact switchable
- Pneumatic connection
- QS-6
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
Regular price
$241.67
Unit price
SPAU-V1R-F-Q6-L-PNLK-PNVBA-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAU-V1R-F-Q6-L-PNLK-PNVBA-M12
Regular price
$241.67
Unit price
SPAU-V1R-F-Q6-L-PNLK-PNVBA-M12 is backordered and will ship as soon as it is back in stock.

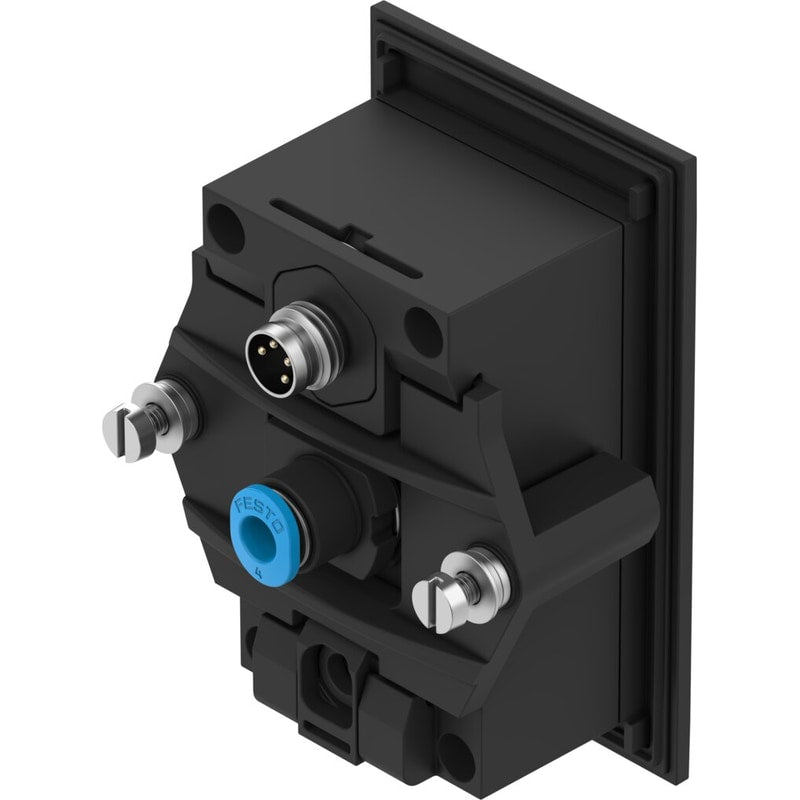

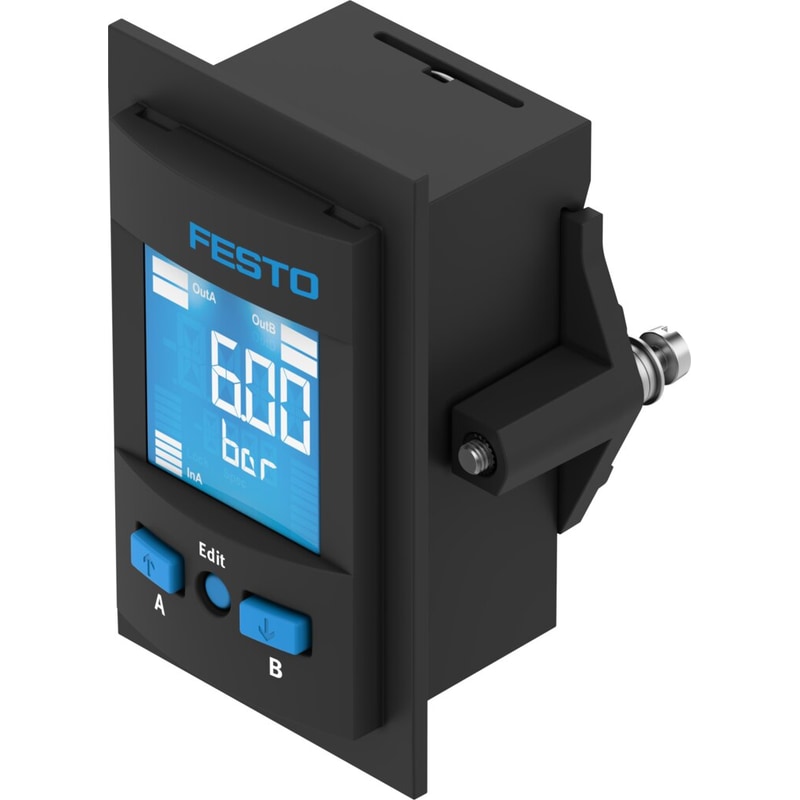

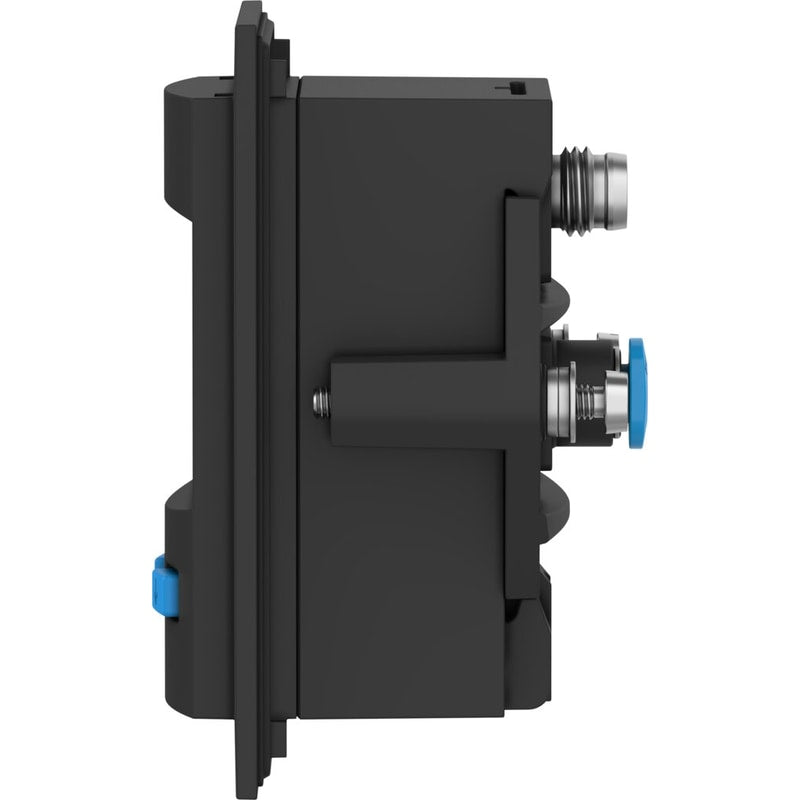

pressure sensor SPAU-V1R-F-Q6-L-PNLK-PNVBA-M12 Suitable for monitoring compressed air and non-corrosive gases, front panel mounting, with display. Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | '-1 bar |
| Overload range | 5 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
