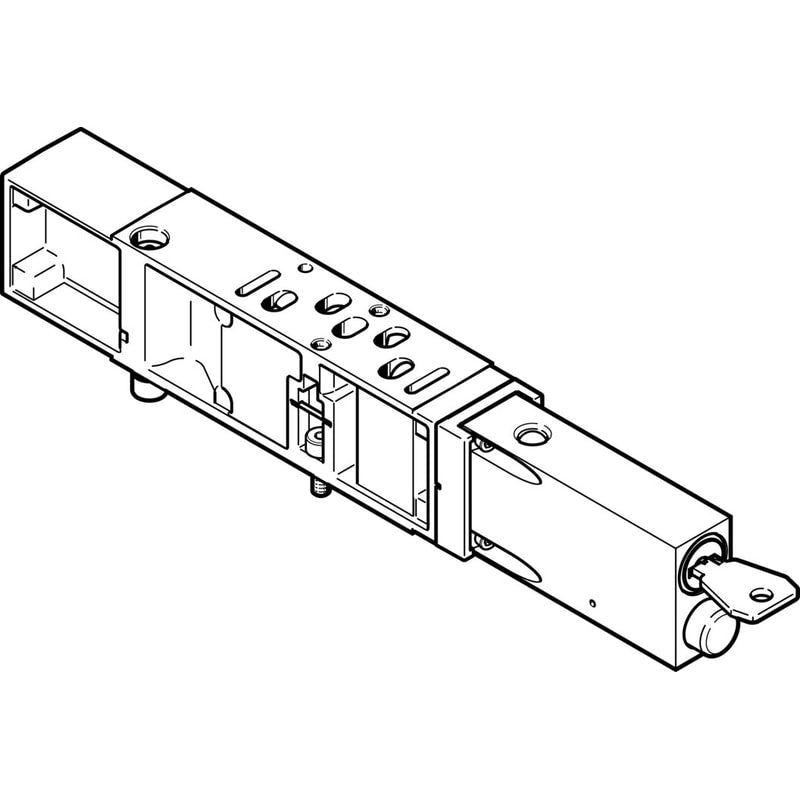

Vertical pressure shut-off plate
VABF-S4-1-L1D2-C
8001179
GTIN 4052568276775
Vendor Festo
Regular price
$329.38
Unit price
VABF-S4-1-L1D2-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S4-1-L1D2-C
Regular price
$329.38
Unit price
VABF-S4-1-L1D2-C is backordered and will ship as soon as it is back in stock.
| Width | 26 mm |
|---|---|
| Based on norm | ISO 15407-2 |
| Mounting position | Any |

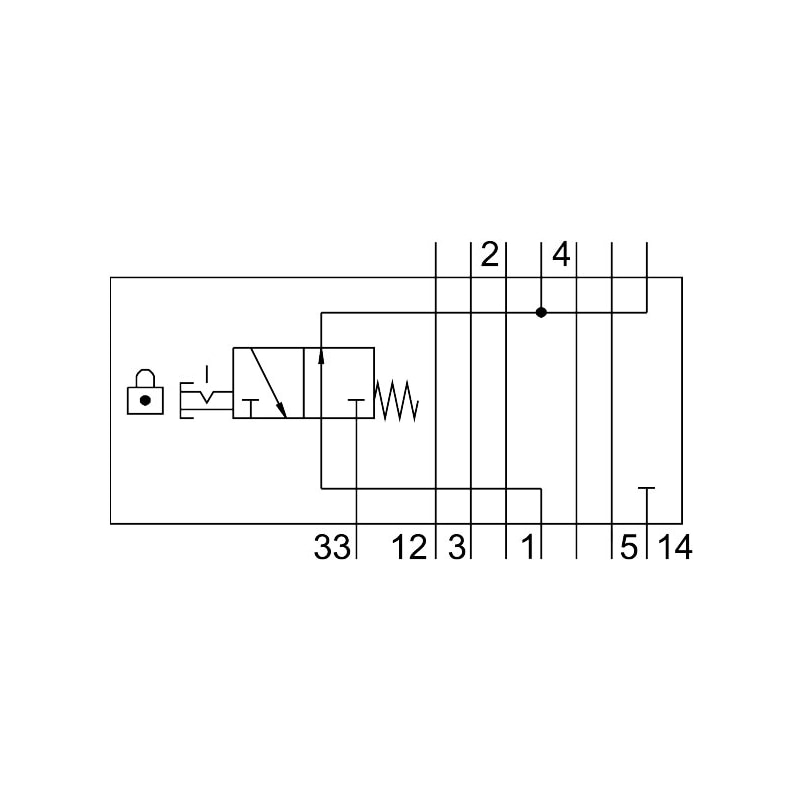

| Symbol | 00995593 |
| Operating pressure | 1 MPa |
| Operating pressure | 10 bar |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 290 g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
