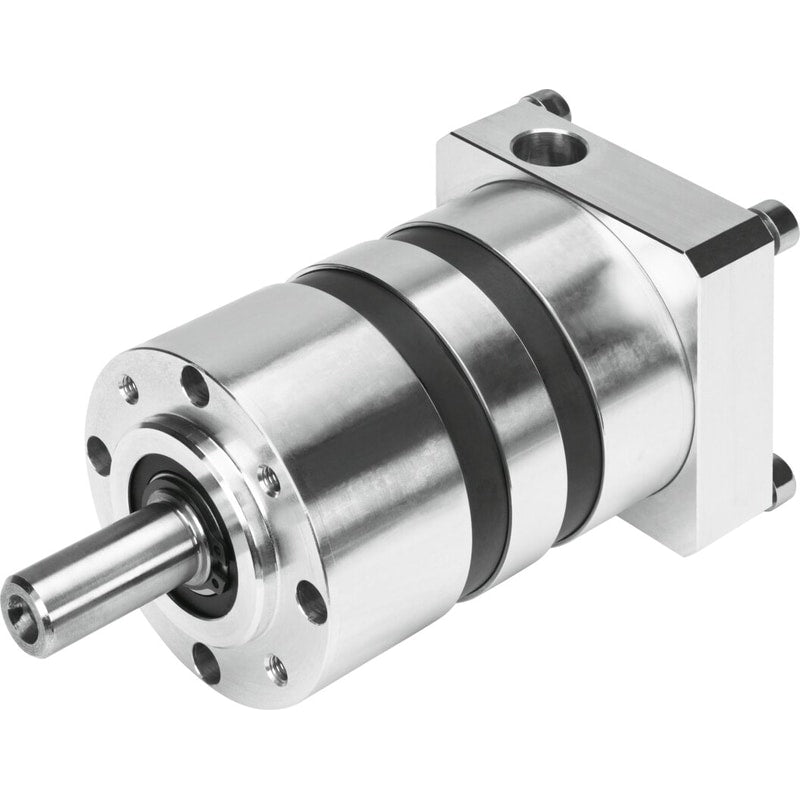

Gearbox
EMGC-60-P-G4-SEC-67
8000613
GTIN 4052568276669
Vendor Festo
Regular price
$542.07
Unit price
EMGC-60-P-G4-SEC-67 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGC-60-P-G4-SEC-67
Regular price
$542.07
Unit price
EMGC-60-P-G4-SEC-67 is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 60 mm |
|---|---|
| Motor flange size | 67 mm |
| Torsional backlash | 0.5 deg |
| Type code | EMGC |
| Gearbox type | Planetary gear |
| Gear ratio | 0.167361111111111 |
| Max. actuator speed | 6000 1/min |
| Gearbox operating temperature | -20 °C ... 90 °C |
| Degree of protection | IP54 |
| Continuous output torque | 26 Nm |
| Mass moment of inertia, gearbox | 0.34 kgcm² |
| Max. output torque | 44 Nm |
| Max. efficiency | 0.94 |
| Torsional rigidity | 2.4 Nm/arcmin |
| Product weight | 900 g |
| Interface code, motor out | 60H |
| Interface code, motor in | 67A |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
